Section 2. Installation
7
MOUNTING
The standard orientation of the Reader is with the larger guide up as shown in Figure 2-3. The
position shown offers the best protection for the heads from moisture, dust, or foreign particles.
In both models, connector J3 is wired to the head that is on the same side as the PCB. Connector
J2 is wired to the head that is opposite the PCB. The magnetic stripe must be inserted in the
Large Guide but may be facing in either direction.

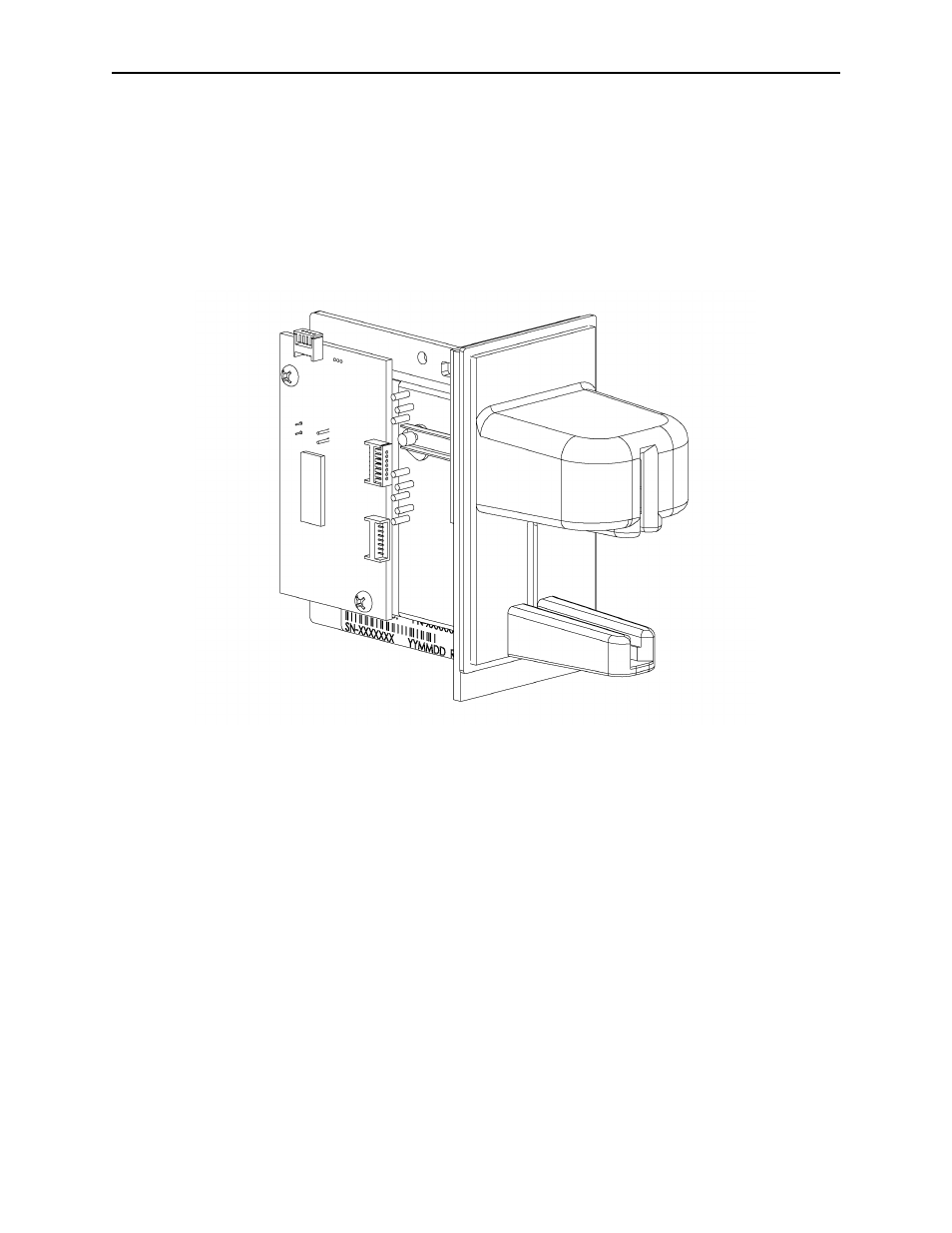

Figure 2-3. MagTek Bezel Mounting Position
OPTIONAL MOUNTING BRACKET
In applications where moisture-intrusion is a concern, it is recommended that the reader be
mounted with a 4
o
- 5
o
downward angle with respect to the horizontal plane. This will allow
gravity to drain away any excess moisture that may have entered into the Card Reader slot.
For more information about the mounting bracket kit (21064519) that can be used to tip the
reader forward, contact your MagTek salesperson.
