Page

7

MNVCCBZ_0828

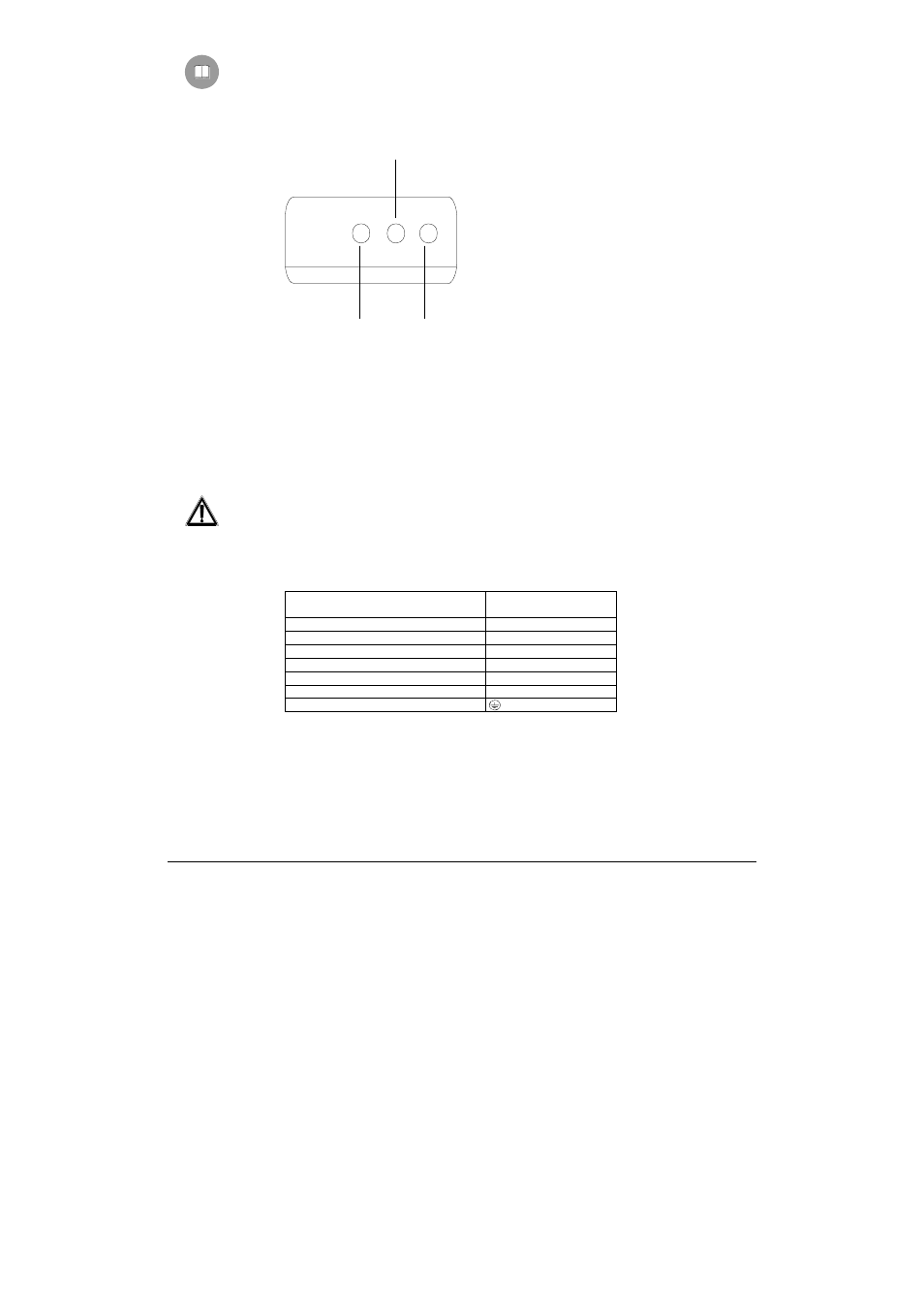

Connectors

At the rear of the mechanics the CBZ220/CBZ24 keyboard features one protection fuse and 3 connection

cables for power supply, pan & tilt and zoom lens (this last cable is present only in the CBZ220/CBZ24 keyboard):

7-wire cable for
pan & tilt
connection

3-wire cable for
power supply
connection

Connection of the CBZ220/CBZ24 keyboard to peripheral units

The connection of the CBZ220/CBZ24 keyboard to the peripheral units presents the following phases:

• Connection of the keyboard to pan & tilt motor
• Connection of the keyboard to zoom lens
• Connection of power supply cables

Connection of the CBZ220/CBZ24 keyboard to pan & tilt motor

WARNING: before the connection, make sure that the output voltage of the CBZ220/CBZ24 keyboard

corresponds to pan & tilt voltage (Refer to the identification data of the keyboard and pan & tilt motor).

Where to operate: output cable for pan & tilt connection
Settings: connect the wires to pan & tilt motor according to the following table:

Output wires from CBZ220/CBZ24

Connection to pan & tilt

WHITE

Common

BROWN

Down

YELLOW

Up

GREY

Right

PINK

Left

GREEN

Automatic

YELLOW/GREEN

6-wire cable for zoom lens connection
