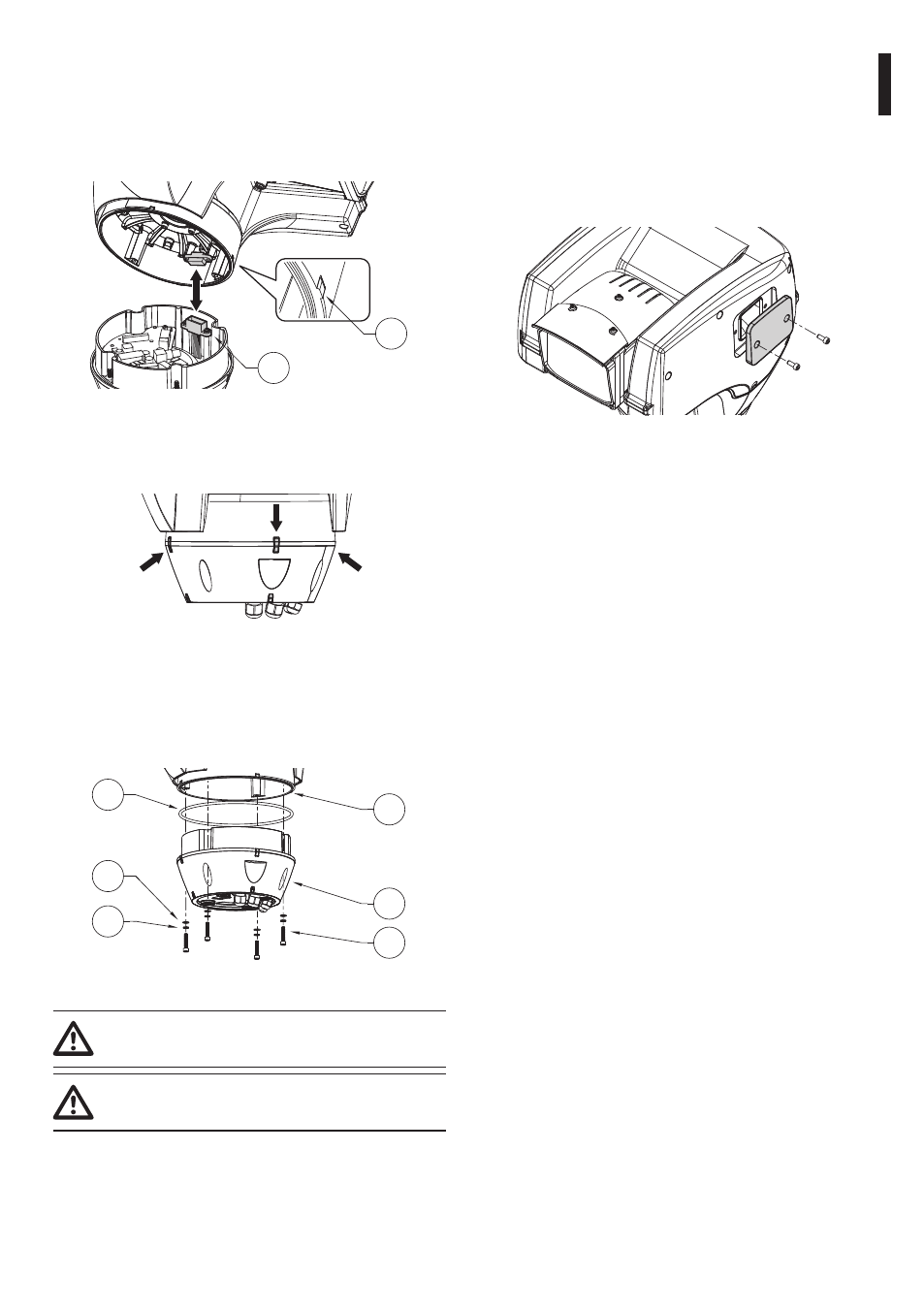

6.1.5 Fixing the top unit

Point the self-centering connector (01) of the upper

unit. Point the side set (02) so that it faces the frontal

vision of the camera. Position the upper part on the

base in the same direction shown in the figure.

Fig. 13

The side sets on the base and on the upper unit are

thus aligned in the only possible position.

Fig. 14

Fasten the upper unit (01) to the base (02) by means

of the fastening screws (03), the notched washers (04)

and the flat washers (05). Make sure that the base

gasket is in position and in good state (06).

Fig. 15

Apply a Loctite 243® type thread-locker on

the holes of the screws.

Pay attention to the fixing. Tightening

torque: 4Nm max.

6.2 Hardware configuration

6.2.1 Opening the configuration door

Before powering the device it must be configured

correctly by setting the dip-switches inside the

configuration hatch. Open the hatch by undoing the

screws as shown in figure.

Fig. 16
