Y SERIES EXA100 USER GUIDE www.teledex.com 15

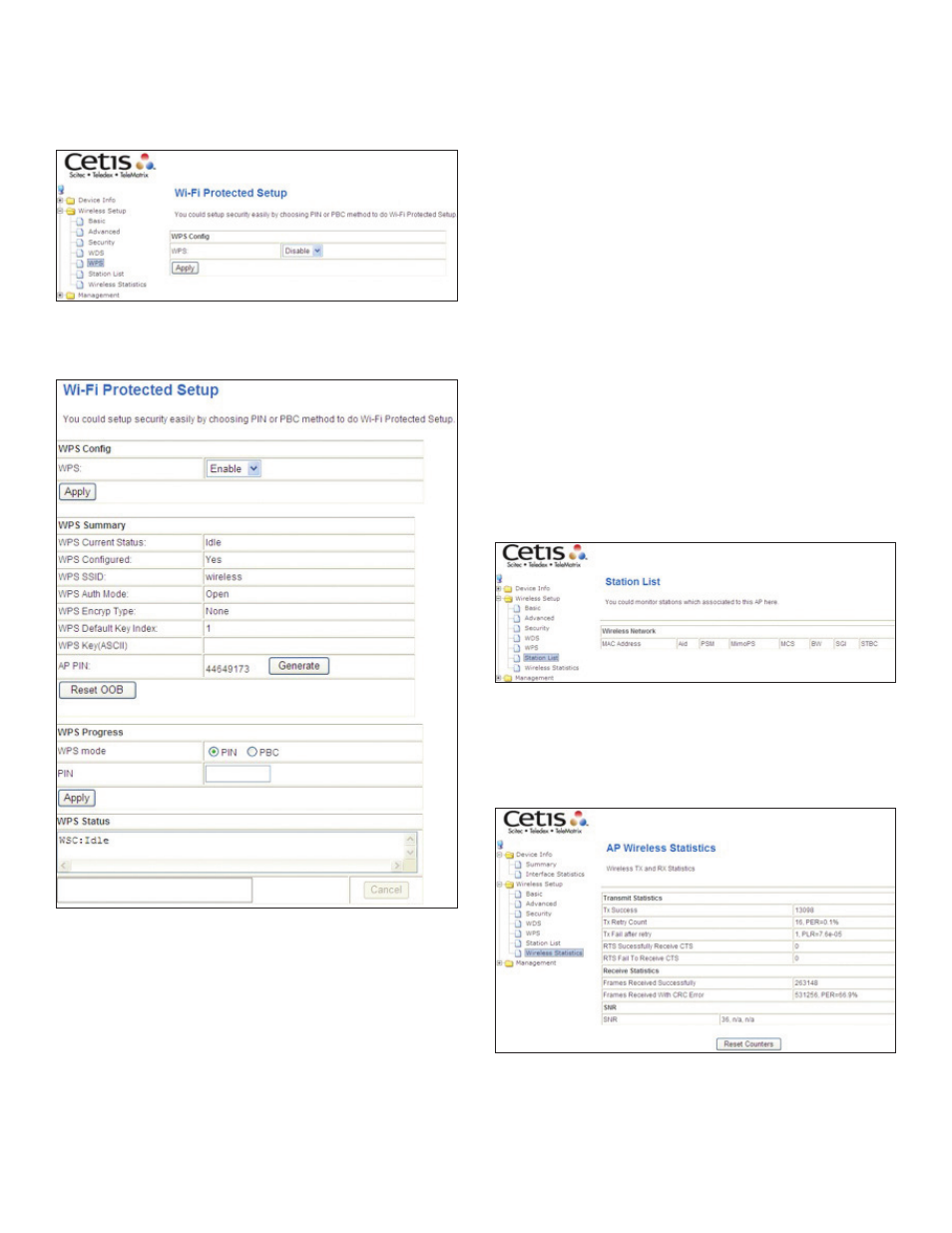

5.5 WPS
You can enable or disable the WPS function on
this page.
Select Enable from the WPS drop-down list. Click
Apply and the following page will be displayed.
5.5.1 WPS SUMMARY
It displays the WPS information, such as WPS
Current Status, WPS Configured, and WPS SSID.
Reset OOB: Reset to out of box (OoB) configuration.
5.5.2 WPS PROGRESS
WPS Mode: There are two ways for you to enable
the WPS function:
PIN, PBC. You can use a push
button configuration (PBC) on the Wi-Fi router. If
there is no button, input a 4- or 8-digit PIN code.
Each STA supporting WPS comes with a hard-
coded PIN code.
PIN: If you select PIN mode, you need to input the
PIN number in the field.
5.5.3 WPS STATUS
It displays the information about WPS status.
5.6 Station List
On this page, you can easily identify the connected
wireless stations. It automatically observes the
ID of the connected wireless station (if specified),
MAC address, SSID, and current status.
5.7 AP Wireless Statistics
This page displays the Wireless Statistics (both
Transmit and Receive) of the EXA100.
