E SERIES ANALOG USER GUIDE
www.teledex.com
7

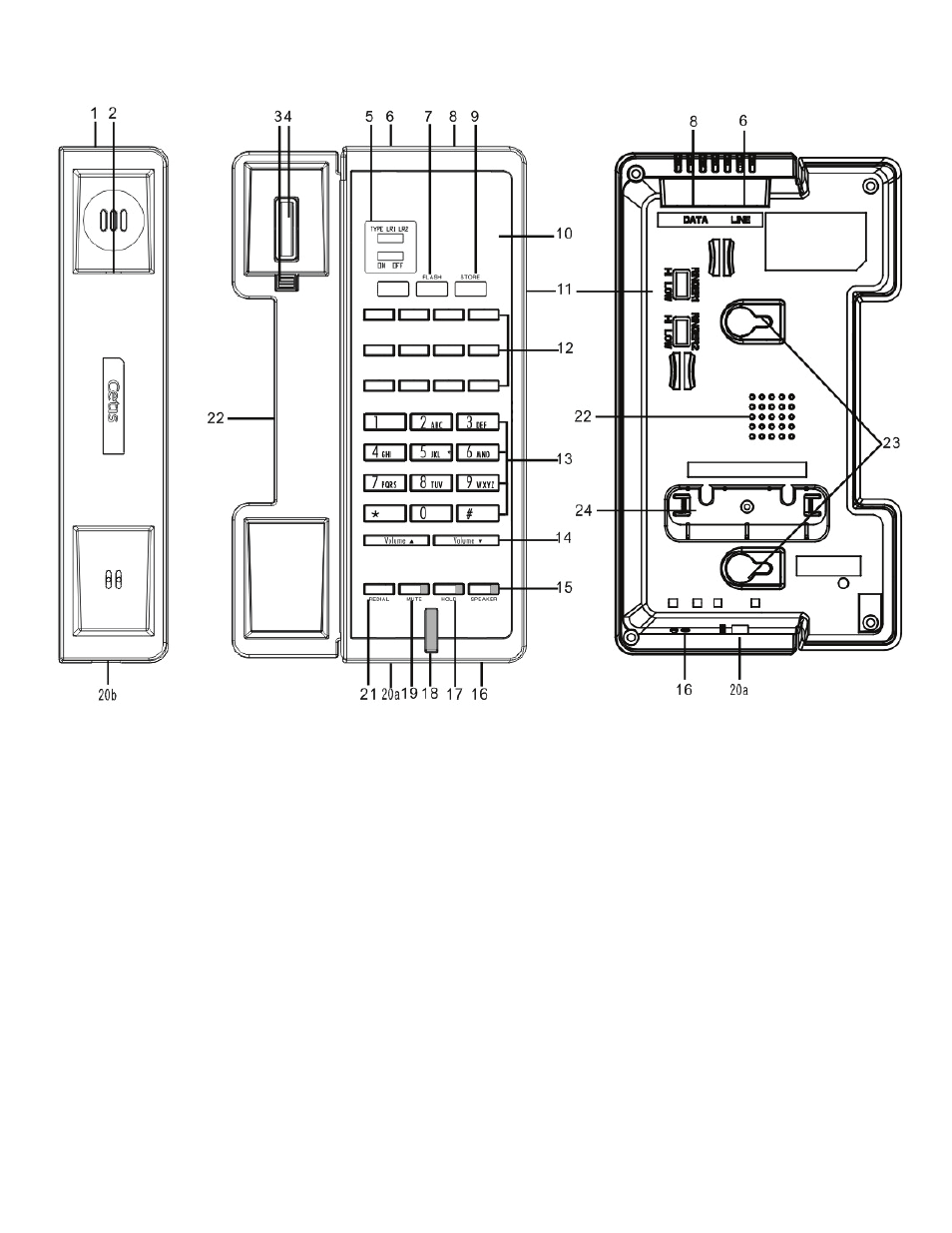

E100 and E100TRM Phone Map
!
BASE FEATURES AND CONTROLS
1. Handset
2. Wall mount clip slot
3. Wall mount handset clip
4. Actuator for hookswitch
5. Message Waiting Indicator (MWI) switches
(submerged)
6. RJ-11 line input
7. Flash key (submerged)
8. RJ-11 data port
9. Store key (submerged)
10. Paper faceplate/Plastic overlay
11. Ringer Volume switch
12. 4, 8, 12, or 0 Memory keys
13. Dialpad
14. Volume s (increase) and Volume t
(decrease) keys
15. Speaker key
16. Microphone
17. Hold key
18. Message Waiting Indicator (MWI) light
19. Mute key
20. a/b. Handset coil cord receptacles
21. Redial key/Pause key
22. Speaker—half duplex
23. Wall mount bracket
24. Desk mount bracket
