10 www.teledex.com E SERIES ANALOG USER GUIDE

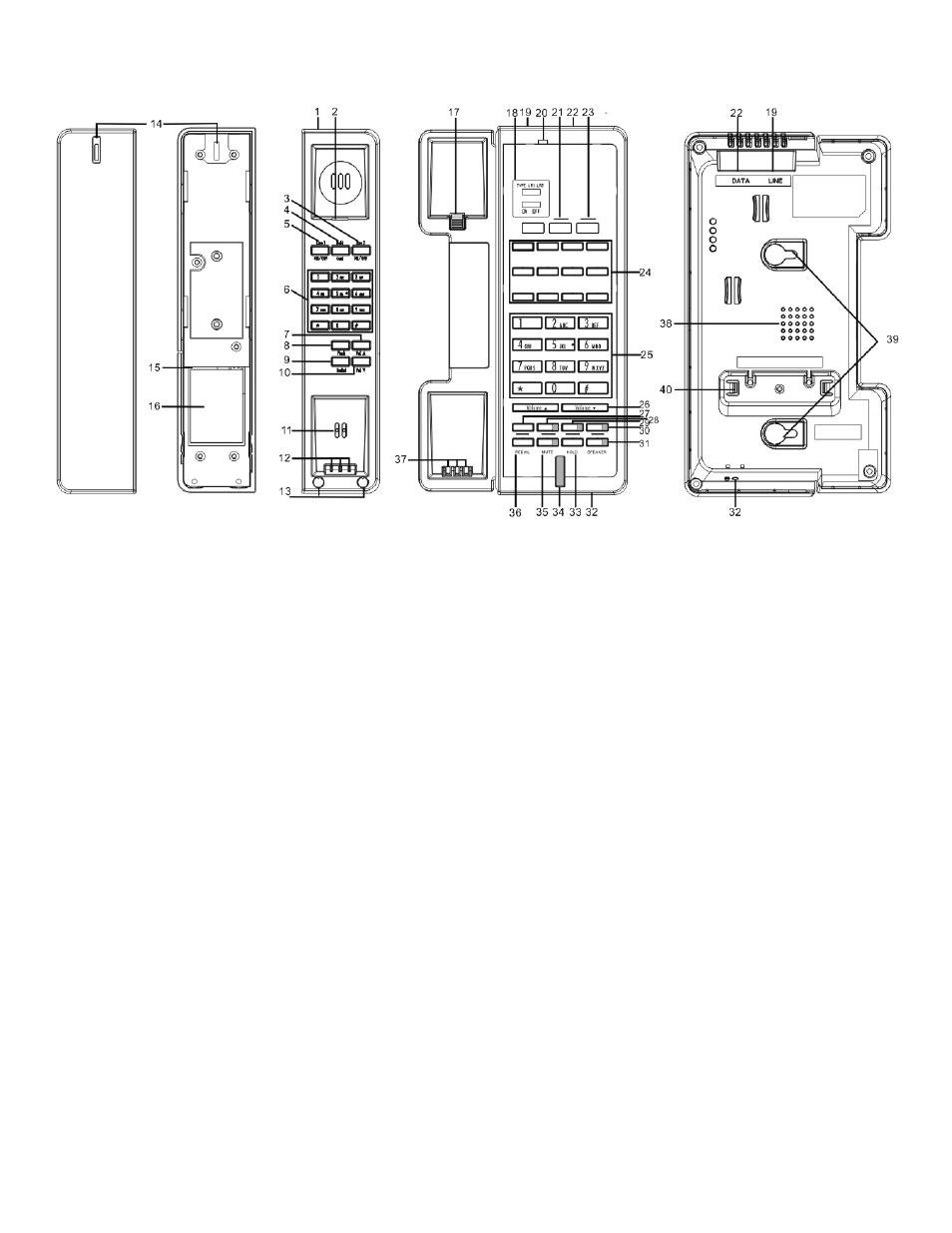

E203 and E203 RediDock Phone Map
!
BASE FEATURES AND CONTROLS
1. Cordless handset
2. Wall mount clip slot
3. Line 2 On/Off key
4. Hold/Conf key
5. Line 1 On/Off key
6. Handset dialpad
7. Handset Volume s (increase)
8. Flash key (handset)
9. Redial key (handset)
10. Handset Volume t (decrease)
11. Microphone (handset)
12. Charging leads (handset)
13. Screws for battery access
14. Handset Message Waiting/Ringing
indicator/Speaker key
15. Battery tray (handset)
16. Battery (handset)
17. Wall mount handset clip
18. Message Waiting Indicator switches
(submerged)
19. RJ-11 line input
20. Paper faceplate/Plastic overlay
21. Store key (submerged)
22. RJ-11 data port
23. Flash key (submerged)
24. 4, 8, 12, or 0 Memory keys
25. Dial pad
26. Volume s (increase) and Volume t
(decrease) keys
27. Page key
28. Line 1 key
29. Line 2 key
30. Conf key
31. Speaker key
32. Microphone (base)
33. Hold Key (base)
34. OneTouch message retrieval key
35. Mute key (base)
36. Redial key (base)
37. Charging leads (base)
38. Speaker—half duplex (base)
39. Wall mount bracket
40. Desk mount bracket
