P.CONT
REMOTE CONT
REMOTE INPUT
STEERING WHEEL
ANT.
CONT
MUTE
L R
L R
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8

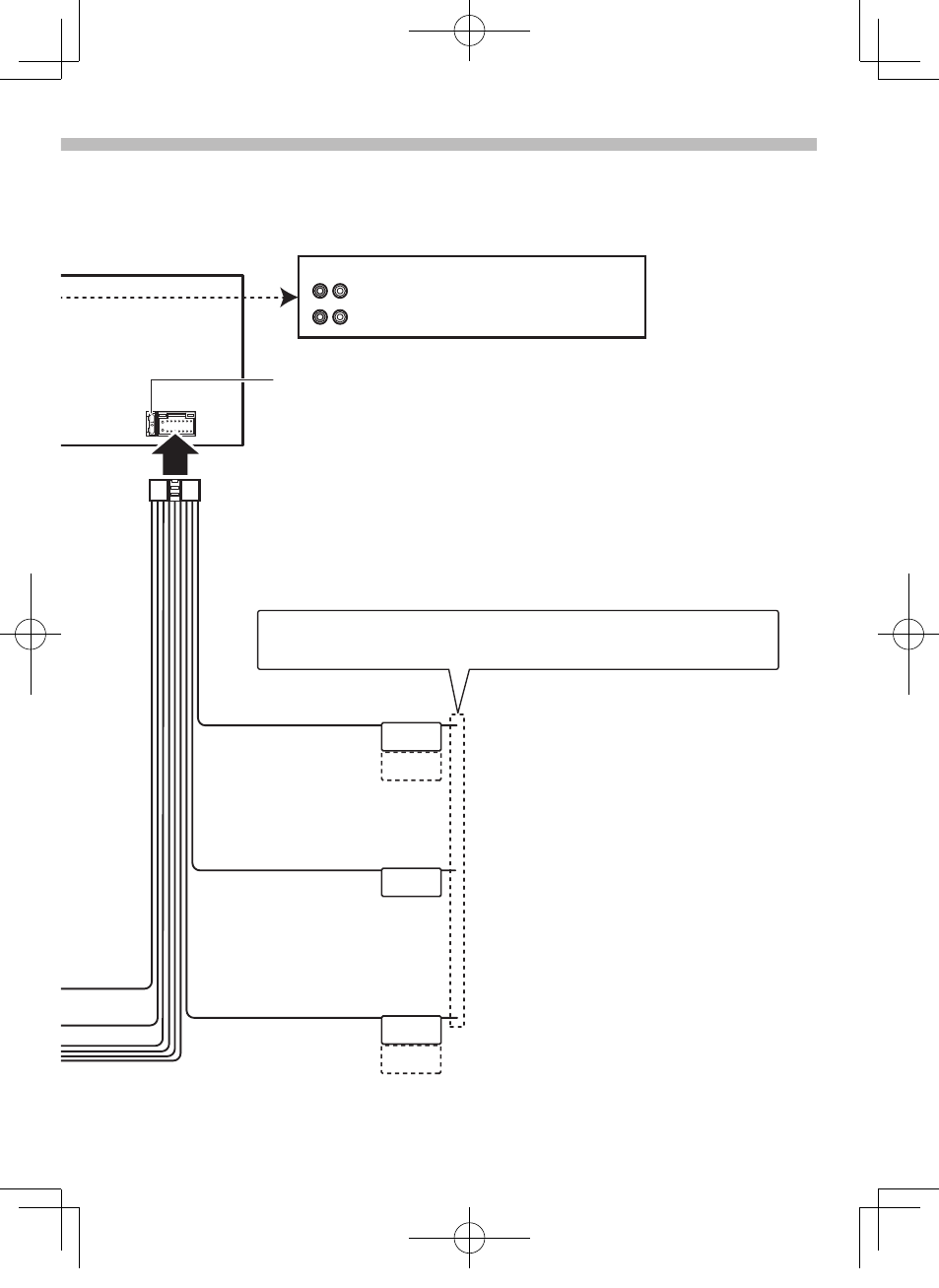

Connecting Wires to Terminals
FM/AM antenna input (JASO)
Front output
Fuse (10A)
Rear output/ Sub Woofer output
Wiring harness
(Accessory1)
If no connections are made, do not let the wire come out from
the tab.
Brown (Mute control wire)
To use the steering wheel remote control feature,
an exclusive remote adapter (not supplied) that
matches your car is required.
Light Blue/Yellow (Steering
remote control wire)
Connect to the terminal that is grounded when
either the telephone rings or during conversation.
⁄ To connect the Kenwood navigation system,
consult your navigation manual.
Blue/White (Power control/
Antenna control wire)
Connect either to the power control terminal
when using the optional power amplifier, or to
the power terminal for the booster amplifier of the
film-type or short pole type antenna.
