Installation

Installation of KOS-D210
— Display Stand Used —

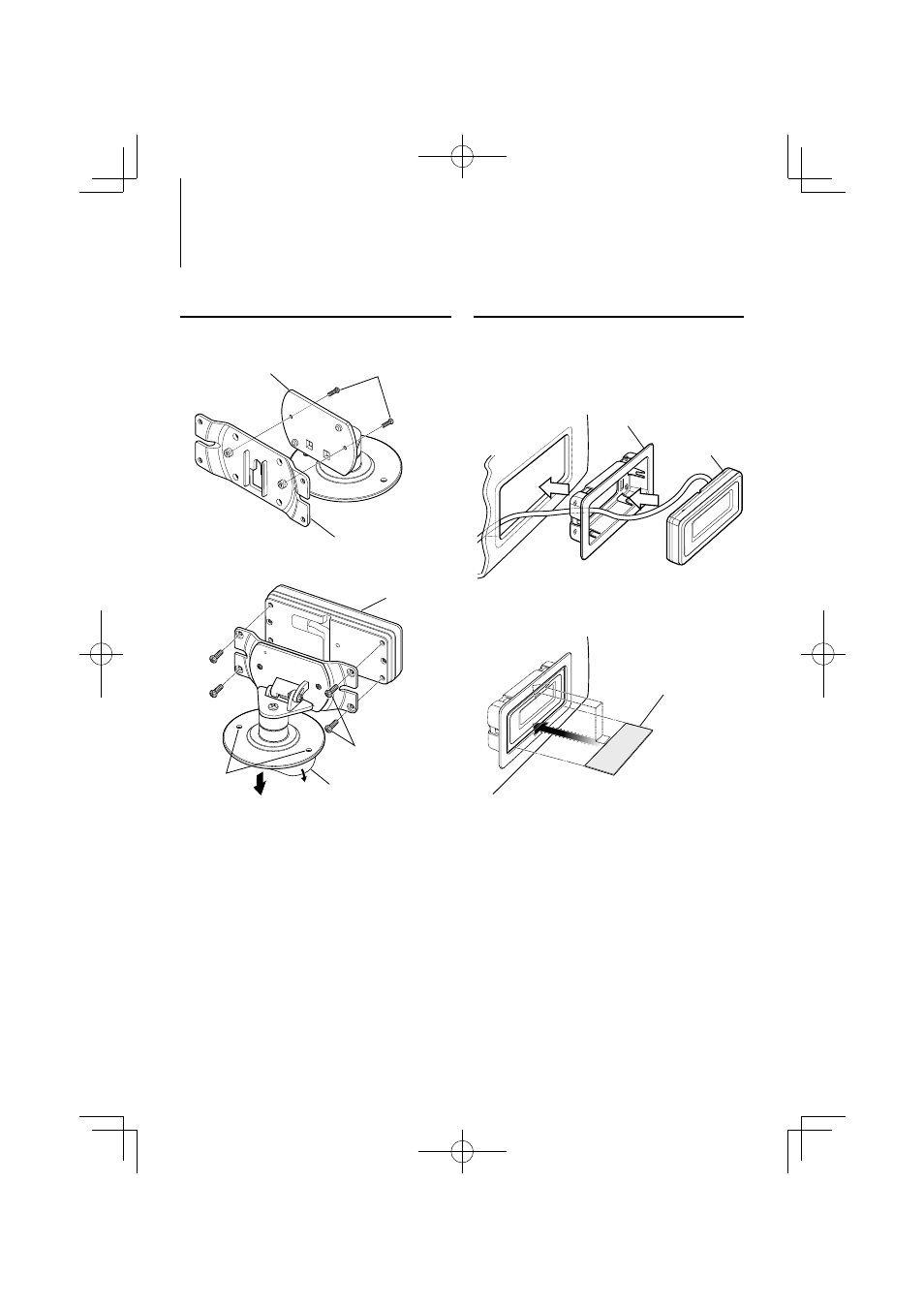

Install the display bracket (Accessory #) to the

display stand (Accessory $).

Accessory$

Accessory#

Accessory*
(Ø3 x 8)

Install the KOS-D210 to the display bracket

(Accessory #).

Accessory*
(Ø3 x 8)

Release coated paper

Screw hole

KOS-D210

Remove the coated paper from the display stand

(Accessory $), and paste it on the mounting
surface.
Install the display unit using the screw holes
illustrated above when it cannot be secured firmly
using the double-sided tape.

Installation of KOS-D210
— Frame Used —

Using the display template (Accessory %), drill a

hole on the KOS-D210 installation position.

Install the display frame (Accessory ^) to the

installation hole made in step 1.

Install the KOS-D210 to the display frame

(Accessory ^).

Accessory^

KOS-D210

⁄

• Use Removal tool (Accessory &) when you remove the

KOS-D210 from the display frame (Accessory ^).

Accessory&
