English 3
Safety precautions
WARNING
To prevent injury or fire, take the following
precautions:
To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools) inside
the unit.
Installation Procedure
1
To prevent short circuits, remove the key from the
ignition and disconnect the terminal of the
battery.
2
Make the proper input and output wire connections
for each unit.
3
Connect the wire on the wiring harness.
4
Connect the wiring harness connector to the unit.
5
Install the unit in your car.
6
Reconnect the terminal of the battery.
7
Press the reset button.
• Mounting and wiring this product requires skills and
experience. For safety’s sake, leave the mounting and wiring
work to professionals.
• Make sure to ground the unit to a negative 12V DC power
supply.
• Do not install the unit in a spot exposed to direct sunlight or
excessive heat or humidity. Also avoid places with too much
dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If
you use the wrong screws, you could damage the unit.
• Make sure that all wire connections are securely made by
inserting jacks until they lock completely.
• If your vehicle’s ignition does not have an ACC position, or
if the ignition wire is connected to a power source with
constant voltage such as a battery wire, the power will not be
linked with the ignition (i.e., it will not turn on and off along
with the ignition). If you want to link the unit’s power with
the ignition, connect the ignition wire to a power source that
can be turned on and off with the ignition key.
• Use a commercially available conversion connector if the
connector does not fit in the vehicle connector.
• Insulate unconnected wires with vinyl tape or other similar
material. To prevent a short circuit, do not remove the caps
on the ends of the unconnected wires or the terminals.
• If the fuse blows, first make sure the wires aren’t touching to
cause a short circuit, then replace the old fuse with one with
the same rating.
• After the unit is installed, check whether the brake lamps,
blinkers, wipers, etc. on the car are working properly.

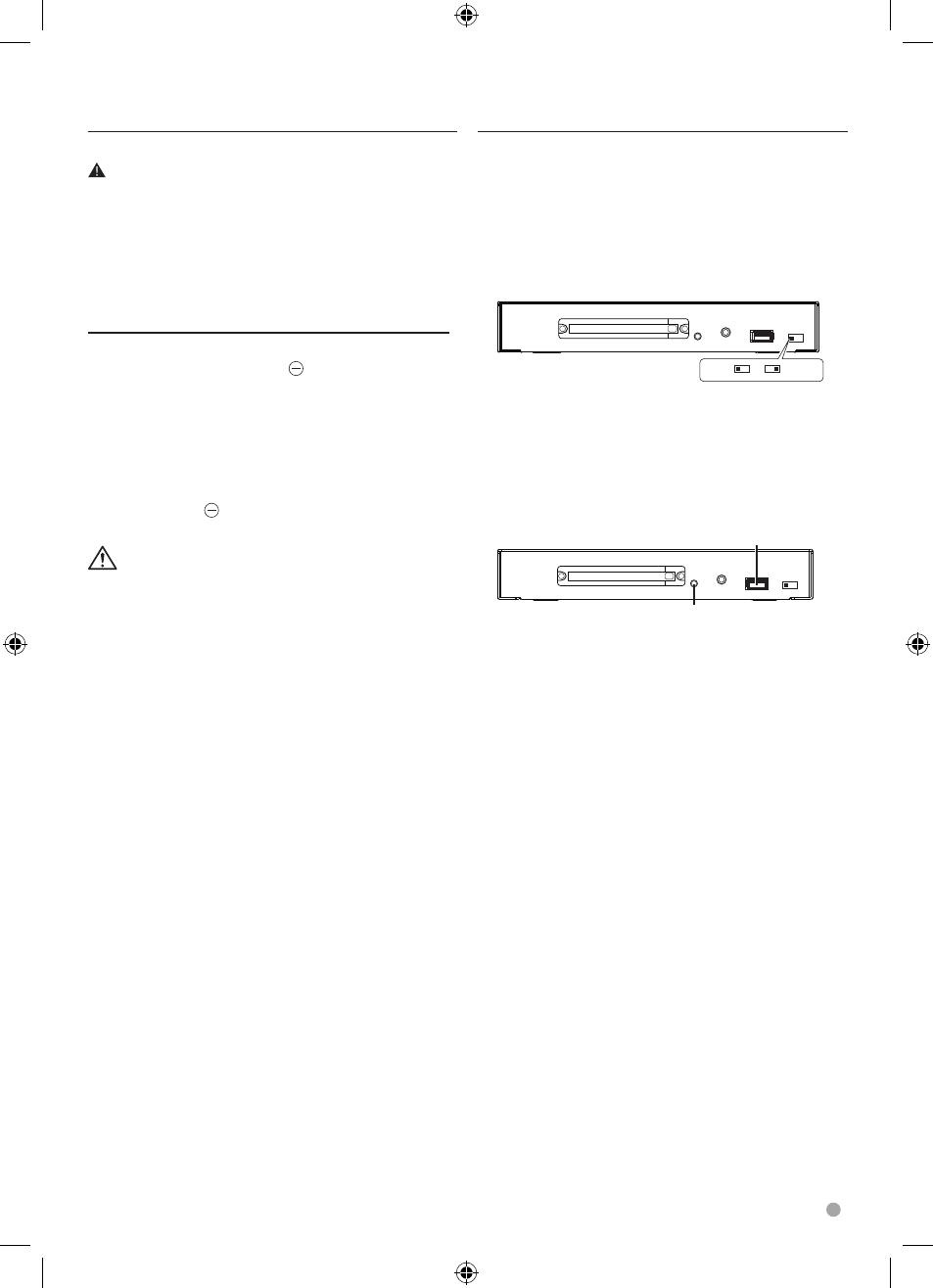

To select TV Type (PAL or NTSC)
The TV picture display can be divided roughly into
two TV formats (PAL and NTSC). They are variable
depending on countries and areas. This unit has a
function for changing the video format according
to the TV type. Please confirm to set the Type switch
according to the type of your TV type.
NTSC PAL
Change NTSC/PAL setting only when the device is
turned off.
How to reset your unit
If the unit fails to operate properly, press the Reset
button.
It is used for the purpose of software update.
Reset button
Notes
