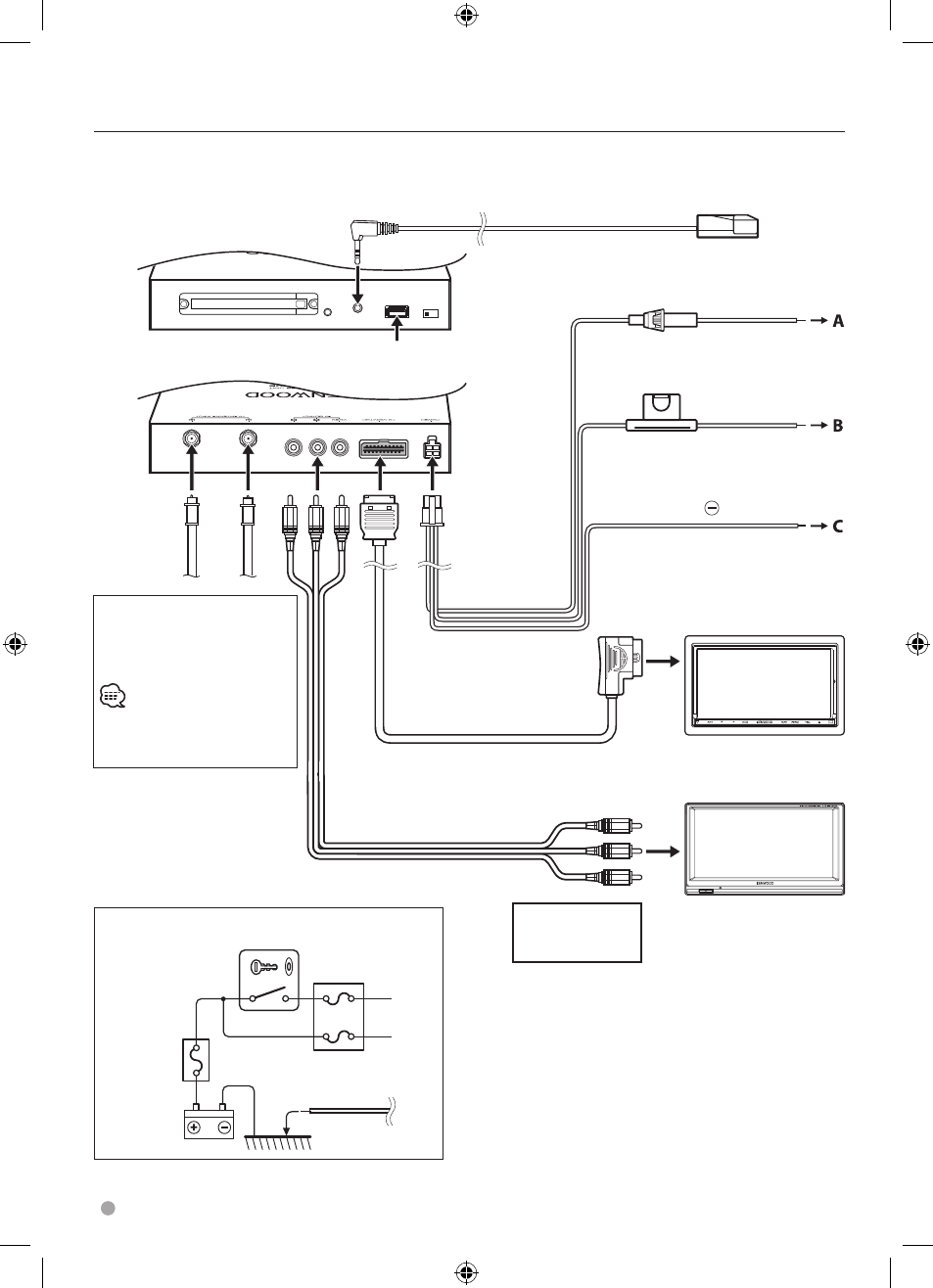

18 KTC-D600E
B
C
A
Ignition key switch
ACC
Car fuse box
Car fuse box
(Main fuse)
Battery
To AV input of the monitor
Fuse (5A)
Fuse (1A)
Ground wire (Black) (To car chassis)
Battery wire (Yellow)
Ignition wire (Red)
To the Monitor unit such as a
DVD receiver.
Wiring harness 
TV Interface Cable 
Digital TV Tuner
Connection
Remoto control sensor 
AV Cable (Commercially available)
• 75Ω/ F connector
• For VHF/UHF
Up to 2 antennas can be
connected to the antenna
sockets “ANT A” and “ANT B”.
Set "Active Antenna DC" is
"Enable" (DC5V ON) when active
antenna is used.
GND
VIDEO: Yellow
AUDIO (L): White
AUDIO (R): Red
It is used for updating the software.
