TV tuner
Input Frequency
VHF : 174 – 230 MHz
UHF : 470 – 862 MHz
Demodulation Type
: QPSK/ 64QAM/ 16QAM
Channel Bandwidth
: 7/ 8 MHz
FFT Size
: 2K and 8K
Guard Interval
: 1/4, 1/8, 1/16, 1/32
Puncture Rate
: 1/2, 2/3, 3/4, 5/6, 7/8
Antenna input
: 2-ch Diversity
Connector Type
: F Type × 2
General
Operating Voltage (10.5-16V)
: 14.4 V
Current Consumption
: 400 mA
Dimensions (W × D × H) (Main unit)
: 188 Ч 144 Ч 30 mm
Operational temperature range
: -10°C ~ +60 °C
Storage temperature range
: -30°C ~ +85 °C
Weight
: 0.9 kg

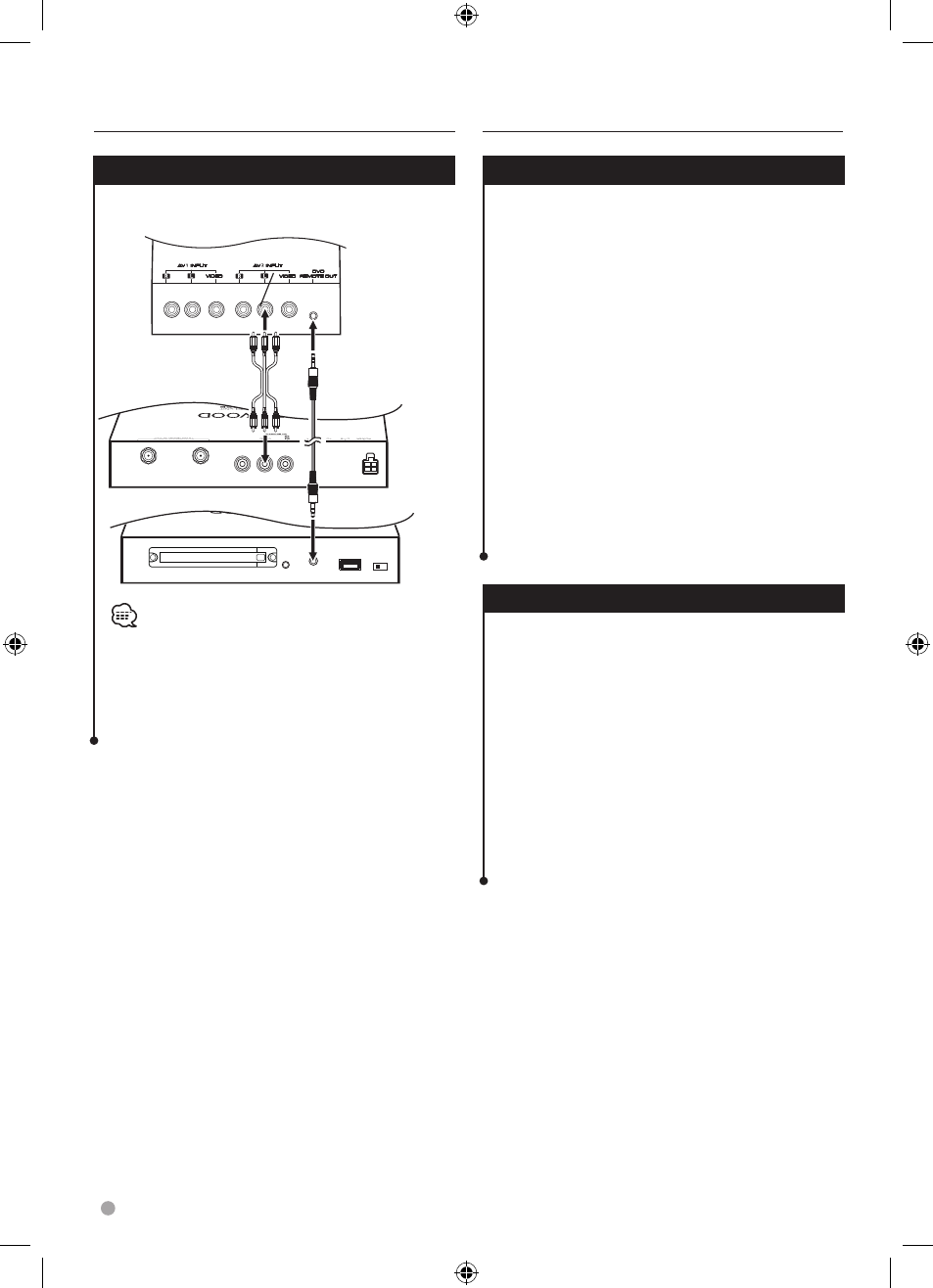

System Connection with LZ-612IR
LZ-612IR Hideway Unit
Remote Control Cable
• Connect the audio/video output of KTC-D600E to “AV2
INPUT” of LZ-612IR.
• Use the remote control cable of LZ-612IR to connect the
remote input terminal of KTC-D600E and “DVD Remote
Out” terminal of LZ-612IR.
Specifications LZ-612IR Connection
