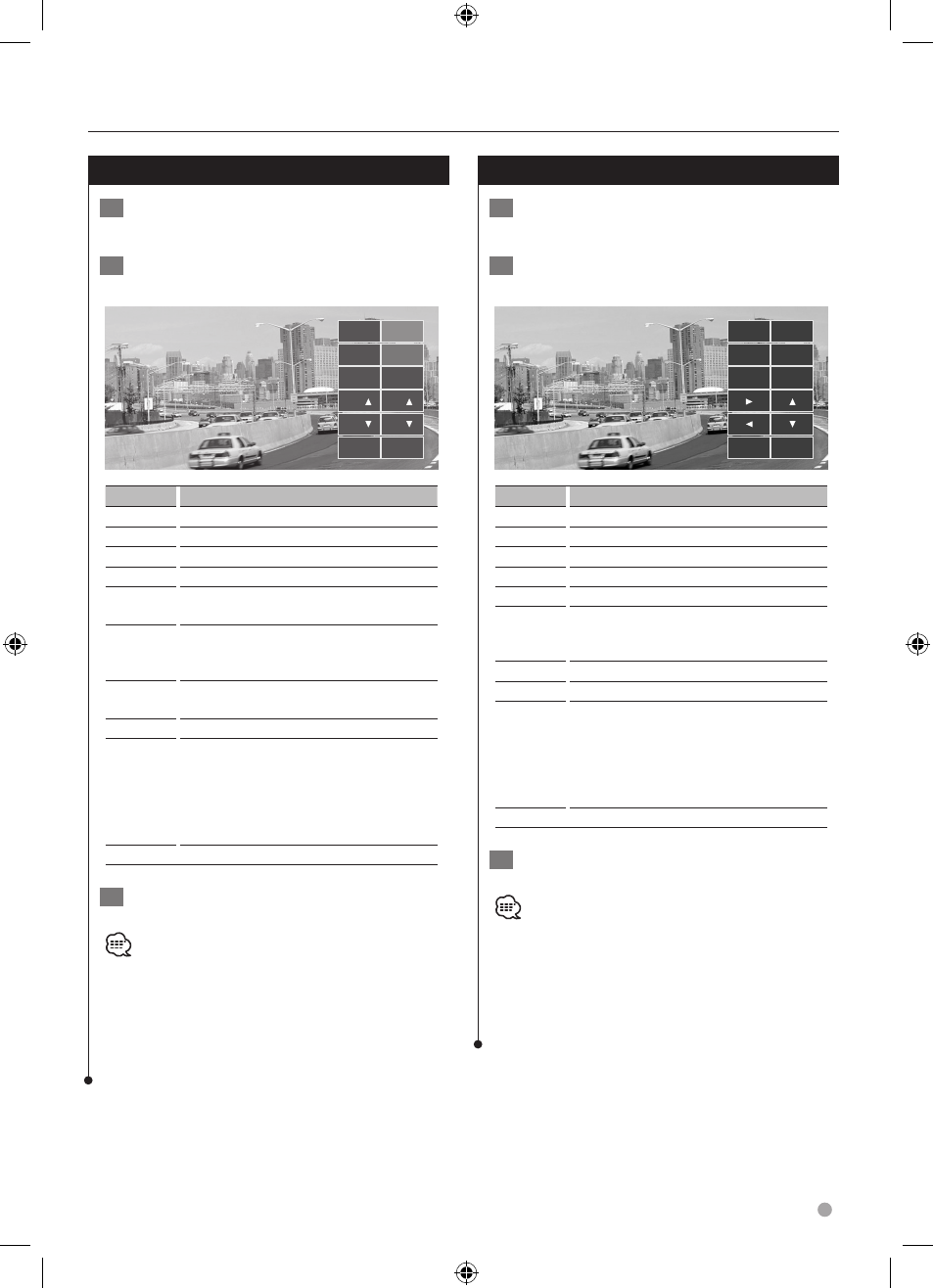

English 19

LZ-612IR Operation

LZ-612IR Setup1

1

Enter Select screen mode

Touch the display window.

2

Select the function

Touch the function button.

ENT

MENU

AVIN

INFO

RTN

PAGE

PWR

MUTE

VOL

VOL

CH

CH

Display

Function

PAGE

Move to the DVB-T Tuner unit Setup Screen 2.

MENU

Move to Monitor Setting screen .

PWR

To turn on and off this unit.

AVIN

Change AV1 / AV2 input source.

MUTE

Mutes the sound.

Volume mute only works in TV/Radio mode.

INFO

To show the carrier information of the currently

selected station (toggle between pages in menu

using

/

/

/

).

VOL

/VOL

To adjust volume. Volume mute only works in TV/

Radio mode.

CH

/CH

Changes channels (channel up, channel down).

RTN

a. Return to the previous menu in menu screen or

escape from menu.

b. Return to normal TV mode from a menu.

Repeated pressing will take you through all opened

menus until normal TV mode is reached.

c. Returns to the channel you were watching previously.

ENT

Verifies input.

3

Exit DVB-T Tuner unit Control mode

Touch the screen except function button.

• The relevant OSD is displayed only when the DVB-T

Control in (page 7 In LZ-612IR Manual) is
turned on.

• You can operate the Kenwood DVB-T Tuner unit

connected to the Hideaway box when the DVB-T Control
is turned on.

LZ-612IR Setup2

1

Enter Select screen mode

Touch the display window.

2

Select the function

Touch the function button.

ENT

EPG

CH.L

SEEK

RTN

PAGE

TV.M

TV/R

Display

Function

PAGE

Move to the DVB-T Tuner unit Setup Screen 1.

EPG

Opens the Electronic Program Guide.

TV.M

Press once to enter TV Setting Menu.

CH.L

Opens the channels list.

TV/R

TV/radio mode.

SEEK

Searches the network for available channels.

Short - Manual Search

long - Automatic Search

/

Toggles between menu items (up/down).

/

Toggles between menu items (left/right).

RTN

a. Return to the previous menu in menu screen or

escape from menu.

b. Return to normal TV mode from a menu.

Repeated pressing will take you through all opened

menus until normal TV mode is reached.

c. Returns to the channel you were watching previously.

ENT

Verifies input.

3

Exit DVB-T Tuner unit Control mode

Touch the screen except function button.

• The relevant OSD is displayed only when the DVB-T

Control in (page 7 In LZ-612IR Manual) is
turned on.

• You can operate the Kenwood DVB-T Tuner unit

connected to the Hideaway box when the DVB-T Control
is turned on.
