Page 2 of 2 — DN-6040:A2 • 10/18/2012
NOTIFIER® is a registered trademark of Honeywell International Inc.
©2012 by Honeywell International Inc. All rights reserved. Unauthorized use
of this document is strictly prohibited.
This document is not intended to be used for installation purposes.
We try to keep our product information up-to-date and accurate.
We cannot cover all specific applications or anticipate all requirements.
All specifications are subject to change without notice.
For more information, contact Notifier. Phone: (203) 484-7161, FAX: (203) 484-7118.
www.notifier.com
Made in the U.S. A.
NOTE: When 100 AH batteries are required, a NFS-LBB is
required to mount each 100 AH battery. The CHG-120 can mount
in either the CAB-4 Series backbox or in a third NFS-LBB in this
configuration.
Product Line Information
CHG-120: Battery charger circuit board and mounting chassis.
Includes mounting hardware and installation instructions.
BAT-12260: 26 AH, 12-volt, sealed lead-acid battery. Order as
bulk pack BAT-12260-BP, contains two. See data sheet DN-
6933.
BAT-12550: 55 AH, 12-volt, sealed lead-acid battery. See data
sheet DN-6933.
BAT-121000: 100 AH, 12-volt, sealed lead-acid battery. See
data sheet DN-6933.
NFS-LBB: Battery Backbox — holds up to two BAT-12550 55
AH batteries or one BAT-121000 100 AH battery. Dimensions:
Box: 24.0" (61.0 cm) wide x 14.0" (35.6 cm) high x 7.75" (19.7
cm) deep. Door: 24.125" (61.3 cm) wide x 14.25" (36.2 cm)
high x (door adds 0.063" [approx. 0.16 cm] to depth), black.
NFS-LBBR: Same as NFS-LBB above but painted red.
Compliance with Codes and Standards
The CHG-120 complies with the following standards:
• NFPA 72 National Fire Alarm Code.
• UL 864 Standard for Control Units for Fire Alarm Systems.
• UL 1481 Power Supplies for Fire Alarm Systems.
• CAN/ULC-S527-M87.
Agency Listings and Approvals
The listings and approvals below apply to the basic CHG-120.
In some cases, certain modules may not be listed by certain
approval agencies, or listing may be in process. Consult fac-
tory for latest listing status.
• UL: S674.
• ULC: S635.
• FM: Approved.
• CSFM: 7315-0028:0189.
• MEA: 195-97-E, 345-02-E.
• FDNY: #6114.

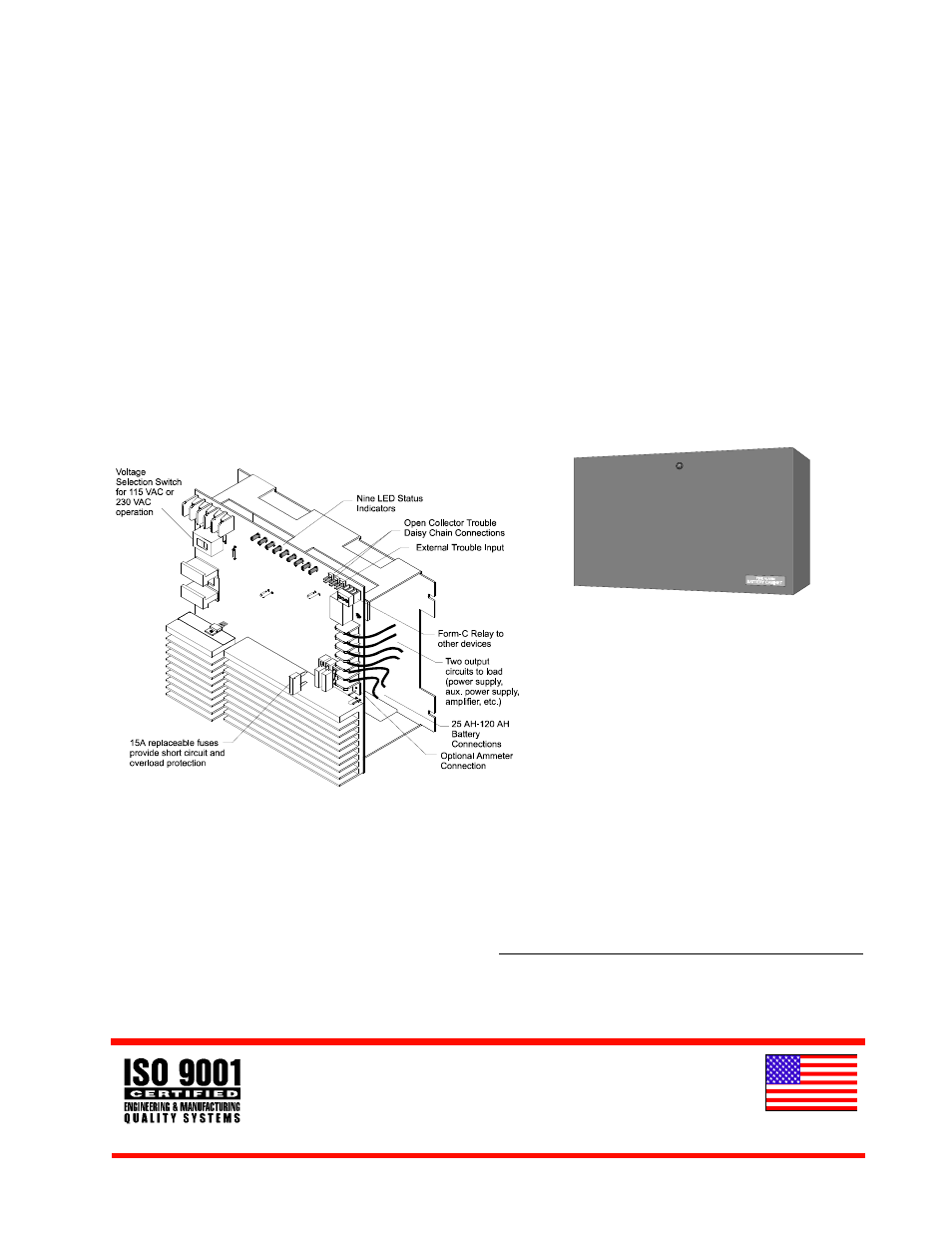

CHG-120 Features
NFS-LBB Battery Backbox
60
40bb
5.wmf
604
0feat
.wmf
