DN-6862:C1 • 8/1/2011 — Page 3 of 4
wide] and an annunciator label. 9.938" (25.24 cm) high x
17.75" (45.09 cm) wide x 2.5" (6.35 cm) deep.
ABF-1DB, ABF-2DB, ABS-4D: The ABF-1DB, ABF-2DB and
ABS-4D are semi-flush-mount backboxes for ACS Series
Annunciators. The ABF-1DB mounts one annunciator module;
the ABF-2DB mounts two modules; the ABS-4D mounts up to
four modules. The ABS-4D Series can also accomodate the
NCA-2 network annunciator, using the NCA-2 Retro Kit (NCA-
2Retro); the NCA-2 is mounted in the center position with a
blank plate (BMP-1) mounted on each side. Black with an
attracted smoked glass door and keylock. The ABS-4D is
hinged on the bottom for stability.
•
DIMENSIONS, ABF-1DB: Box only: 9.938" (25.24 cm)
high x 4.625" (11.75 cm) wide x 2.5" (6.35 cm) deep. Door:
11" (27.94 cm) high x 6" (15.24 cm) wide x 0.75" (1.9 cm)
deep.
• DIMENSIONS, ABF-2DB: Box only: 9.938" (25.24 cm)
high x 9.188" (23.34 cm) wide x 3.75" (9.525 cm) deep.
Door:
11" (27.94 cm) high x 10.375" (26.35 cm) wide x
0.75" (1.9 cm) deep.
• DIMENSIONS, ABS-4D: Box only: 11.97" (30.40 cm) high
x 19.87" (50.47cm) wide x 3.50" (8.89 cm) deep. Door:
11.97" (30.40 cm) high x 19.87" (50.47 cm) wide x 1.25"
(3.18 cm) deep.
ADP-4B: The Annunciator Dress Panel-4B (black) provides for
the cabinet mounting of one to four modules. The ADP-4B
hinge-mounts to the CAB-4 Series cabinet. Modules mount
directly to threaded studs on the dress panel.
DP-DISP: (see figure) The Dress Panel-Display allows one to
four modules to be mounted in the top row of the CAB-4
Series backbox. Modules mount directly to threaded studs on
the DP-DISP.
DP-DISP2: NFS2-640 Dress Panel accomodates up to two
annunciator modules (no expanders).
BMP-1: Annunciator Blank Module is a flat black dress plate
that covers unused module positions in the annunciator back-
box or in the ADP-4B. 8.375" (21.27 cm) high x 4.375" (11.11
cm) wide. Studs for a variety of module mounting options are
available.
AKS-1B
: The Annunciator Key Switch-1B (black) provides
access security for the control switches on the ACM/
AEM-24AT. The key switch kit includes a key and hardware for
mounting to the ABF-1B. Also included is an adhesive-backed
annunciator label for use with the key switch/dress plate
assembly. NOTE: The AKS-1B can only be employed with the
ABS-1TB.
Agency Listings and Approvals
The listings and approvals below apply to the ACM/AEM-24AT
and the ACM/AEM-48A. In some cases, certain modules or
applications may not be listed by certain approval agencies, or
listing may be in process. Consult factory for latest listing sta-
tus.
•
UL: S635
• ULC: S635
• FDNY: COA #6067 (NFS2-640), COA #6065 (NFS2-3030)
• CSFM: 7120-0028:0156, 7165-0028:0243, 7165-
0028:0224
• FM approved

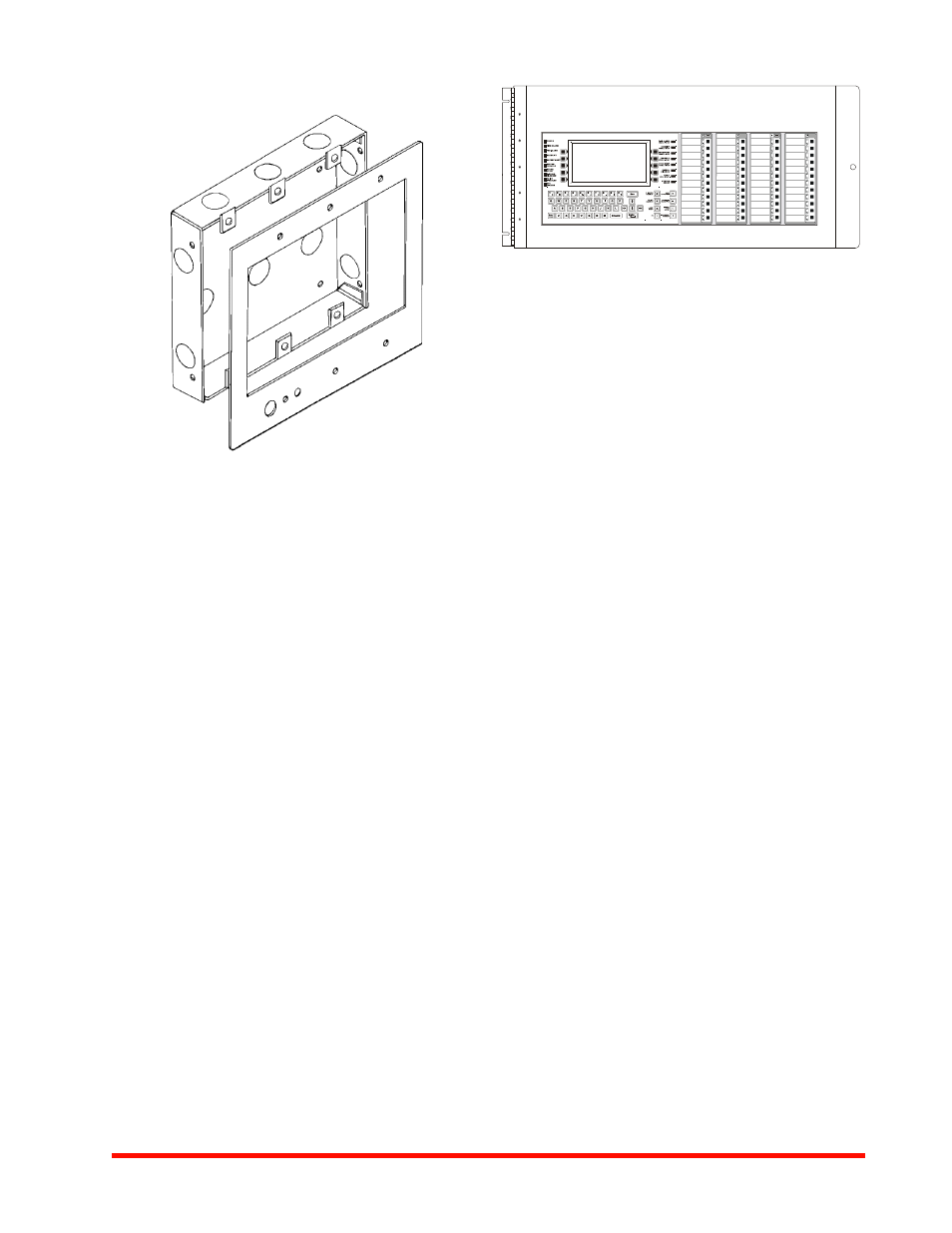

50439d1.tif
ABF-4B
DP-DISP Dress Panel with NCA-2 Network Control
Annunciator in left two positions, and two ACM-24AT
Annunciators at right.
