Ordering Information
WARRANTY: This product is warrantied for a period of 36
months. The PC and monitors are warranted from date of pur-
chase for a period of 36 months. Please refer to NOTIFIER’s
Limited Warranty Policy for additional information.
FIRSTVISION-LCD: ONYX FirstVision™ User Interface soft-
ware and hardware package. Includes 22" LCD touch-screen,
Onboard Ethernet, and USB ports. Also includes one software
license and screen configuration software (FirstVision-SCT).
Does not include backbox, order separately.
FIRSTVISION-ENC: ONYX FirstVision™ backbox enclosure
and door.
Additional required components:
•
NOTI•FIRE•NET Gateway (P/N NFN-GW-EM-3 or NFN-
GW-PC-xx series).
•
NCM-W, NCM-F or HS-NCM/WMF/WSF/MFSF for connec-
tion to NOTI•FIRE•NET™.
•
Standard Ethernet network cable with RJ45 connectors.
•
Standard Ethernet network cable with RJ45 connectors and
hub/switch or Standard Ethernet crossover cable.
•
PC with Windows® 7 Professional and available Ethernet or
USB port (used for programming).
Applications
An ONYX FirstVision™ display is an ideal component of a
NOTIFIER fire system providing real-time fire system status to
firefighters. ONYX FirstVision™ interfaces directly to ONYX
Series control panels and an entire NOTI•FIRE•NET network.

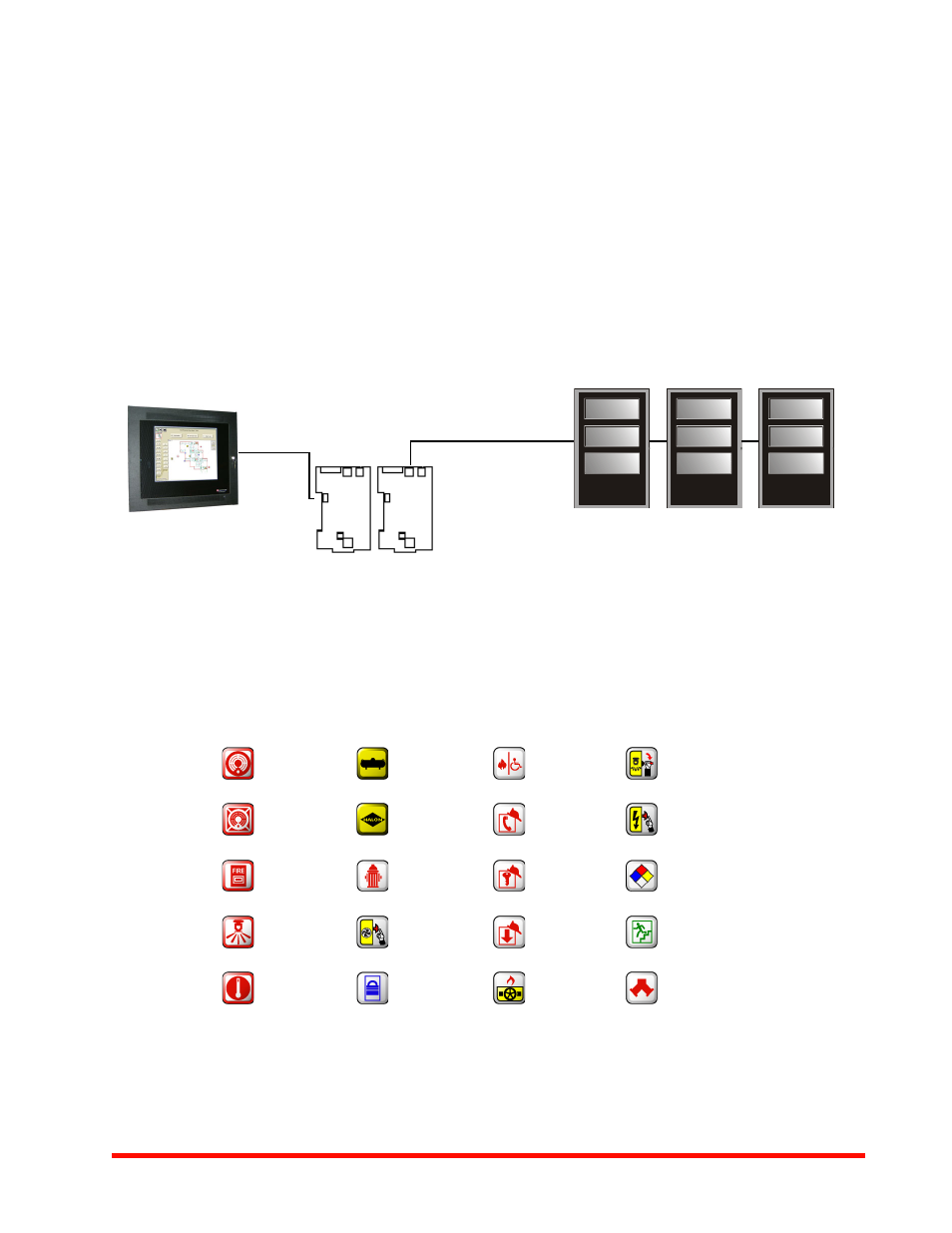

Firefighters’ Display
NOTI•FIRE•NET™
Network version 5.0
(standard or
high-speed)
NFS2-30300
NFS2-640 AM2020/
AFP1010
IP connection
over Ethernet
ONYX FirstVision™
70
51c
ov-
10
.JP
G;
cab
4c
.wmf,
nfn
gw3.b
mp
NFN-GW-EM-3 Network Control
Module
ONYX FirstVision™ Software
NOTE: This is not a complete list of all the icons. The following
icons are a representative sample.
GRAPHICAL ICON KEY
Activated
Smoke
Detector
Gas Tank
Area of
Refuge
Master
Sprinkler
Shutoff
Activated
Duct
Detector
Halon
Fire
Phone
Power
Shutoff
Activated
Pullstation
Hydrant
Fire
Service
Keybox
Room Contains
Hazardous
Materials
Activated
Sprinkler
Device
HVAC
Shutoff
Fire
Service
Display
Stairs
Activated
Heat
Detector
Locked
Door
Gas
Shutoff
Standpipe
