Acknowledge), and Lamp Test may be accomplished through
special key- or push-switches.
Agency Listings and Approvals
These listings and approvals apply to the modules specified in
this document. In some cases, certain modules or applications
may not be listed by certain approval agencies, or listing may
be in process. Consult factory for latest listing status.
•
UL Listed: S635
• ULC Listed: S635
• MEA Listed: 291-61-E Vol. 4 (System 500, LDM-R32);
289-91-E Vol. V (AM2020/AFP1010); 104-93-E (AFP-200);
17-96-E (AFP-300/400); 447-99-E (AFC-600)
• CSFM: 7120-0028:0156, 7165-0028:0224 (NFS-3030,
NFS2-3030); 7170-0028:0223 (NFS-3030, NFS2-3030)
• BSA: 578-81-SA (System 5000, System 500 except
LDM-R32)
• FM Approved
• City of Chicago approved: Class 1, Class 2
• City of Denver approved
• FDNY COA #6085 (NFS2-640); 6065 (NFS2-3030)
Product Line Information
LDM-32: Lamp Driver Module with 32 alarm lamp-driver tran-
sistors (sink to power common on alarm). May be selected
(dip switch) for 16 alarm/circuit on, 16 trouble, and 16 switch
inputs if desired. Also includes system-trouble lamp driver and
lamp-test/local-acknowledge switch input. Integral piezo
sounder sounds for each new alarm or trouble and is silenced
with the Local Acknowledge switch, or permanently disabled
with a dip switch selection. Flash of new alarms or troubles is
selectable through dip switches. 16 switch inputs may be used
for panel SILENCE, RESET, or remote relay control. Instruc-
tions are included.
LDM-E32: Lamp Driver Module with 32 alarm drivers; or 16
alarm, 16 trouble, and 16 switch inputs. One LDM-E32 is
allowed per LDM-32 in alarm-only mode. Three LDM-E32
modules are allowed per LDM-32 in alarm/trouble. Includes
ribbon cable to connect to LDM-32/LDM-E32.
LDM-R32: Lamp Driver Module which connects to any LDM-
32 or LDM-E32 to convert transistor outputs to 32 Form-A dry
contacts (1.0 A @ 30 VDC). Provides 32 output terminal
screw connections and a single common terminal screw.
Includes ribbon cables to connect to the LDM-32/LDM-E32.
Use for electrical isolation when interfacing the system to other
equipment.
LDM-CBL24, LDM-CBL48: Ribbon cable sets to provide
either a 24” (60.96cm) or 48” (121.96cm) connection between
LDM-32/LDM-E32 and LEDs or lamps on a custom graphic
panel. Includes all cables necessary for one LDM-32 or
LDM-E32. Cables have connector on one end only (split, strip,
and connect other end to graphic annunciator).
Architectural/Engineering
Specifications
For specifications on LDM Graphic Annunciator Lamp Driver
Modules, contact NOTIFIER.

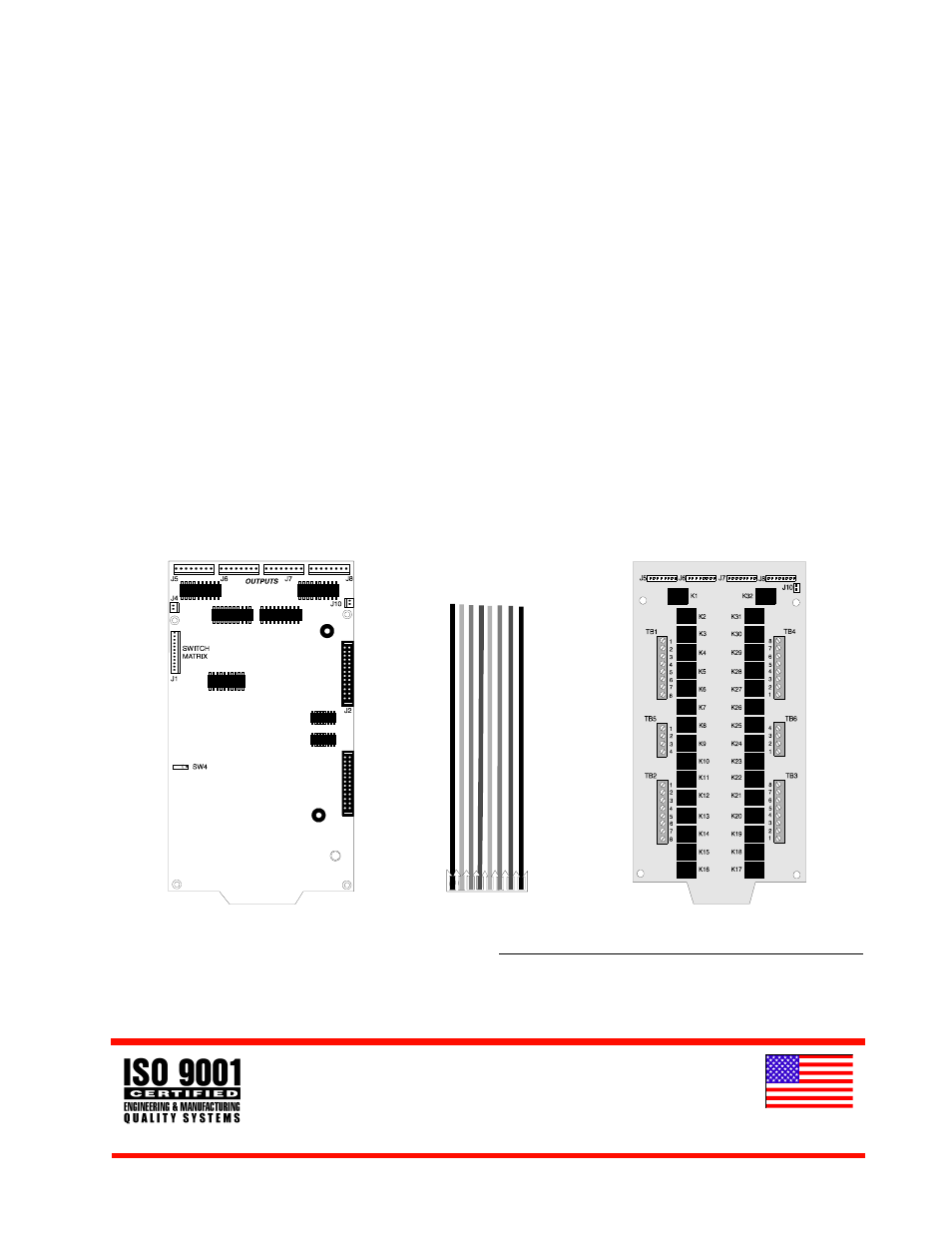

LDM-E32 LDM-R32
LDM-CBL48
LDM-CBL24
