Page 6
2.2 Sidescan/Bathy Wizard Processing
When creating sidescan mosaics or bathymetry grids in Perspective, the processing
wizards allow users to select different options for navigation data.
2.2.1 Sidescan Processing Wizard

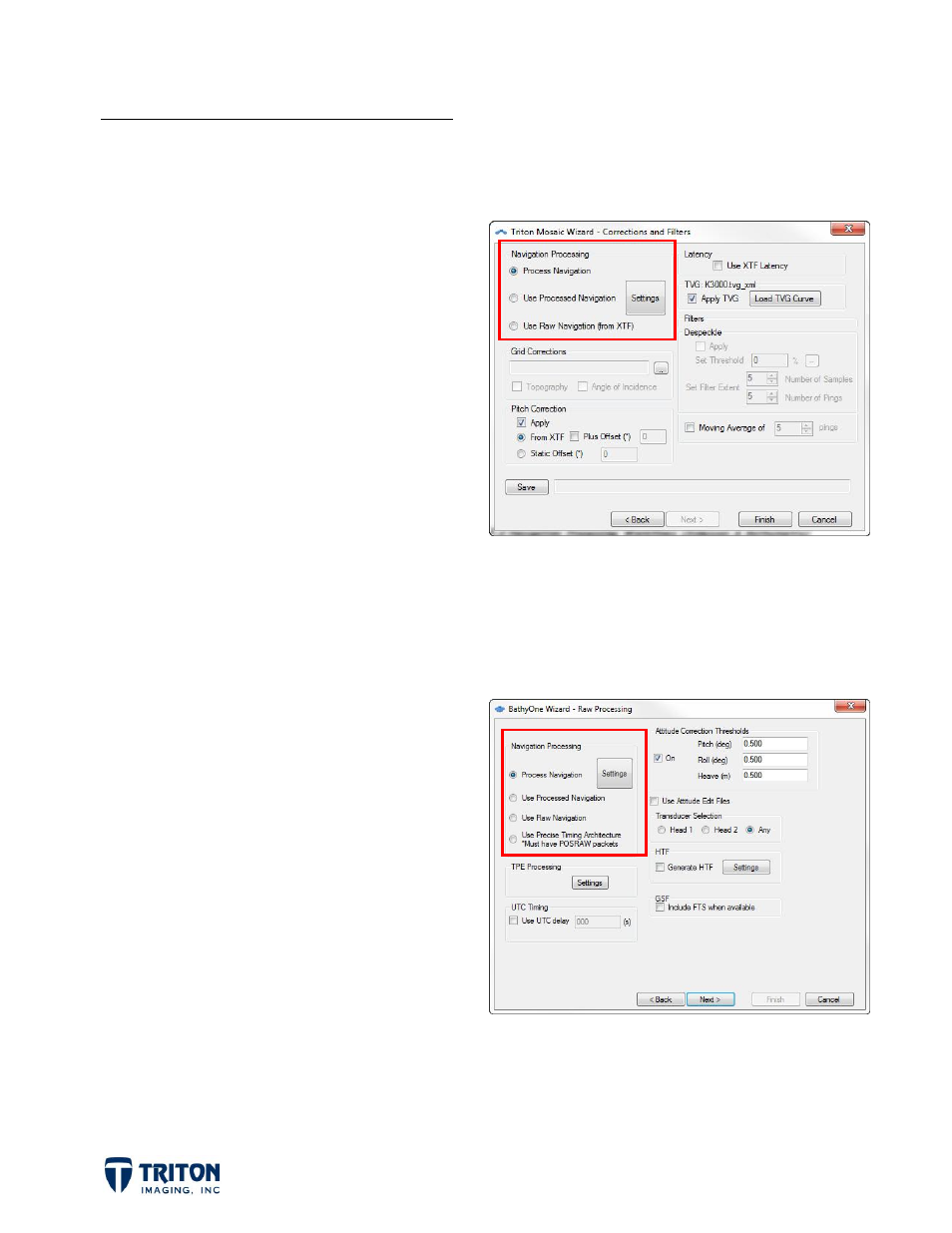

In the Mosaic Wizard for sidescan
processing, there are three options for
navigation data on the last page of the
wizard, as shown in the image to the right.
 Process Navigation - brings up the
Boxcar Settings and allows user to
process the navigation data; used if
navigation was not processed yet.
 Use Processed Navigation - reads
processed navigation data from the cache; uses results from File Tree navigation
processing.
 Use Raw Navigation from XTF - reads navigation from raw data file; useful for
externally processed navigation data.
2.2.2 Bathymetry Processing Wizard
In the Bathy Wizard for multibeam
processing, there are four options for
navigation data on the Raw Processing
page of the wizard, as shown to the right.
 Process Navigation - brings up the
Boxcar Settings and allows user to
process the navigation data; used if
navigation was not processed yet.
 Use Processed Navigation - reads
processed navigation data from the cache; uses results from File Tree navigation
processing.
 Use Raw Navigation - reads navigation from raw data file; useful for externally
processed navigation data.
