Vi-R4000 Series

Videoswitch Page

8

Mdr603a.doc

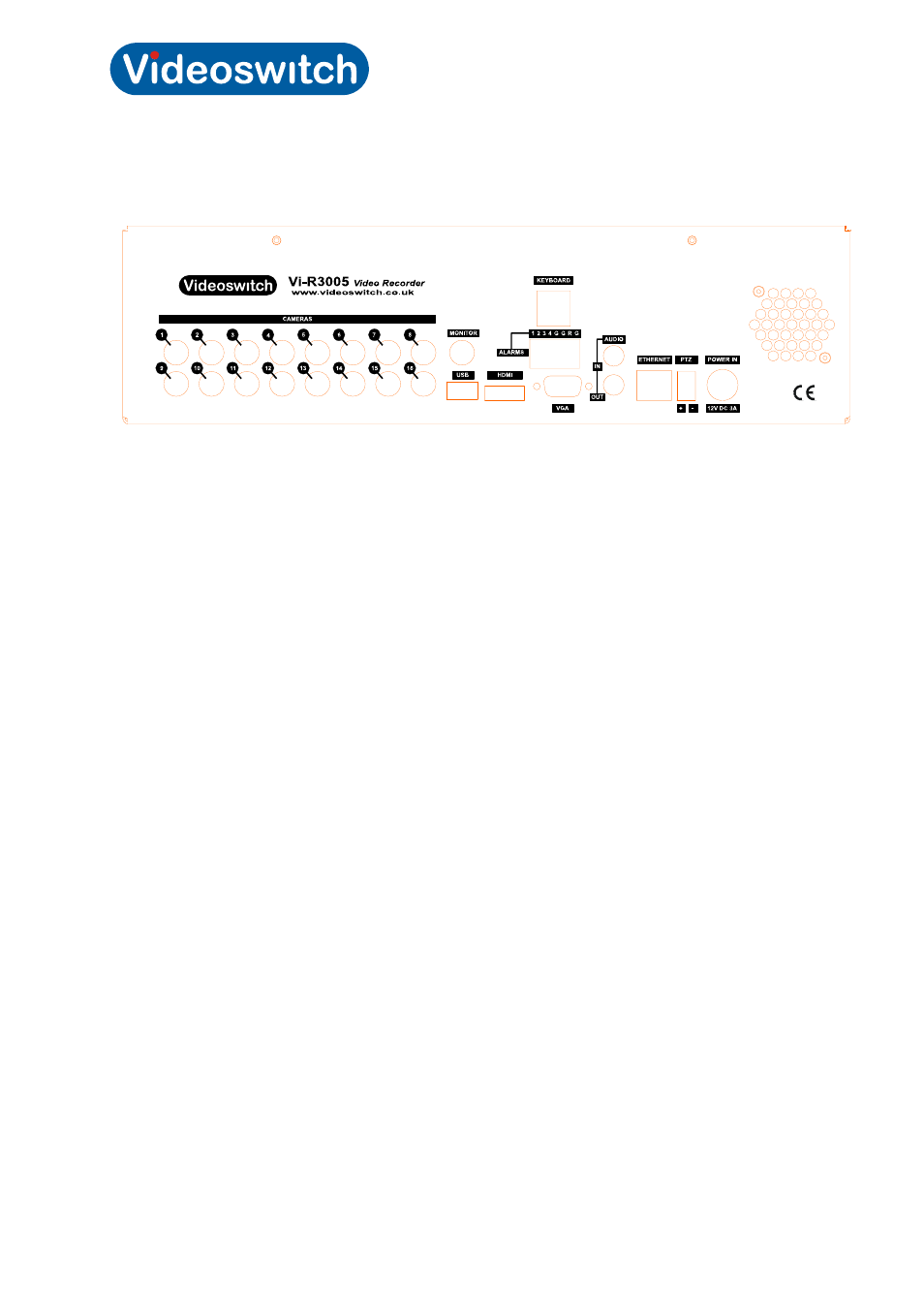

2.2 Rear Panel Connections

2.2.1 Essential

Connections

Connect cameras to camera inputs 1-16 as required

Connect VGA monitor to VGA port and/or connect a BNC monitor to MONITOR (CVBS) port.
The two monitors can display different full screen and multi-screens. Note that the VGA
monitor must be connected prior to switching on the DVR as it is auto-detected on boot-up
unless specified as main monitor in the menu.

Connect mains supply to power 12V adaptor provided and connect tp DVR

2.2.2 Optional

Connections

Connect an HDMI monitor or a DVI monitor (via adaptor cable) to the HDMI port. This will be
the main monitor. Note that the HDMI/DVI monitor must be connected prior to switching on
the DVR as it is auto-detected on boot-up.

Connect mouse to the rear MOUSE port. Note that while the mouse emulator is enabled, the
mouse is disabled

Connect Ethernet network to ETHERNET port using CAT5 cable (included)

Connect Videoswitch remote keyboards to KBD port (Vi-K1 or Vi-K2 range). A BNC video
monitor may be connected to the BNC connector on the keyboards.

Connect dome(s) to RS485 Dome port

Connect alarm device and alarm sensor contacts to ALARMS port inputs 1, 2, 3, 4

Connect a USB memory stick to the USB port on the front of the unit (above the DVD drive)
for exporting video, importing/exporting configuration and for importing firmware updates.

Connect line level audio input and output equipment. 1 channel audio is supported.
