2.2 Magnet Position
The sliding magnet is designed to move along the extrusion.
The magnet can be slide mounted (Part # SD0521801) or
top mounted (Part # SD0521800). Refer to figure 2-2.

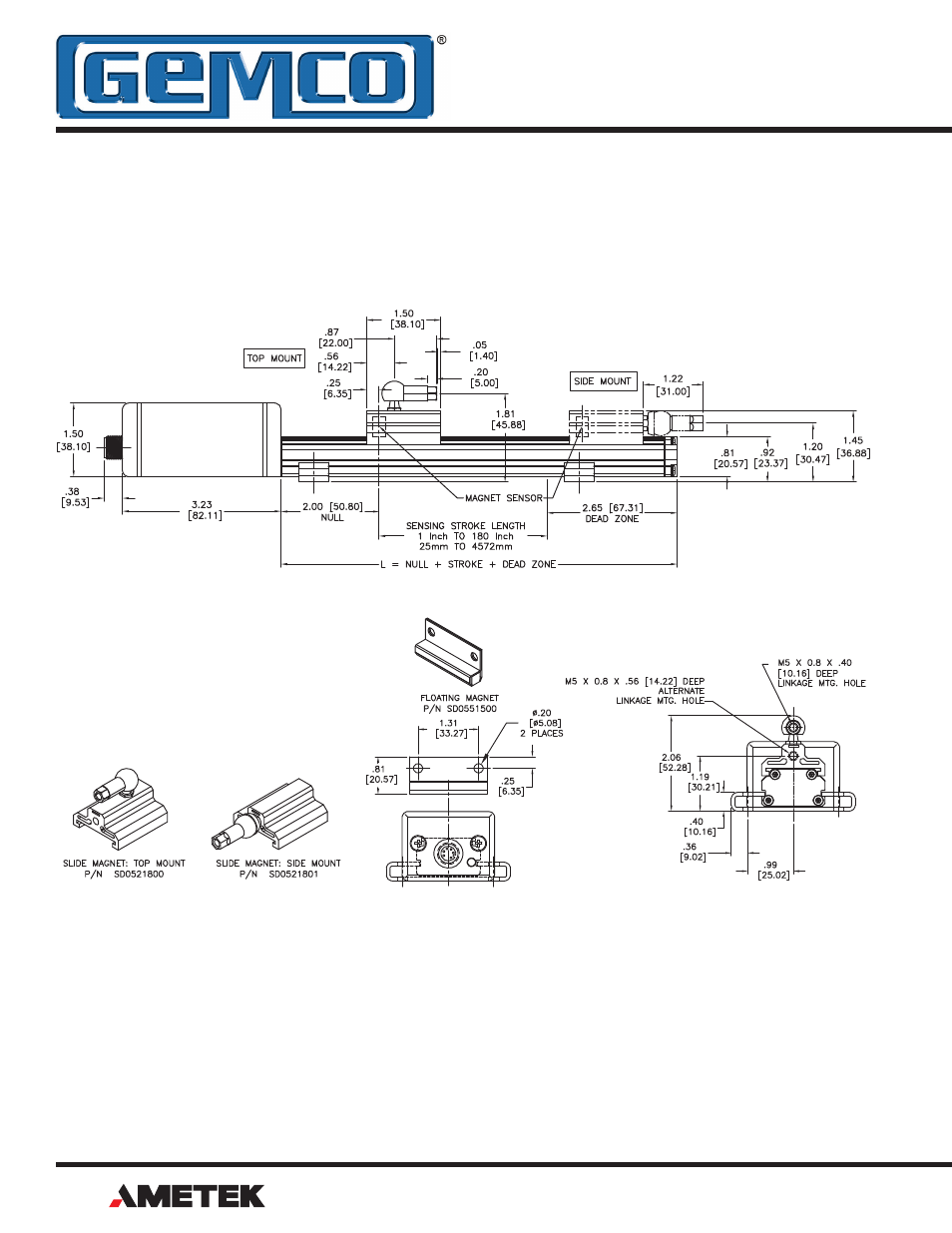

Figure 2-2 Magnet Sensor
