Operating and installation instructions

3-way control valves - STEVI

®

450 / 451

DN125v-150v
- Unscrew seat ring (pos. 2 bottom) and renew or

recondition.

- Slacken nuts (pos. 24) by about 2-3 turns.
- Extract and replace plug (pos. 3) and stem

(pos. 5).

- Assemble in reverse order.

(For tightening torques refer to item 7.3.)

Changing the top seat ring:
- Dismantle seat ring, plug and stem as described

above.

- Loose nuts (pos. 11).
- Detach stuffing box housing (pos. 39).
- Unscrew seat ring (pos. 2 top) and renew or

recondition.
(For tightening torques refer to item 7.3.)

- Replace gasket (pos. 9).
- Assemble in reverse order.

(For tightening torques refer to item 7.3.)

- Secure with nuts (pos. 11) and tighten them

crosswise.
(For tightening torques refer to item 7.3.)

(bottom)

(top)

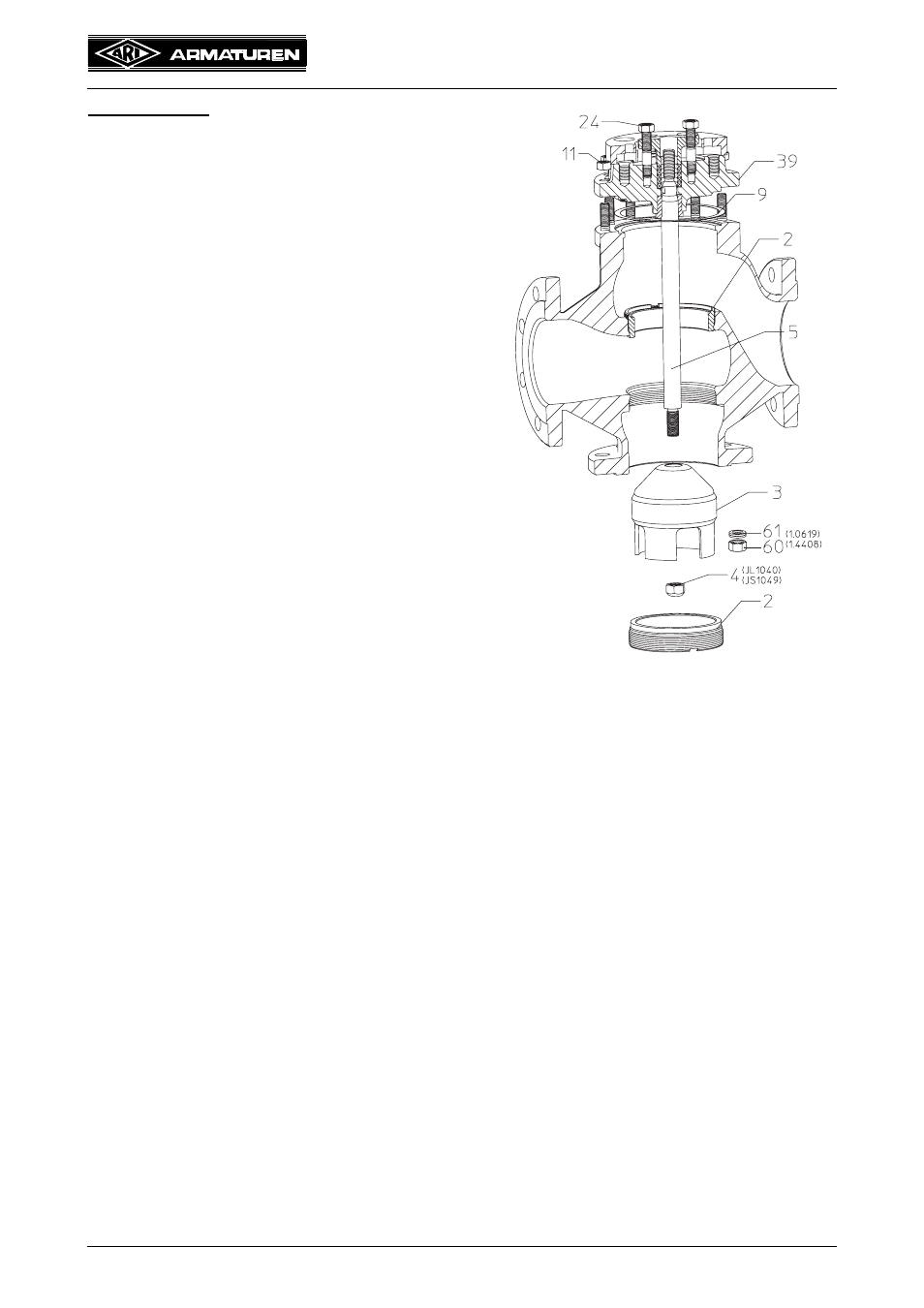

Fig. 21:
Series 450 DN125v-150v
with mixing plug
