Chapter 3
68

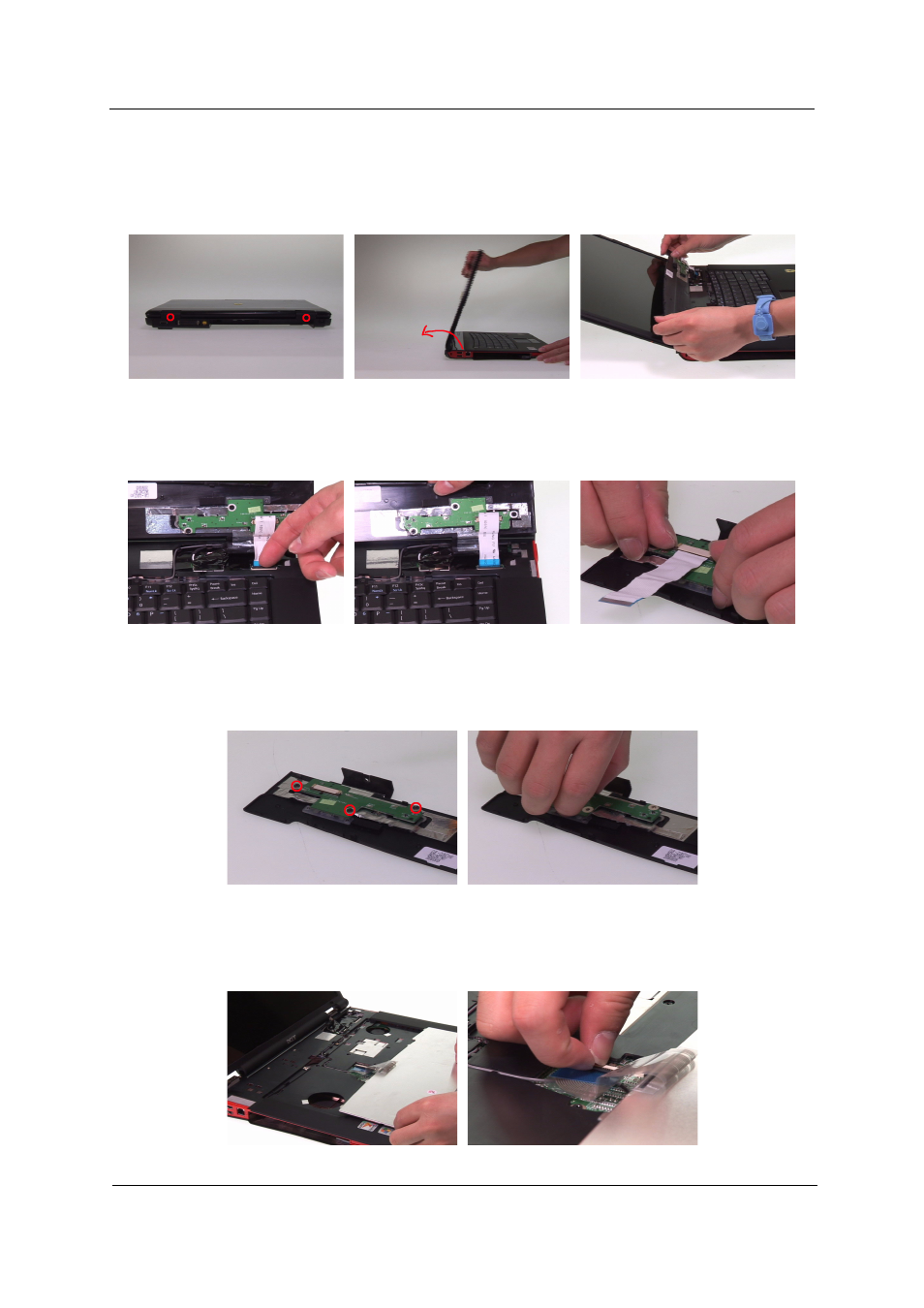

Removing the LCD Module from the Main Unit
1.
Remove the two screws fastening the middle cover.
2.
Open the lap top as shown.
3.
Then detach the middle cover and place it as shown.
4.
Disconnect the launch board cable from the main board.
5.
Remove the middle cover (with launch board and launch board cable).
6.
Disconnect the launch board cable from the launch board.
7.
Remove the three screws holding the launch board to the middle.
8.
Then remove the launch board from the middle cover.
9.
Turn over the keyboard and place it as the image shows.
10.
Disconnect the keyboard cable from the main board then remove the keyboard.
