Parts – Acer 5000 User Manual

Page 102

background image

93

Chapter 5

#

Description

#

Description

1

South Bridge

2

BIOS ROM

3

SATA connector

4

Bluetooth module connector

5

Audio Codec

6

RTC battery connector

7

New card connector

8

North bridge

9

CPU socket

10

DDR2 RAM slot1

11

DDR2 RAM slot2

12

Media bay connector

13

Battery pack connector

14

VGA chip

15

Four-pin USB cable connector

16

System fan connector

17

VRAM

18

VRAM

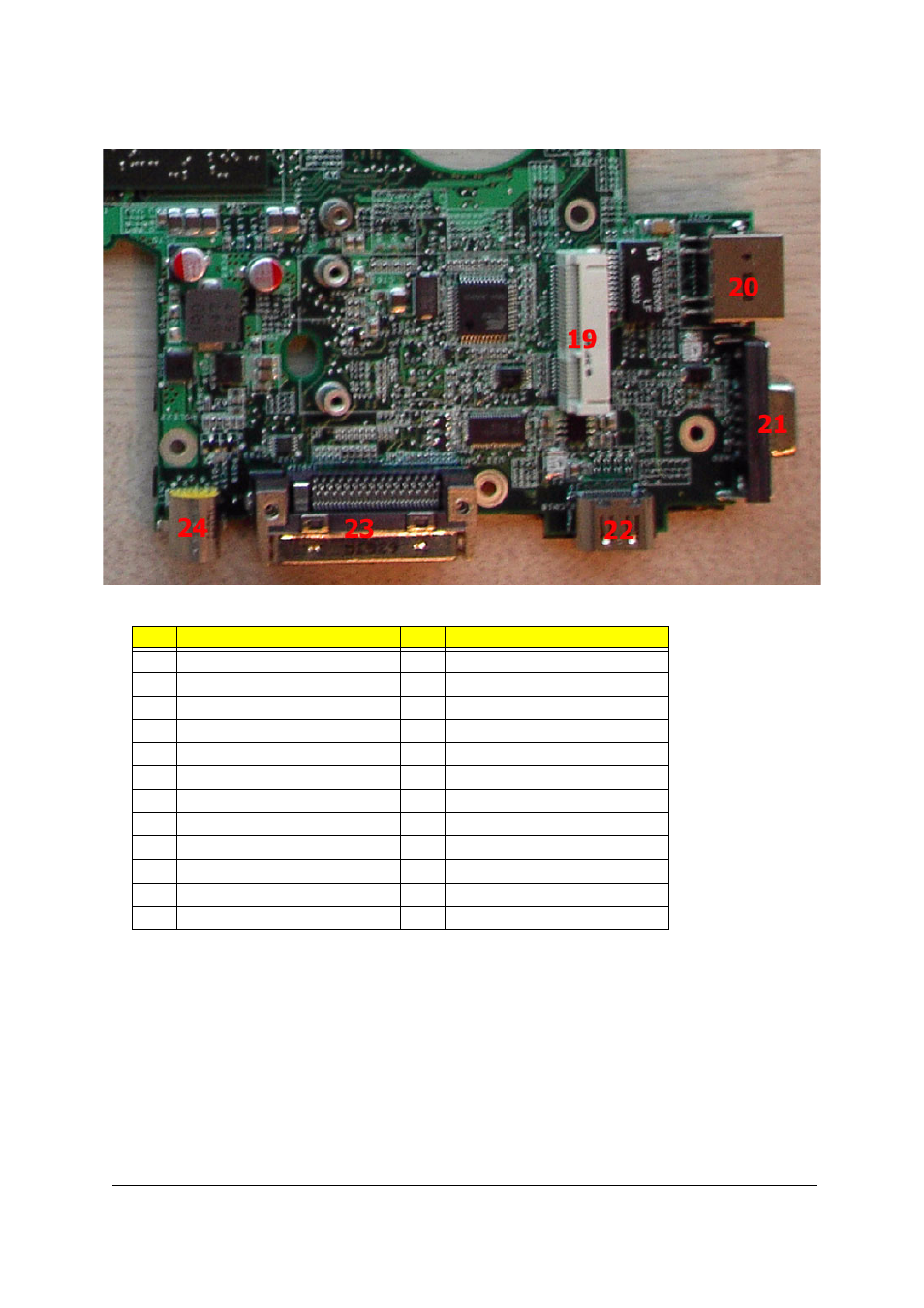

19

Mini card connector

20

RJ45 W/ LED

21

CRT connector

22

HDMI connector

23

Docking connector

24

S-Video connector
