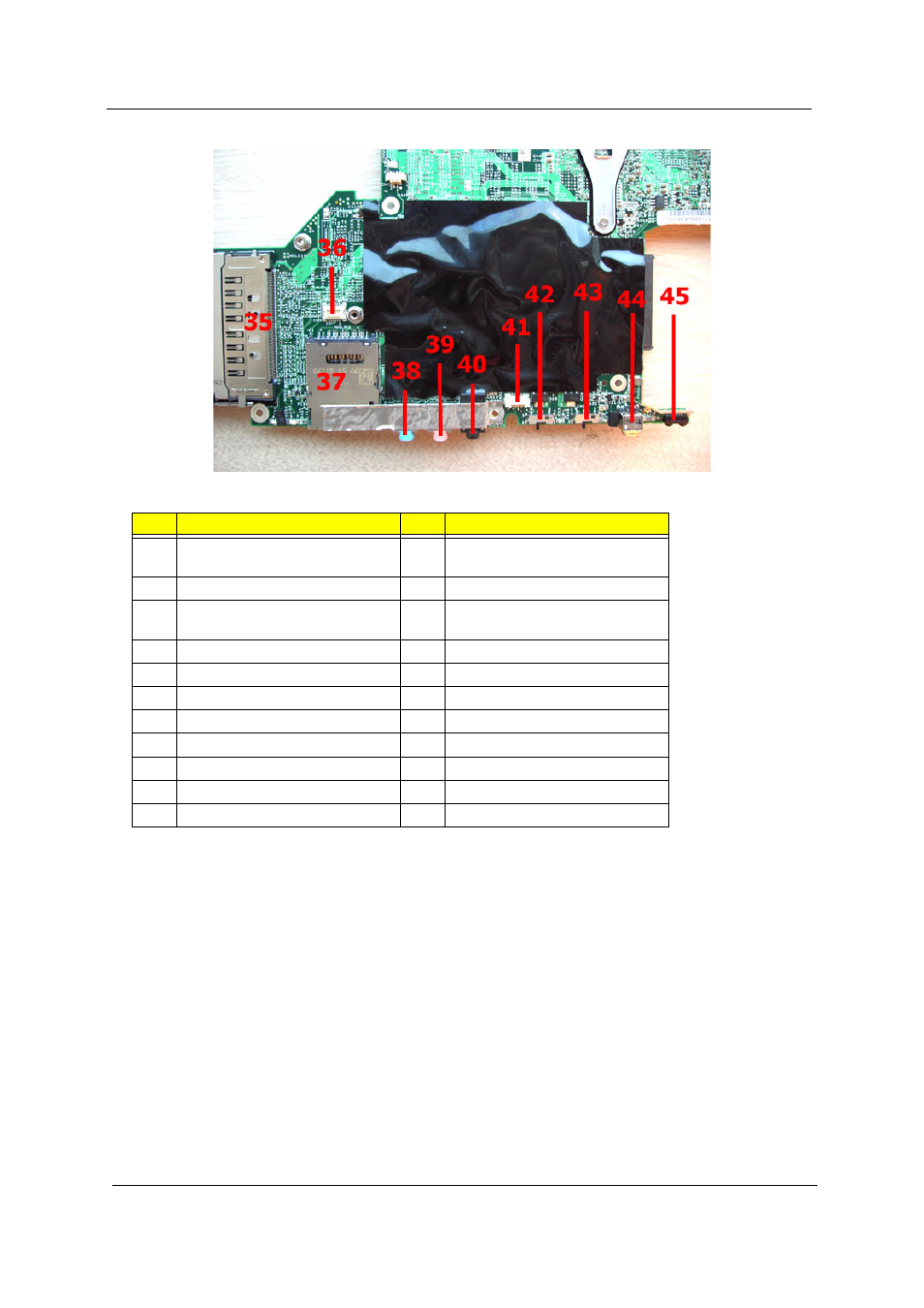

95

Chapter 5

#

Description

#

Description

25

LCD connector

26

Main board to button board FFC
connector

27

USB1

28

USB2

29

Mic connector

30

Daughter board cable to main
board connector

31

Keyboard FFC connector

32

Touch pad FFC connector

33

VRAM

34

VRAM

35

PCMCIA card connector

36

MDC connector

37

5-in-1 card reader

38

Audio jack / line in

39

Audio jack / mic

40

SPDIF (line out)

41

Speaker connector

42

Bluetooth switch

43

Wireless switch

44

1394 connector

45

FIR
