Acer Bluetooth
®
VoIP Phone

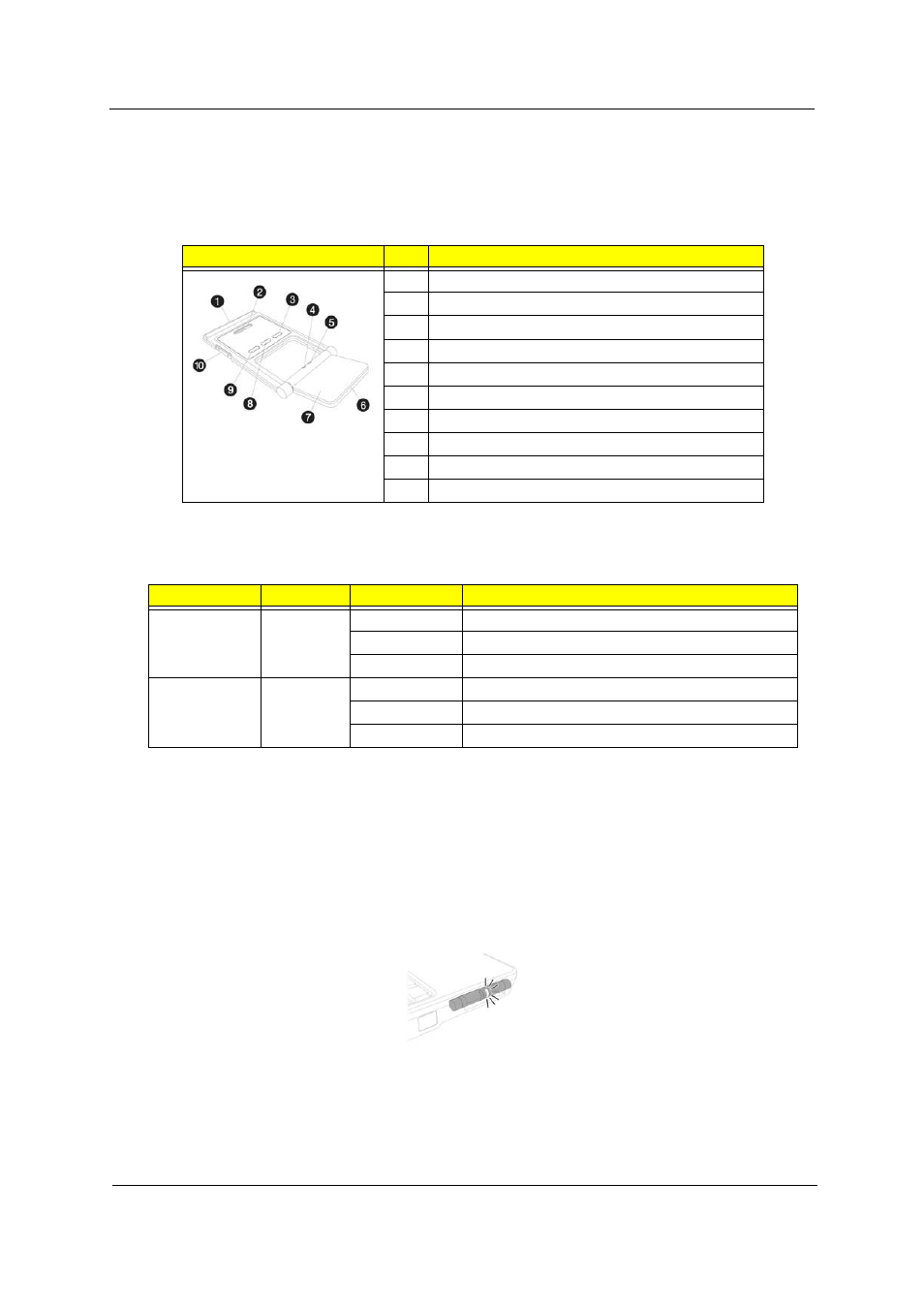

VoIP Phone Layout
LED Indicators
Charging the Phone
You need to charge the phone before initial use. It takes approximately four hours for a full charge.
To charge the phone:
1. Turn the notebook on.
2. Locate the PC Card (PCMCIA) slot.
3. Insert the phone to the slot label up. Make sure that the phone is completely pushed on the slot.
NOTE: The notebook detects the device and displays a New Device Wizard window. Click No, not this time,
then close the window.
4. The power/charge indicator lights up during charge and turns off when the battery is full. Eject the phone
from the PC Card slot when charging is finished.
# Description
1 PC Card (PCMCIA) interface connector
2 Speaker
3 Power button
4 Bluetooth connection/pairing indicator
5 Charge/Power indicator
6 Microphone
7 Flip
8 Bluetooth connection/pairing button
9 Speaker phone button
10 Volume up/down button
LED Color Status Description
Bluetooth
connection/
pairing indicator Blue Blinking fast The phone is in pairing mode.
Blinking slow The phone is linking with the notebook.
Off The phone is not paired or linked with the notebook.
Charge/Power
indicator Amber On The phone is charging.
Off The phone is fully-charged.
Blinking The phone needs to be recharged.
Note: New Device
Wizard No, not this time,
