8

Chapter 1

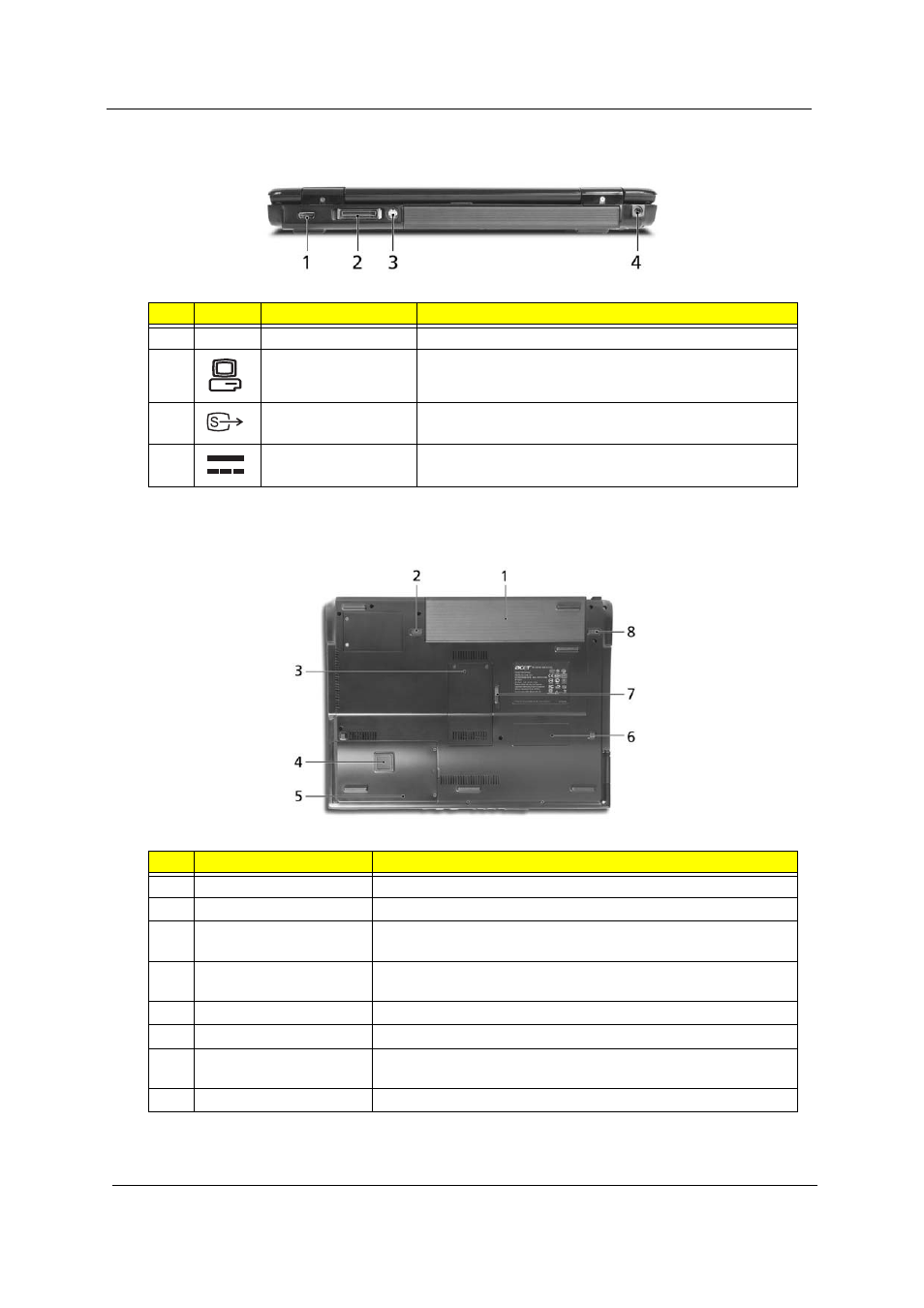

Rear View

Base View

#

Icon

Item

Description

1

HDMI

HDMI port

Supports high definition digital video connections.

2

124-pin Acer ezDock
connector

Connects to Acer ezDock.

3

S-video port/TV out
port (NTSC/PAL) port

Connects to a television or display device with S-video input

4

DC-in jack

Connects to an AC adapter.

#

Item

Description

1

Battery bay

Houses the computer’s battery pack.

2

Battery lock

Locks the battery in position.

3

Wireless LAN and memory
compartments

Houses the computer’s WLAN and main memory (secured with
screws).

4

Acer DASP (Disk Anti-
Shock Protection)

Protects the hard disk drive from shocks and bumps.

5

Hard disk bay

Houses the computer’s hard disk (secured with screws).

6

Optical drive bay

Houses the computer’s optical drive.

7

Optical drive bay release
latch

Releases the optical drive for removal.

8

Battery release latch

Releases the battery for removal.

#
