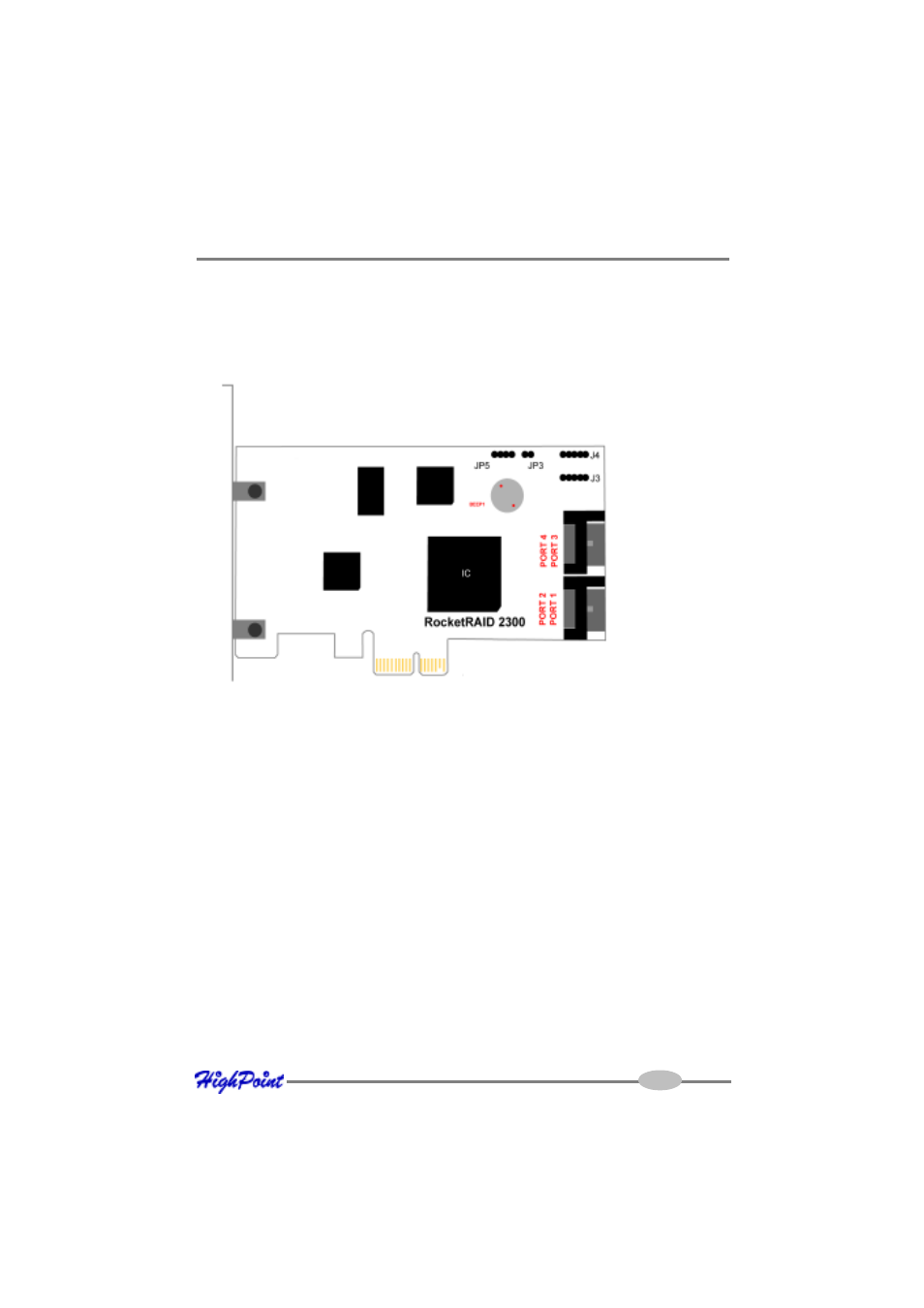

1 – RocketRAID 230x Host Adapter layout
RocketRAID 2300
Port1- Port4
These represent the host adapter’s four SATAII channels
J3, J4
These LED connectors can be used to configure Disk Failure (J3) and Disk Activity
(J4) indicators for each individual disk attached to the RocketRAID 2300. These
connections are ideal for server chassis that utilize removable drive bays.
JP3
This jumper can be used to enable or disable the card’s alarm (BEEP1). The alarm is
enabled by default (the jumper is attached). To disable the alarm, remove the jumper.
BEEP1 - Speaker
Alarm (speaker): the speaker emits and audible alarm in the case of disk/array failure.
