Chapter 3 _______________________________________________________________ Installation
VAISALA _______________________________________________________________________ 29
Mounting Wind Sensors to WAC155
0110-005

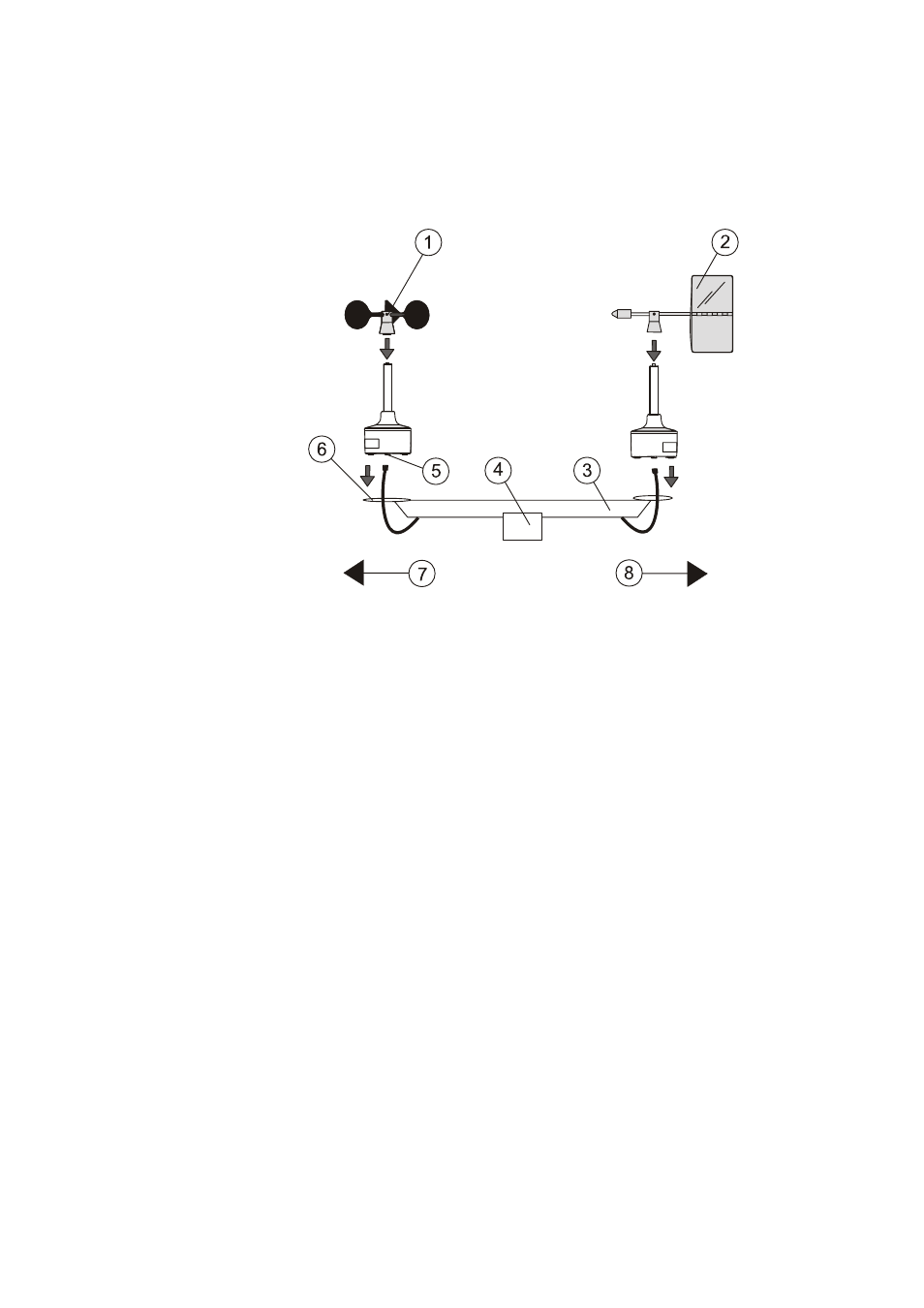

Figure 18
Installation of the Wind Sensors WAA151 and
WAV151 to WAC155
Alignment
After mounting the WAC155 transmitter to the mast, check that the
WAV151 end of the cross arm is pointing to north with the required
accuracy, see
. To ensure a correct assembly after
aligning the WAC155, you can mount the sensors on it only in one way.
The following numbers refer to
1
=
WAA151 Cup assembly
2
=
WAV151 Tail assembly
3
=
Cross arm
4
=
WAC155
5
=
Connector
6
=
Mounting flange
7
=
South
8
=
North
