8

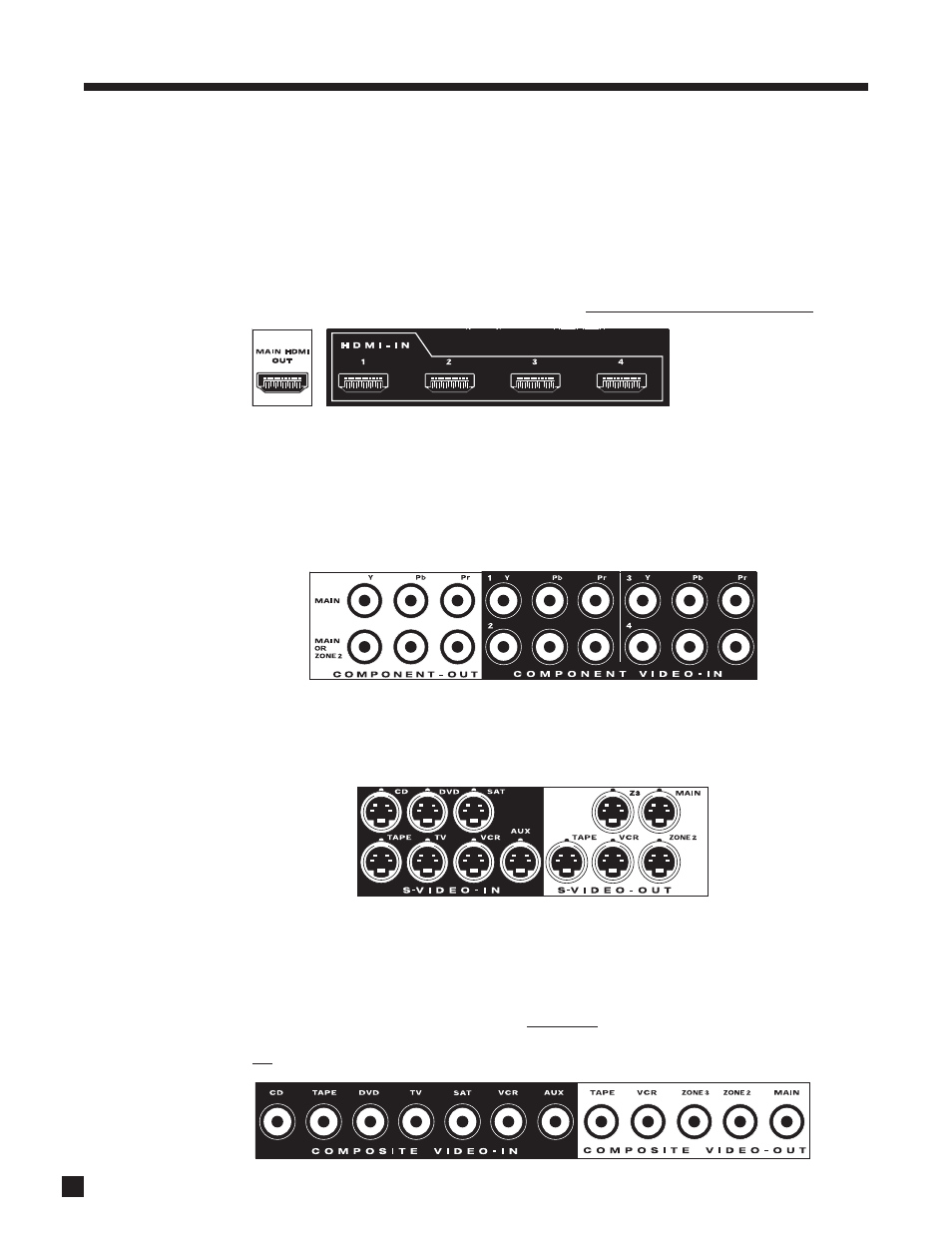

2.1 VIDEO CONNECTIONS
To configure inputs, see section 3.6 and to configure video outputs see section 3.1.
HDMI (digital):
Audio and video are transmitted from source components to the AVM 50. Maximum video resolution is
1080p/60. Audio is transmitted as Dolby Digital, DTS, or up to six channels of PCM. Connect HDMI output to
a display with HDMI or DVI input – one with High-bandwidth Digital Content Protection (HDCP) is required to
display protected material. If the source material is copy-protected with HDCP, then only HDMI video output
is active (see section 4.14). DVD players usually enable HDCP even when the disc is a home movie.
Component Video (analog):
Component video uses three coaxial cables and has a maximum resolution of 1080p/60 in bypass mode and
1080i/60 or 1080p/30 if processed. The second Component video output can be assigned in different ways –
as either processed or unprocessed MAIN output, or unprocessed ZONE2 output. Component video input
can be converted to HDMI output. If the source material is copy-protected with Macrovision, then
maximum resolution using Component video output is 480p (see section 4.14).
S-Video (analog):
Maximum resolution is 480i (NTSC) / 576i (PAL). This connection keeps brightness and color separate for a
better picture than Composite. S-Video input can be converted to Component and HDMI output (MAIN only).
Composite Video (analog):
Maximum resolution is 480i (NTSC) / 576i (PAL). This traditional format combines the black/white and color
information for transmission on a single coaxial cable. To be displayed, the information has to be separated,
a process that degrades video quality. C
Co om mp po ossiitte e vviid de eo o iin np pu uttss c ca an n n no ott b be e ffe ed d tth hrro ou ug gh h tth he e A AV VM M 5500’’ss vviid de eo o
p prro oc ce essssiin ng g.. If you use a VCR, one with S-Video output is recommended. If the source is black and white, for
example a security camera, it can be plugged into a Component video’s Y input. If there is no choice but to
use a color source’s composite output through video processing, a composite to S-Video converter is
needed (not a S-Video to composite adapter turned backwards, which adds a lot of noise).
2. CONNECTIONS
120 V 60 Hz
170 W MAX
E X P A N S I O N P O R T
SHOCK HAZARD
DO N O T OPE N .
RISQUE DE CHOC ÉLECTRIQUE
NE P AS OUVRIR
M A I N A U D I O - O U T ( B A L A N C E D )
SUB 2
M A I N A U D I O - O U T
120 V 60 Hz
170 W MAX
E X P A N S I O N P O R T
SHOCK HAZARD
DO N O T OPE N .
RISQUE DE CHOC ÉLECTRIQUE
NE P AS OUVRIR
M A I N A U D I O - O U T ( B A L A N C E D )
SUB 2
M A I N A U D I O - O U T
120 V 60 Hz
170 W MAX
E X P A N S I O N P O R T
SHOCK HAZARD
DO N O T OPE N .
RISQUE DE CHOC ÉLECTRIQUE
NE P AS OUVRIR
M A I N A U D I O - O U T ( B A L A N C E D )
SUB 2
M A I N A U D I O - O U T
120 V 60 Hz
170 W MAX
E X P A N S I O N P O R T
SHOCK HAZARD
DO N O T OPE N .
RISQUE DE CHOC ÉLECTRIQUE
NE P AS OUVRIR
M A I N A U D I O - O U T ( B A L A N C E D )
SUB 2
M A I N A U D I O - O U T
120 V 60 Hz
170 W MAX
E X P A N S I O N P O R T
SHOCK HAZARD
DO N O T OPE N .
RISQUE DE CHOC ÉLECTRIQUE
NE P AS OUVRIR
M A I N A U D I O - O U T ( B A L A N C E D )
SUB 2
M A I N A U D I O - O U T
HDMI switching requires
at least two seconds per
stage, i.e. at least four
seconds from source to
processor to display.
