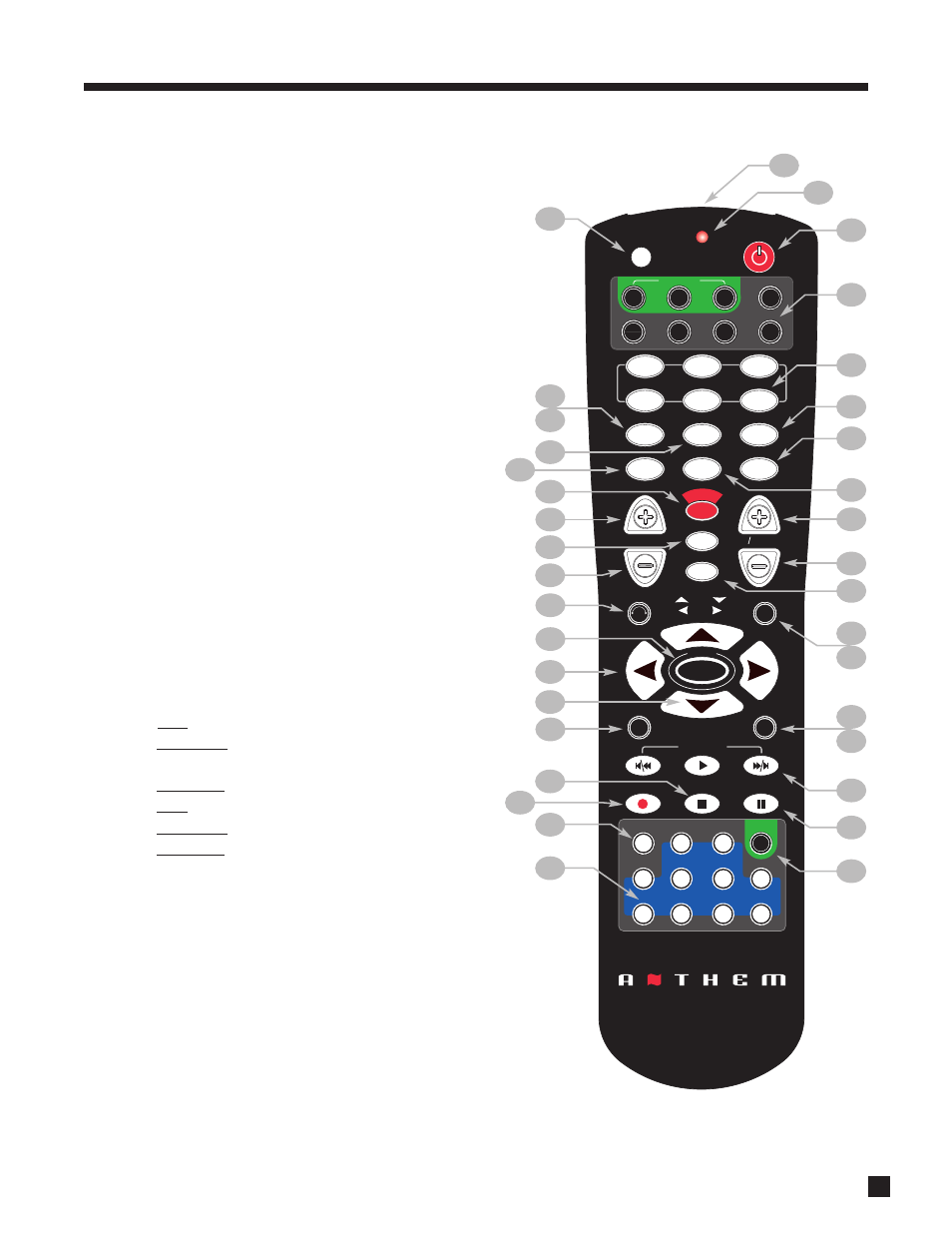

1.6 REMOTE CONTROL
1 – IR Transmitter (front face)
2 – LED
3 – Power ON for MAIN, ZONE2, and ZONE3 control modes
Power ON/OFF for other control modes (see #4)
This key does not turn the AVM 50 off (see #31)
4 – Control mode (to control other components)
These are not the source selection keys (see #19)
5 – FM•AM Preset setting and selection
6 – Tone Bypass
7 – Surround Mode / Video adjustments (Press & Hold for 3 seconds)
8 – Dynamics setting
9 – FM•AM Preset Up
10 – FM•AM Preset Down
11 – Sleep Timer selection / Timers setting
12 – Center Channel selection for Level / Bass / Treble
13 – Back (for Setup)
14 – Subwoofer / LFE selection for Level
15 – Setup (Press & Hold for 3 seconds)
16 – Source Seek
17 – Balance
18 – RECORD Path selection (Must be in MAIN – see #4)
19 – Source selection
20 – Copy MAIN when ZONE2, ZONE3, or RECORD is selected
21 – Bass selection
22 – Treble selection
23 – Surrounds / Rears selection for Level / Bass / Treble / Balance
24 – • Tune for FM•AM
• Adjustment for Surround Mode, Dynamics, THX,
Levels, Bass / Treble, Timers, Display Brightness, Video
• Navigation for Setup
25 – • Seek for FM•AM
• Adjustment for Balance
• Navigation for Setup
26 – Status / FM•AM Direct Entry / Setup selection
27 – Fronts / Headphones selection for Level / Bass / Treble / Balance
28 – Volume Down
29 – THX selection
30 – Volume Up
31 – Power OFF when in MAIN, ZONE2, or ZONE3 control mode
32 – Mute
33 – Front Panel LED / Display Brightness setting / Lip-Sync Delay
34 – On-Screen display of current front panel display
35 – Scaler menu (Press & Hold for 3 seconds)
36 – Learn (for customization of remote)
Rear: Battery cover (when batteries are running low and a key is
pressed, the backlight stops working and the LED blinks twice)
