Product Specifications
OSU 300 Interface
Single-mode Interface
■ Class 1 single-mode laser
■ 1310 nm
■ Up to 40 km on single-mode fiber
■ SC connectors
■ Transmitter output power: -3 dBm
■ Receiver sensitivity: -36 dBm
Multi-mode Interface
■ 1310 nm
■ Up to 2 km on multi-mode fiber
■ ST connectors
DTE Interface(s)
■ Built -in integrated HSSI port, SCSI-II 50-pin female
■ Three (3) option slots accept any combination of:
HSSI Port(s): Rate: 75 kbps to 44.2 Mbps,
SCSI-II 50-pin female
V.35 Port(s): M34 female, Rate: 75 kbps to 10 Mbps
Bridge Interface: Four 10/100 BaseT auto-sensing
Ethernet ports, acts as a bridge for data-transport
over WAN and Layer 2 switch between any of the
ports on the module
■ Bandwidth selectable in 75 kbps increments
■ All option cards are hot swappable
■ T3SU DSX-1 module not supported
VT100 Terminal Interface
■ RJ-48, EIA-232 compatible, female DB-9 adapter provided
■ Inband remote configuration and statistics
Clocking
■ Loop (slaved to network receive clock)
■ Local (private network master)
Diagnostics
■ ANSI T1.107 compatible loopbacks
■ Line and payload loopbacks
■ Built in BERT
■ Remote loopbacks
Agency Approvals
■ FCC Part 15, Class A, UL and CUL

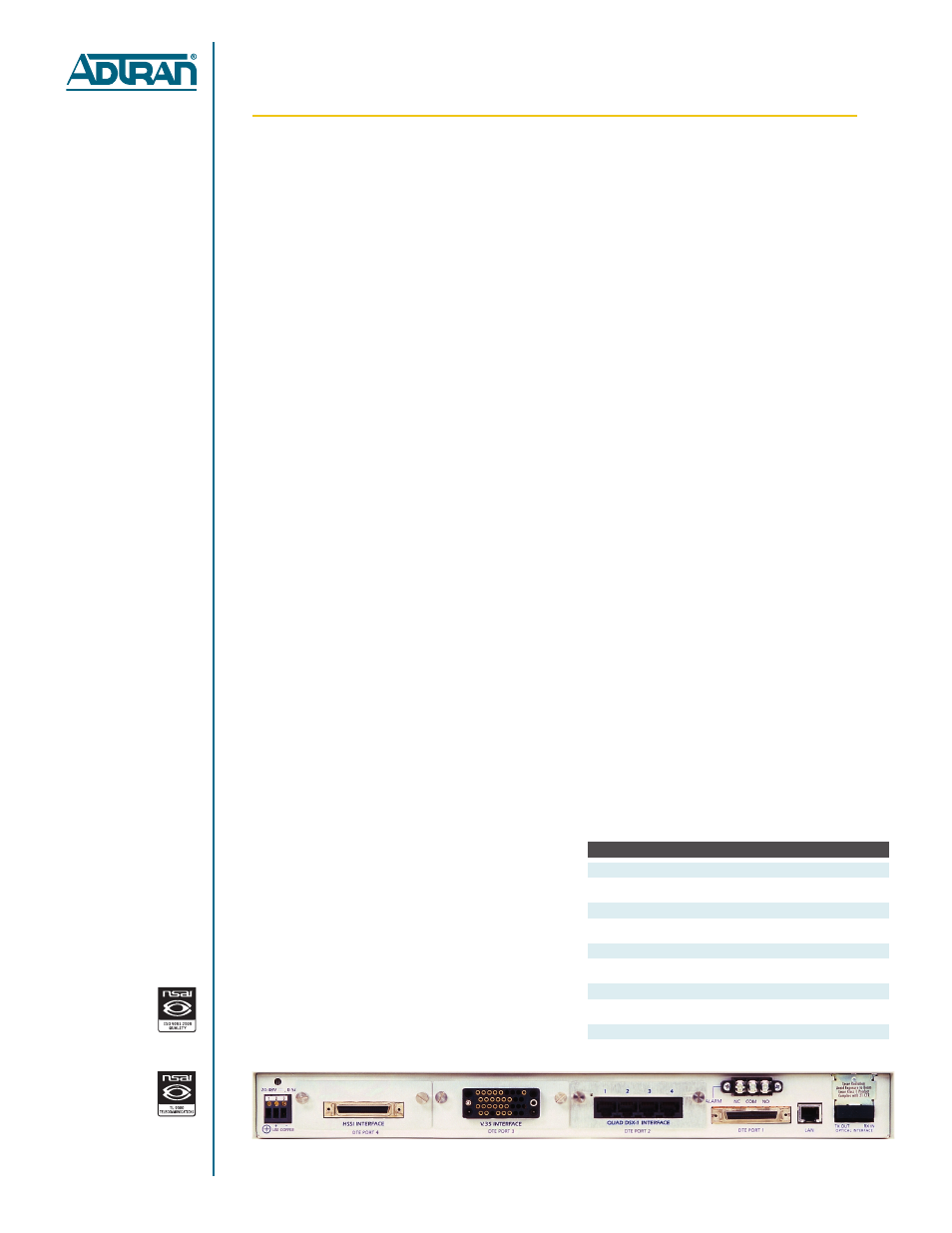

OSU 300
Multiport Optical Service Unit
Performance Monitoring
Local and Remote Network Port Statistics
■ Current 15-minute, 24-hour (96 15-minute intervals)
and total for 24 hours
■ P-bit errored and severely errored seconds
■ Severely errored framing seconds
■ Line, P-bit, C-bit coding violations
■ Line errored, unavailable seconds
■ C-bit errored and severely errored seconds
■ F-bit and M-bit errors
■ Far-end block errors
■ Percent availability
SNMP/Telnet
■ Integrated 10BaseT Ethernet and SLIP/PPP (async) port
■ MIB II, RFC 1213 & 1407 compliant
■ ADTRAN Enterprise MIB for extended monitoring and
DSU control/configuration
Environment
■ Operating Temperature: 0° to 50° C, (32° to 122° F)
■ Storage Temperature: -20° to 70° C, (-4° to 158° F)
■ Relative Humidity: Up to 95%, non-condensing
Physical
■ Dimensions: 1.7" H, 11.625" D, 17" W; fits 1U 19" rack
■ Weight: 5 lbs
■ Power: 120 VAC or 24-48 VDC, 9 watts
Product Includes
■ One 8-pin to 8-pin modular cable, modular-to-female
DB-9 adapter, user manual
■ 19" rackmount kit
Ordering Information
Equipment Part #
OSU 300 DC, Single-mode, SC 1200663L1
OSU 300 DC, Multi-mode, ST 1200663L4
OSU 300 AC, Single-mode, SC 4200663L1
OSU 300 AC, Multi-mode, ST 4200663L4
HSSI Module 1200218L1
V.35 Module 1200219L1
Quad Bridge Module 1200655L1
23" Rackmount Kit 1200171L1
AC to 48 Volt DC Converter 1202470L1
