Servicing should only be performed by a Qualified Service Technician

AIR SUPPLY:

Stoichiometric or theoretical complete combustion requires 10 cubic feet of air per 1,000 BTU of gas supplied.

The National Fuel Gas Code also recommends an additional 2.5 cubic feet of “excess” air. For information

on minimum make-up air opening sizes for various building installations, refer to the National Fuel Gas Code

NFPA 54/ANSI Z223.1.

INSUFFICIENT MAKE-UP AIR, NEGATIVE AIR PRESSURE AND DOWNDRAFTS:

A lack of combustion and ventilation air can create a negative ambient air pressure in the installed space. The

vent system on one or more gas fired appliances can experience down drafts due to the outdoor air pressure

being greater than the ambient air pressure in the installed space. Where multiple gas fired appliances are

installed, one or more gas fired appliances can “pull air” through the vent system(s) of other appliances

installed nearby.
One common example is in a restaurant installation where exhaust vent equipment was not considered in

sizing make-up requirements. This condition may result in air being back drafted by the restaurant exhaust

equipment through the heater causing the draft proving switch to open and/or erratic heater shutdown.

• Down drafts can cause flue gases to spill into the installed space.

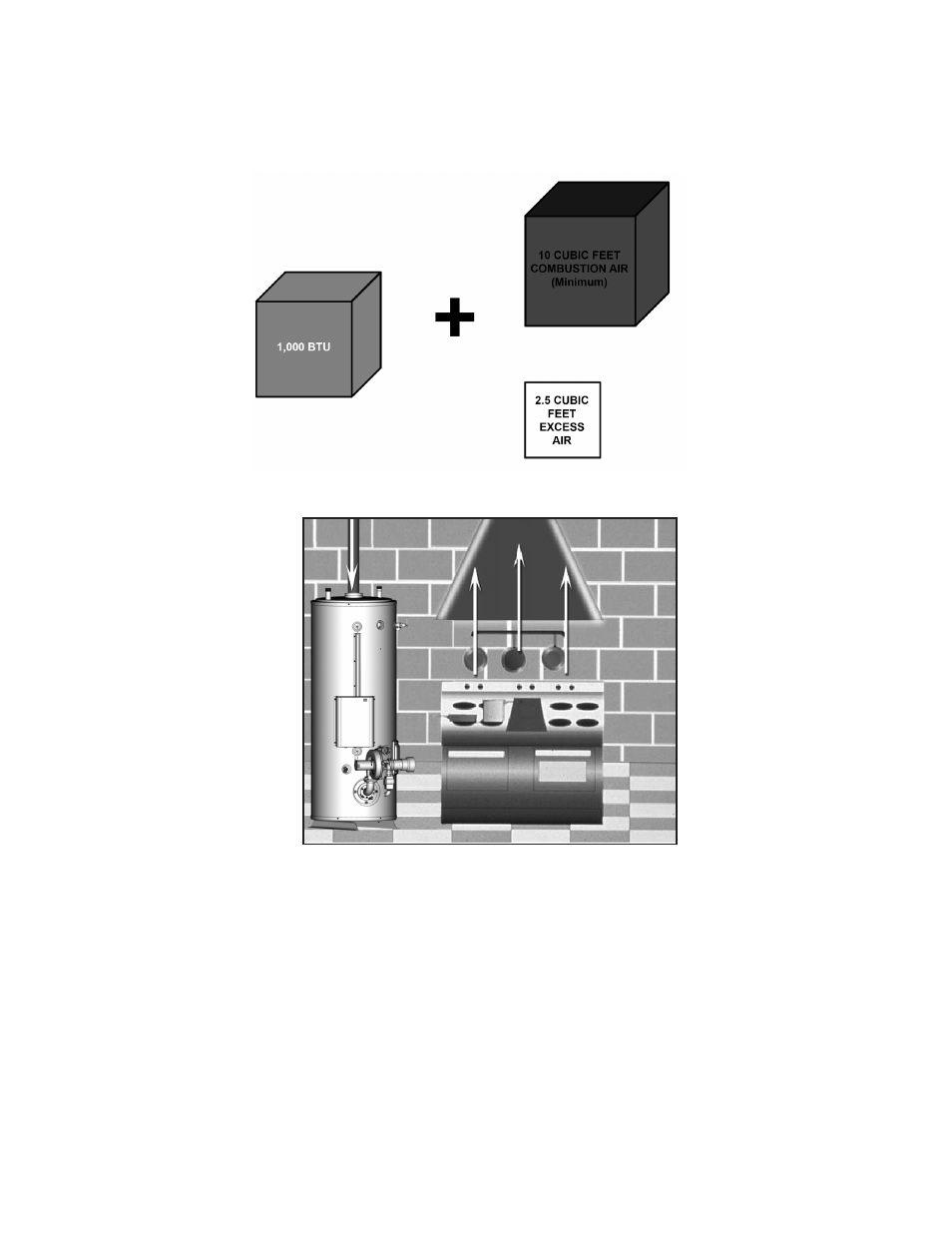

Downdraft Caused by Kitchen Vent Hood
