9

Servicing should only be performed by a Qualified Service Technician

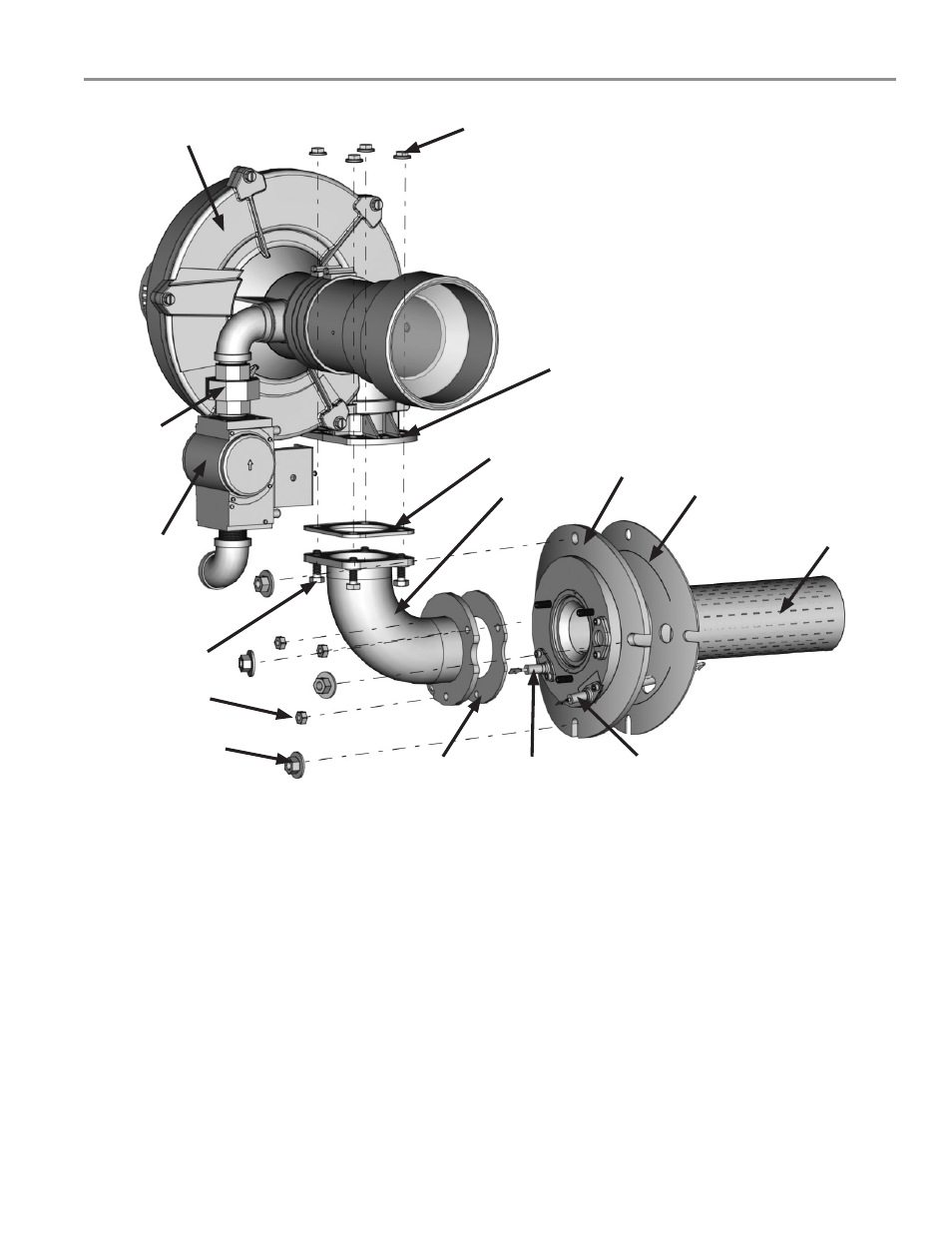

BLOWER AND BURNER ASSEMBLY

BURNER REPLACEMENT:

1. Turn off the gas supply and electricity to the water heater.
2. Disconnect the spark ignition cable and ground wire plus the flame sensor wire at their connection points

on the flange plate.

3. Disconnect the hose tubes at the gas valve connection, blower outlet connection and fresh air intake

connection if necessary.

4. Disconnect the gas line at the union above the gas valve.
5. Remove the 4 fasteners joining the blower flange to the adapter tube. Save the silicone gasket between

the blower flange and the adapter tube.

6. Move the blower aside and support it so that it will not hang from the power connection wires.

Burner

Skirt Ring

Flange Gasket

Flange

Plate

Silicone

Gasket

Blower

Spark Igniter

Flame

Sensor

Burner

Gasket

Brass Nuts/

Lock Washers (4)

Fasteners (4)

Gas Control

Valve

Adapter

Tube

Union

Blower

Flange

Brass Locknuts (3)

Fasteners (4)
