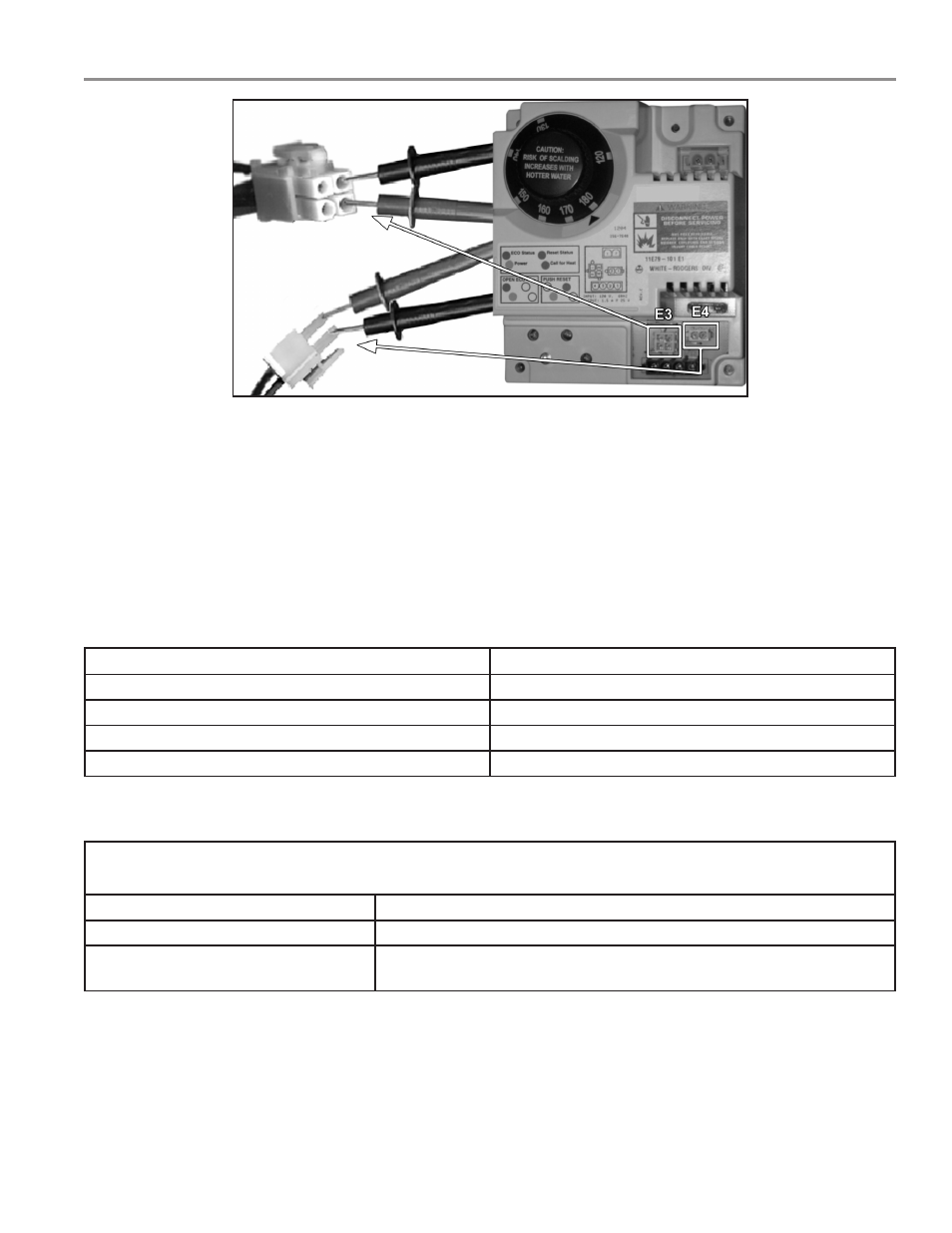

LOWER TEMPERATURE PROBE CONTINUITY CHECK

OHMS RESISTANCE TABLE

° F

OHMS

70°

11,884

120°

3,759

140°

2, 488

180°

1, 169

Lower Temperature Probe continuity check

Red wire to red wire – Turn supply power "Off" for this test.

IF.........

THEN............

Test indicates

no continuity.

Replace probe.

Continuity is indicated.

Probe should be okay (also verify Ohms resistance for water

temperature). (Reading will be approximate.)

CONDITIONS:

• Main burner ignited.
• Stored water is below temperature setting more than 5° F (Tank Average).
• Power Off.
• Plug disconnected from digital thermostat receptacle E4.
