26

Servicing should only be performed by a Qualified Service Technician

UPPER TEMPERATURE PROBE CONTINUITY CHECK

OHMS RESISTANCE TABLE

° F

OHMS

70°

11,884

120°

3,759

140°

2,488

180°

1,169

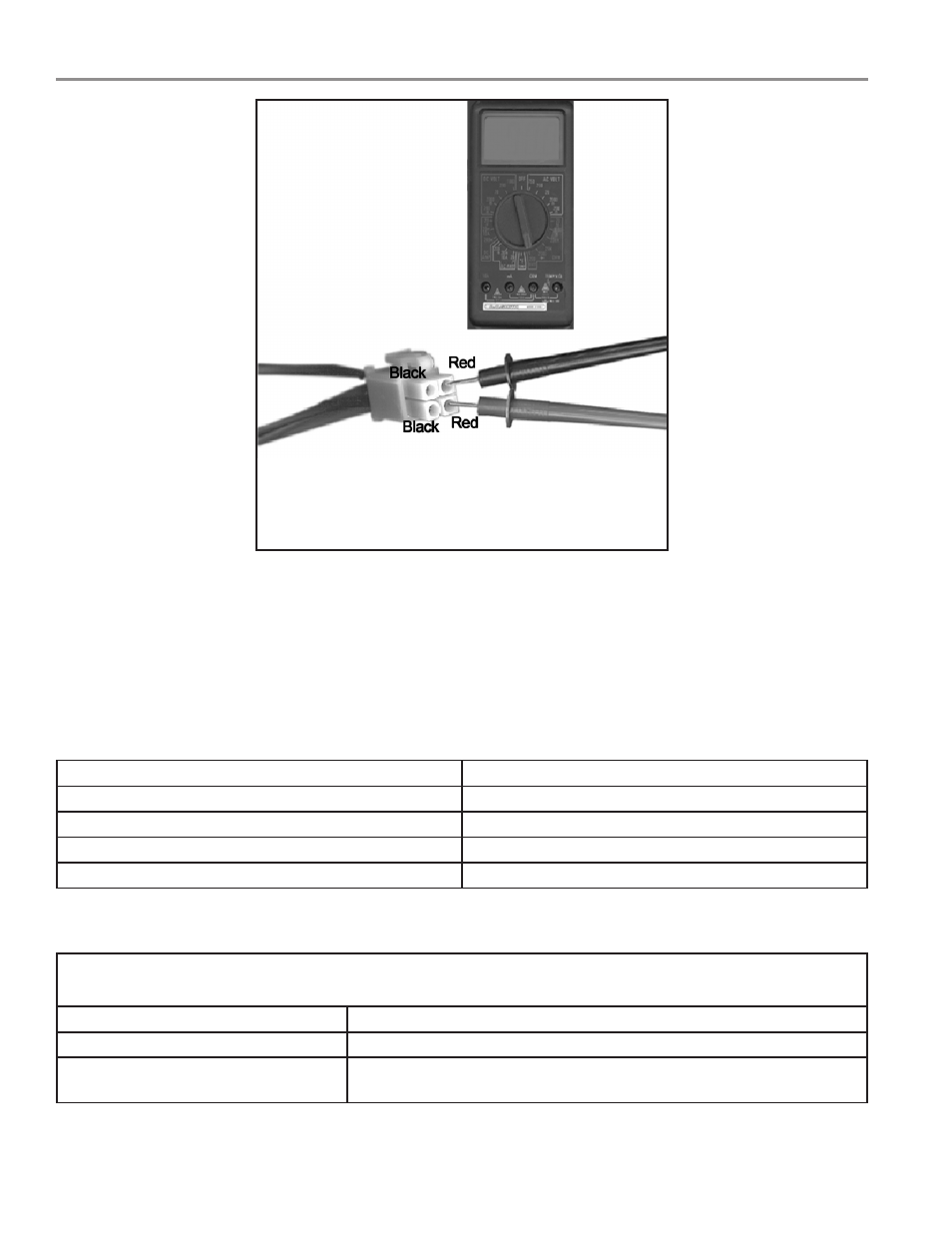

Upper Temperature Probe continuity check

Red wire to red wire – Turn supply power "Off" for this test.

IF.........

THEN............

Test indicates

no continuity.

Replace probe.

Continuity is indicated.

Probe should be okay (also verify Ohms resistance for water

temperature). (Reading will be approximate.)

CONDITIONS:

• Power On – Water below temperature set point.
• Red, digital thermostat “Reset Status” LED – OFF.
• "Call for Heat" LED Off.
