Illus. No. Part No. Qty. Description
1 170336 1 Cold Rolled Steel (CRS) Main Door Ring
2 102354 1 Extruded Steel Door Gasket
3 170329 1 Top Hinge Block
4 150445 2 1/4-20 x 3/4” Socket Head Cap Screw
5 153031 1 1/4” Nylon Washer
6 170331 1 Bottom Hinge Block
7 150445 2 1/4-20 x 3/4” Socket Head Cap Screw
8 152014 3 1/4-20 Free Spin Wash Nut
9 151010 1 #10-32 Black Hex Acorn Nut
10 150120 1 #10-32 x 7/16” Door Latch Screw
11 816656 1 Cold Rolled Steel (CRS) Main Door Handle Assembly
12 152014 3 1/4-20 Free Spin Wash Nut
13 102211 1 Door Glass with Notch

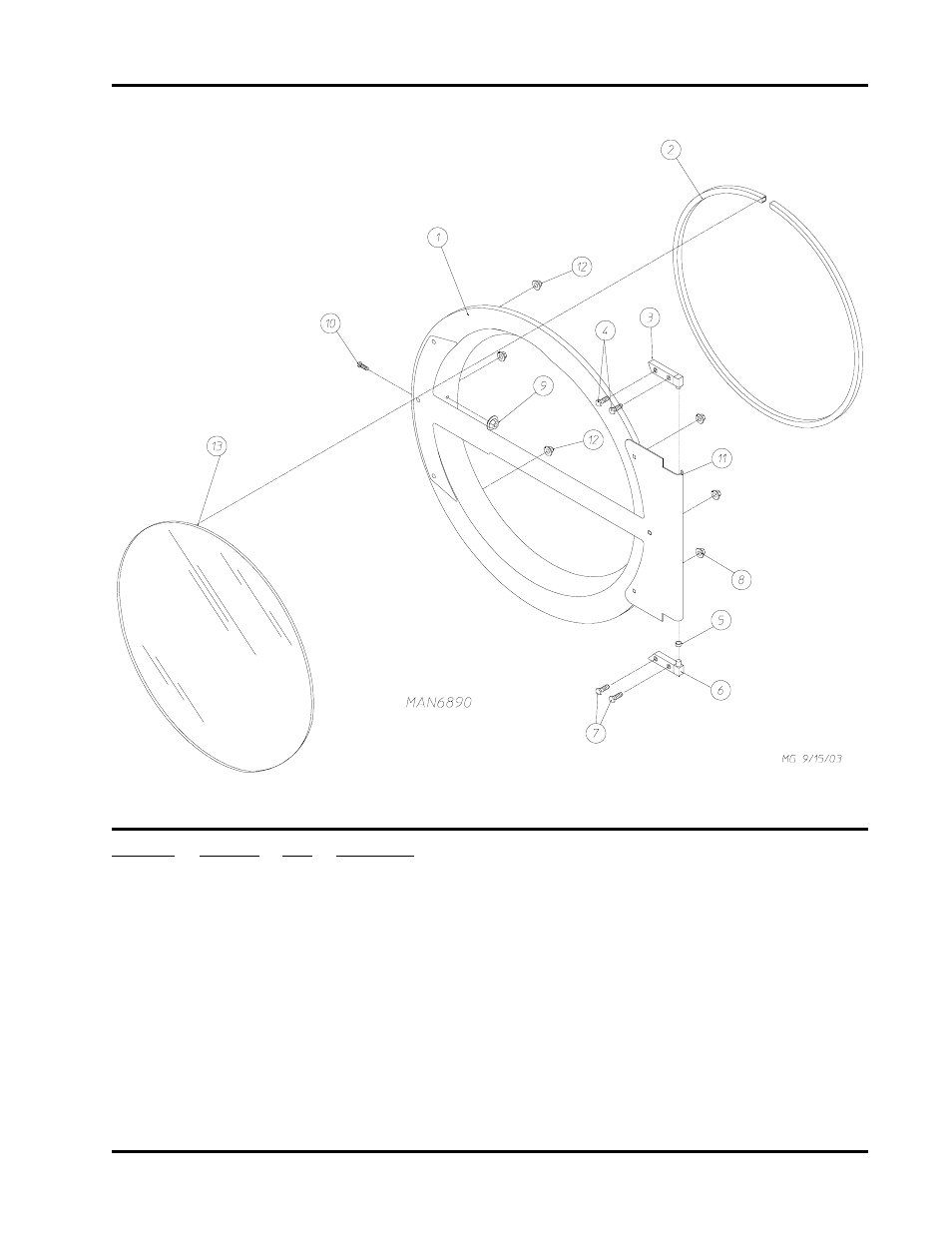

Main Door Assembly
