S.a.f.e. system assembly – American Dryer Corp. Phase 7 AD-360X2RD User Manual
Page 32
30
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Illus. No.
Part No.
Qty.
Description
1
860069
2
Top and Bottom Temperature Sensor Assembly
2
824081
1
R.C. Network Assembly
3
143099
1
3/8 O.D. Copper Tubing
4
143099
1
3/8 O.D. Copper Tubing
5
143241
1
3/8 Close Brass Nipple
6
360148
1
S.A.F.E. Valve Mounting Bracket
7
143220
1
3/8 F.P.T. Brass Tee
8
165114
1
S.A.F.E. Solenoid Valve
9
143236
1
3/8 Brass Pipe Cross
10
143251
1
3/8 M.P.T. Brass Plug
11
136987
1
Water Jet Pressure Switch
12
143208
1
3/8 x 3/8 M.P.T. Brass Elbow
13
143303
2
3/8 N.P.T Brass Lock Nut
14
143315
1
Brass Bushing
15
143585
2
60º S.A.F.E., 3 gal/min, 3/8 N.P.T. Spray Nozzle
16
143320
3
3/8 M.P.T. Brass Elbow
17
142888
1
1/2 M.P.T. x 3/8 F.P.T. Hex Bushing
18
153024
6
#10 Split Lock Washer
19
152008
6
#10-32 Hex Nut
20
150309
2
#10-16 x 1/2 Hex Head TEK Screw
21
154210
4
5/32 x 3/16 Pop Rivet
22
360149
2
60º Spray Nozzle Mount
23
154007
4
1/4 Push On Fastener

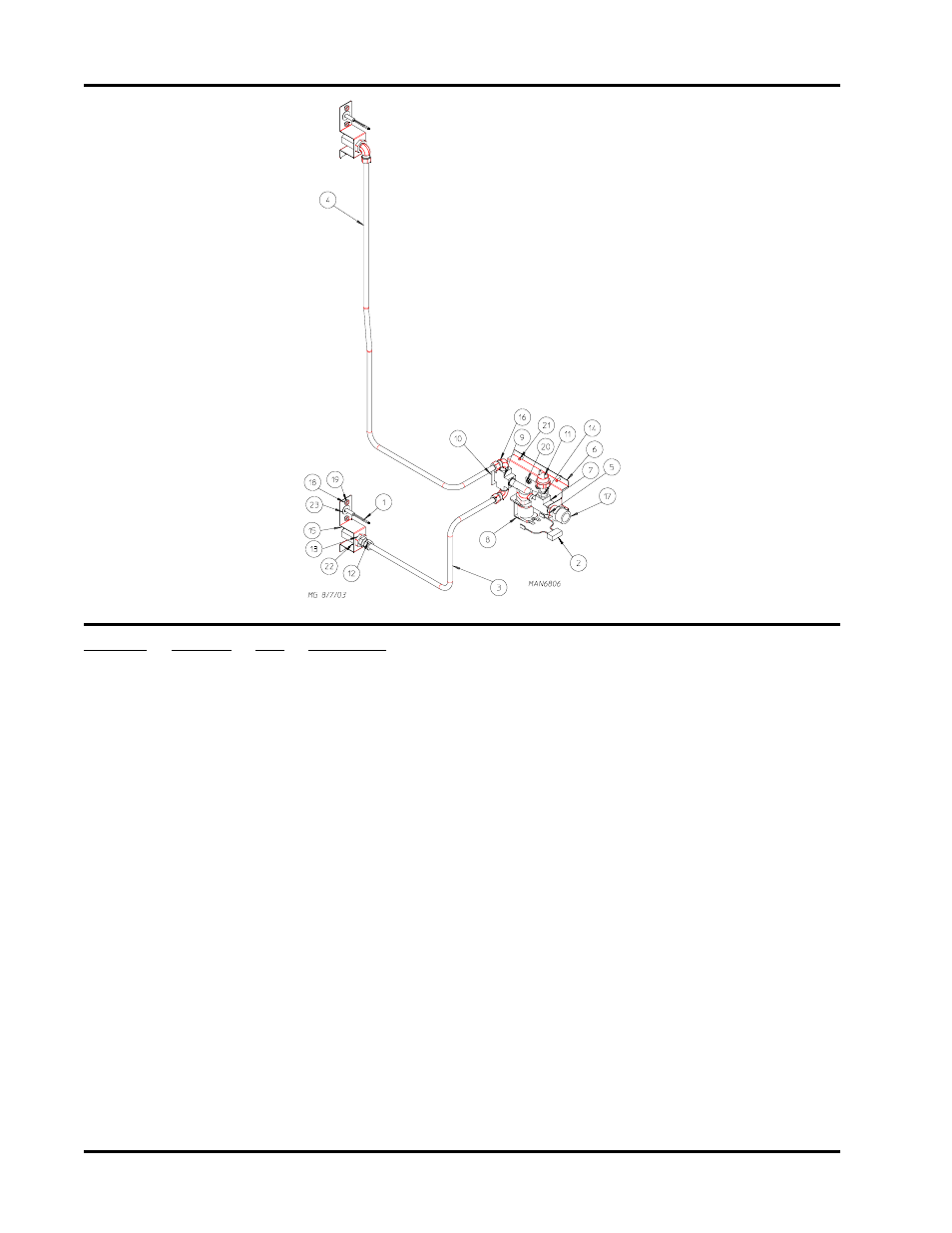

S.A.F.E. System Assembly
