8.1 Connecting Cameras to the DVR

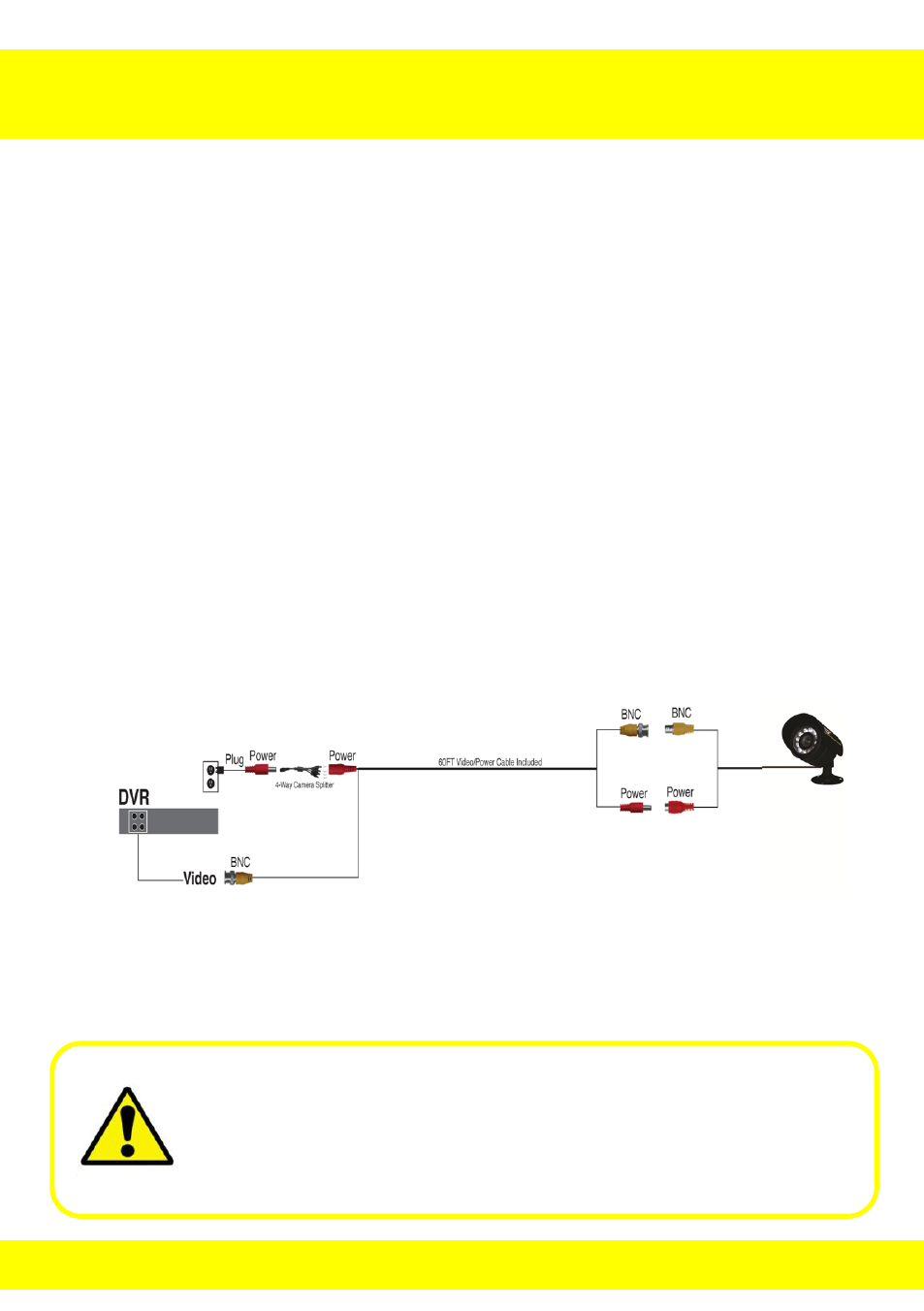

1. Your DVR system comes with one 60 foot coaxial cable per camera.
Connect each cable to a camera using the BNC connectors (yellow
connector) and the DC connectors (red connector).
2. Plug the other end of the cables into the video input ports on the
back panel of the DVR.
3. Connect the provided four-way power splitter cable into the DC
connectors of the cables.
4. Plug the power splitter into the camera power supply.
5. Plug the camera power supply into an available 110/220V wall outlet
or uninterruptable power supply .
Ensure all cameras are working (prior to mounting the cameras)
by connecting them as described in the section above. Once all
cameras are confirmed to be fully operational, you can run the
cables and mount the cameras at their final locations.
