Night Owl L / TL / P / WMC Series Manual
5

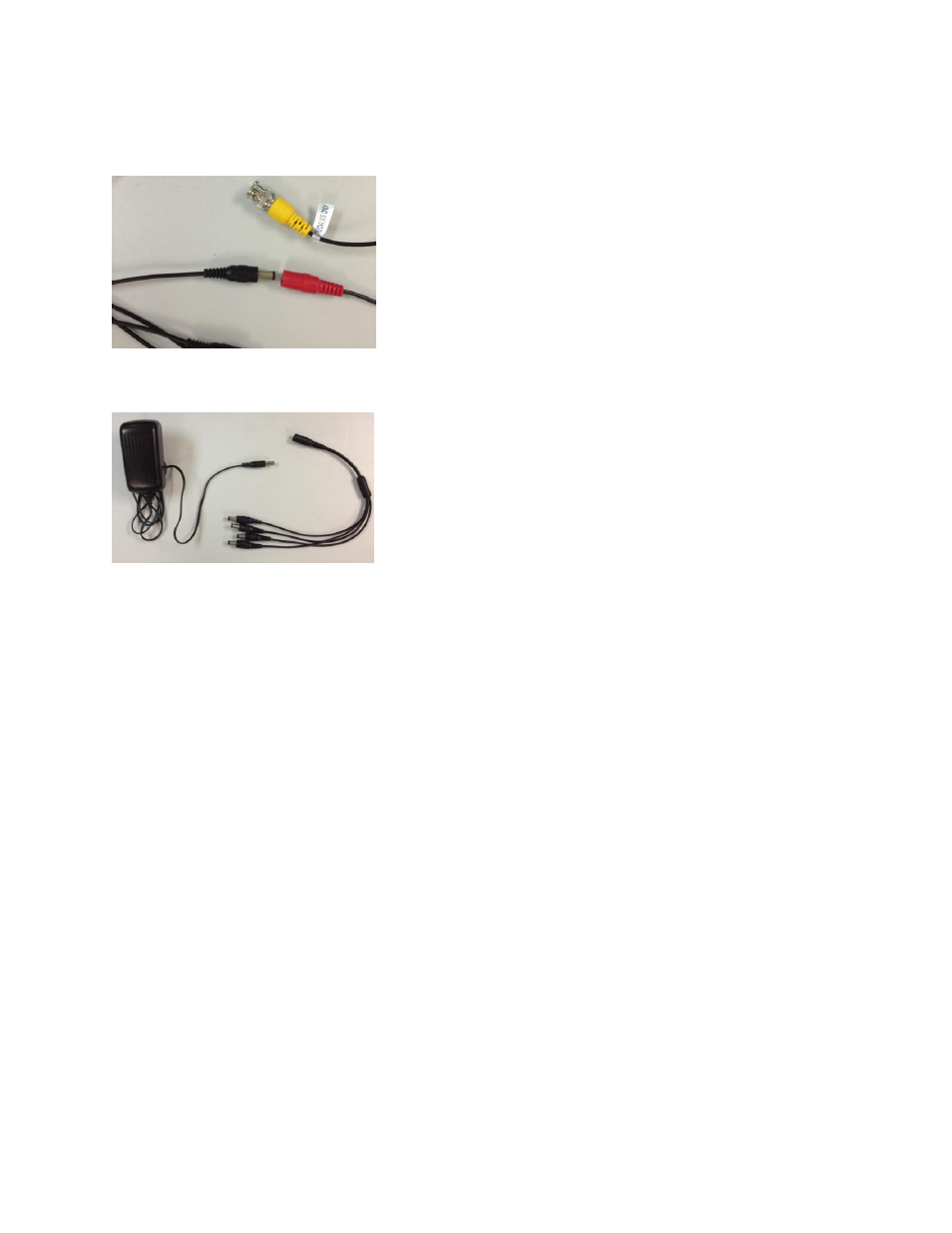

Step 4: Powering Up the Cameras, DVR, and Monitor
Cameras - Plug the other ends of the 60
’ video extension cable into the four-way power
splitter
Connect the single end of the splitter to the Camera Power Supply
Plug Camera Power Supply into a wall socket or surge protector.
DVR
Plug DVR power connector into the port on back of DVR then plug the DVR Power
Supply into a wall socket or surge protector. Make sure your monitor or TV is powered
up. The Night Owl logo will appear followed the Startup Wizard or by a Live Feed. If you
don’t see a live feed for all of your cameras, check the cables and connections and try
again.
