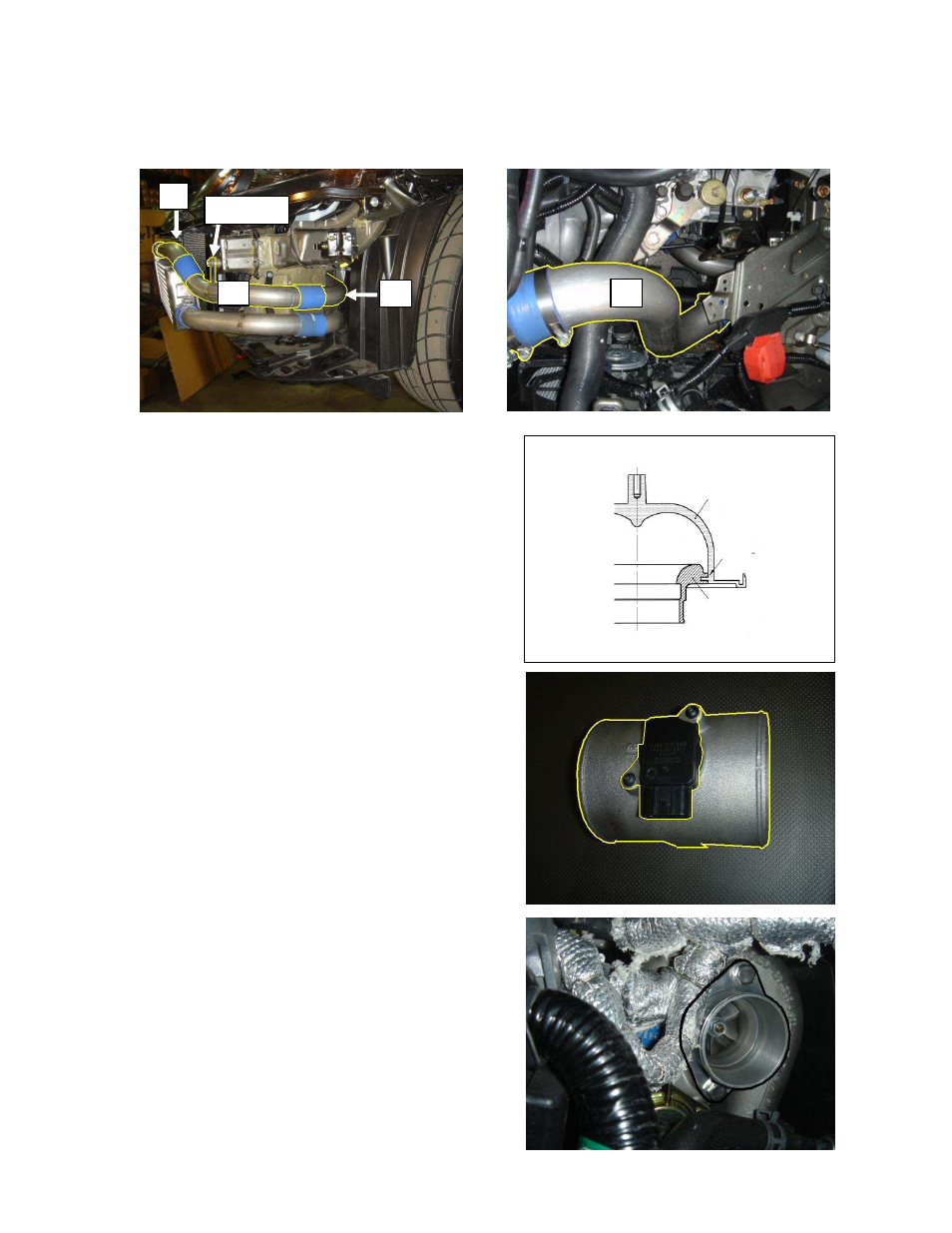

(4) Install compression pipe C-5 ～ C-8 between intercooler and throttle body.
Using provided hose and clamps.
(Parts used #11,12,13,14,34,36,37,41,42,43)
3-12 Airinx Installation
(1) Remove the top bolt on the Airinx air filter and
remove the outer frame, Install the provided
hose adapter to the inner frame of the Airinx.
(Parts used #15,16)
(2) Reinstall the outer frame and secure it with
the top bolt.
(5) Remove the factory Airflow meter off from the
air cleaner box and install the Airflow meter to
the provided air flow meter adapter.
(Parts used #17,68)
※ The O-ring in the Airflow meter will be
reused. Apply some grease on the O-ring
on the Airflow meter, and make sure not
to damage when installing.
(6) Install stud bolts on to the inlet of the turbo,
and install suction adapter using provided
gasket.
(Parts used #6,47,76,)
Main
Tabs
Hose Adapter
C-8
C-5
C-6 C-7
Stock bolt
