Product Specifications
Mechanical
Dimensions
■ Height: 9.25 in.
■ Width: .08 in.
■ Depth: 9.5 in.
■ Weight: 0.6 lbs.
Interfaces
■ Craft: DB-9 RS-232 Electrical Interface (Async)
■ Admin: DB-9 RS-232 DTE Electrical Interface (Async
with Modem Control Signals)
■ Network Management Port: DB-9 RS-232 DTE
Electrical Interface (Async)
■ Ethernet: 10Bt interface
■ MJ/MN/CR Audible and Visual Alarm relay contact
closures
■ 16 External Alarm inputs
Regulatory Standards
■ NEBS
■ GR-1089 CORE
■ GR-63 CORE
■ NRTL Listed
■ FCC Part 15
Management
■ Remote management through SNMP and TL1 and
Telnet
■ Ethernet interface for SNMP, TL1 and Telnet
■ Local Craft, ADMIN and NTWK management ports
Total Access 5000 System Control Module
Security
■ Non-volatile System Event Log for security access
and administration tracking.
■ Password Aging
■ Account Expiration
■ Account Lockout
■ Complex Password Enforcement
■ Security Advisory Warning Banner (full page)
■ RADIUS Remote Authentication
■ Trusted IP Client Restriction
■ TL1 message Log
■ “Challenge Key” Emergency Entry Port
Environmental
■ Operating Temperature: -40°C to +65°C
■ Storage Temperature: -40°C to +70°C
■ Relative Humidity: Up to 95%, non-condensing
Ordering Information
Part # Equipment
1187010L1 TA5000 SYSTEM CONTROL MODULE
61187010L1-8A March 2006
Copyright © 2006 ADTRAN, Inc.
All rights reserved.

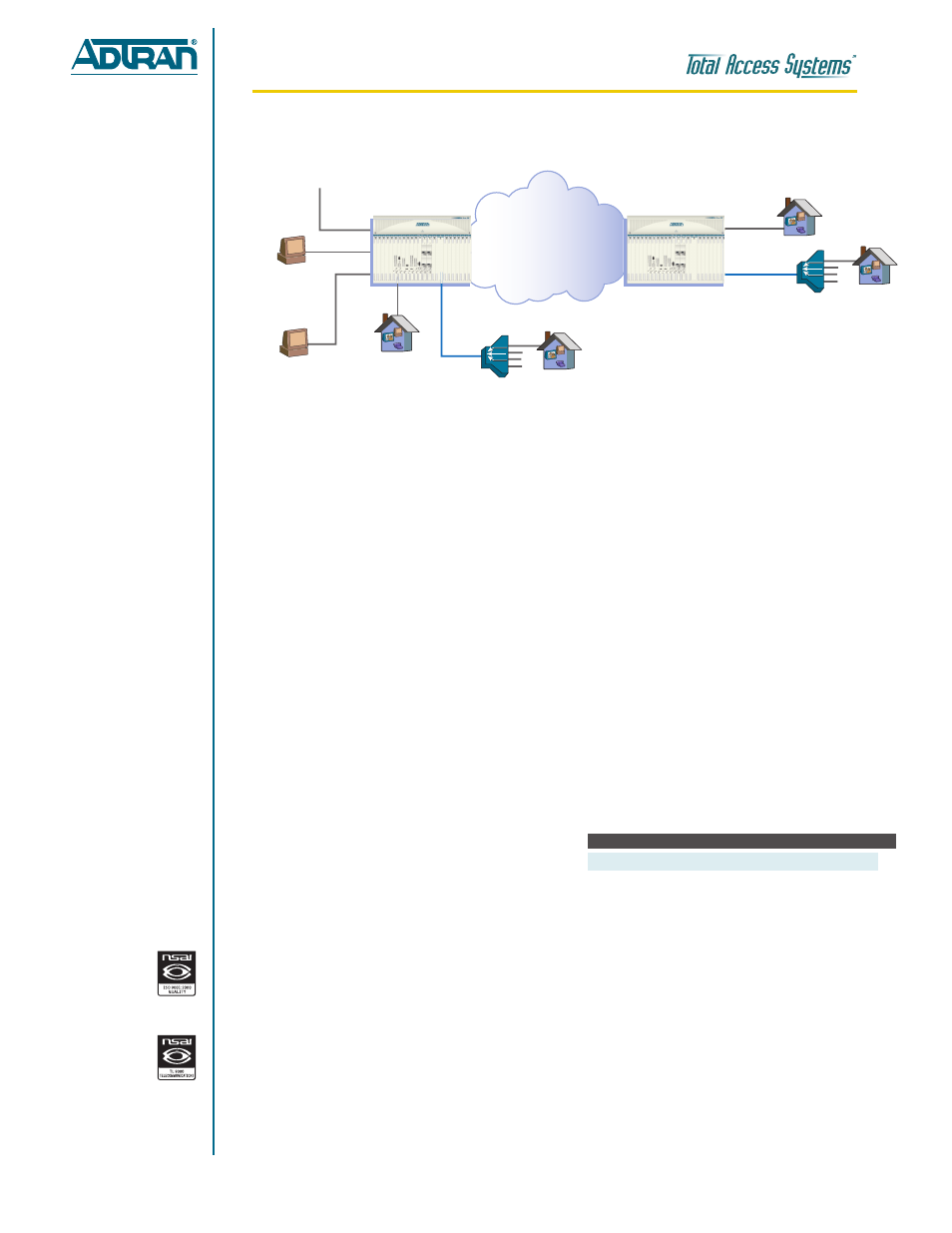

System Control Module
Ethernet
Central Office
POTS & DSL
Remote Terminal
Voice/Data/Video
GPON
POTS & DSL
Voice/Data/Video
GPON
10Base-T
RS-232C
SNMP
Management
Station
VT100
Terminal
Total
Access
EMS
