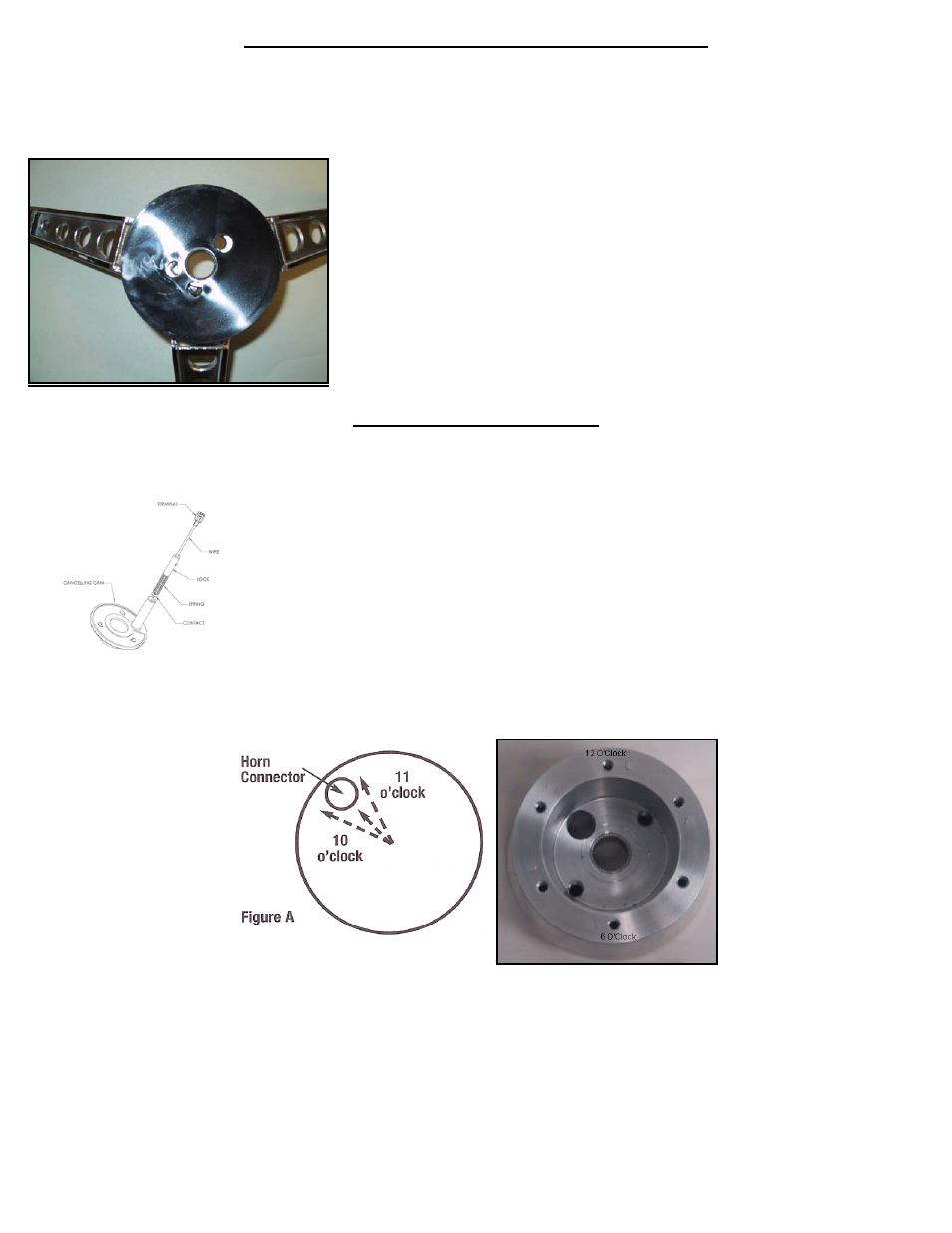

For wheels without a slot for the wire or Wooden wheels :
1) Turn wheel over to show the horn contact plates on the back of the wheel. (If it is an early wheel the turn signal tabs are at the
9 o’clock and the 6 o’clock position).
2) Place wheel spacer plate onto the wheel with the canceling cam hole approximately the 1-1:30 positions. This is where you
will need to drill a 3/8-diameter hole for the canceling cam stem and horn contact wire to go through. (See picture below)
Aftermarket Wheel Installation
1) Install horn contact kit into canceling cam tube and turn to lock.
2) Align steering wheel adapter so that the canceling cam hole is at approx the 11 O’clock position and that one of the steering
wheel mounting holes is at the 12 O’clock position.
3) To install the wheel adapter run the horn contact wire through the hole for the canceling cam and place the adapter on to the
splined column shaft.
4) Tighten the adapter-retaining nut until the adapter is approximately 1/16” away from the column shroud.
