Page 21
14
3.4

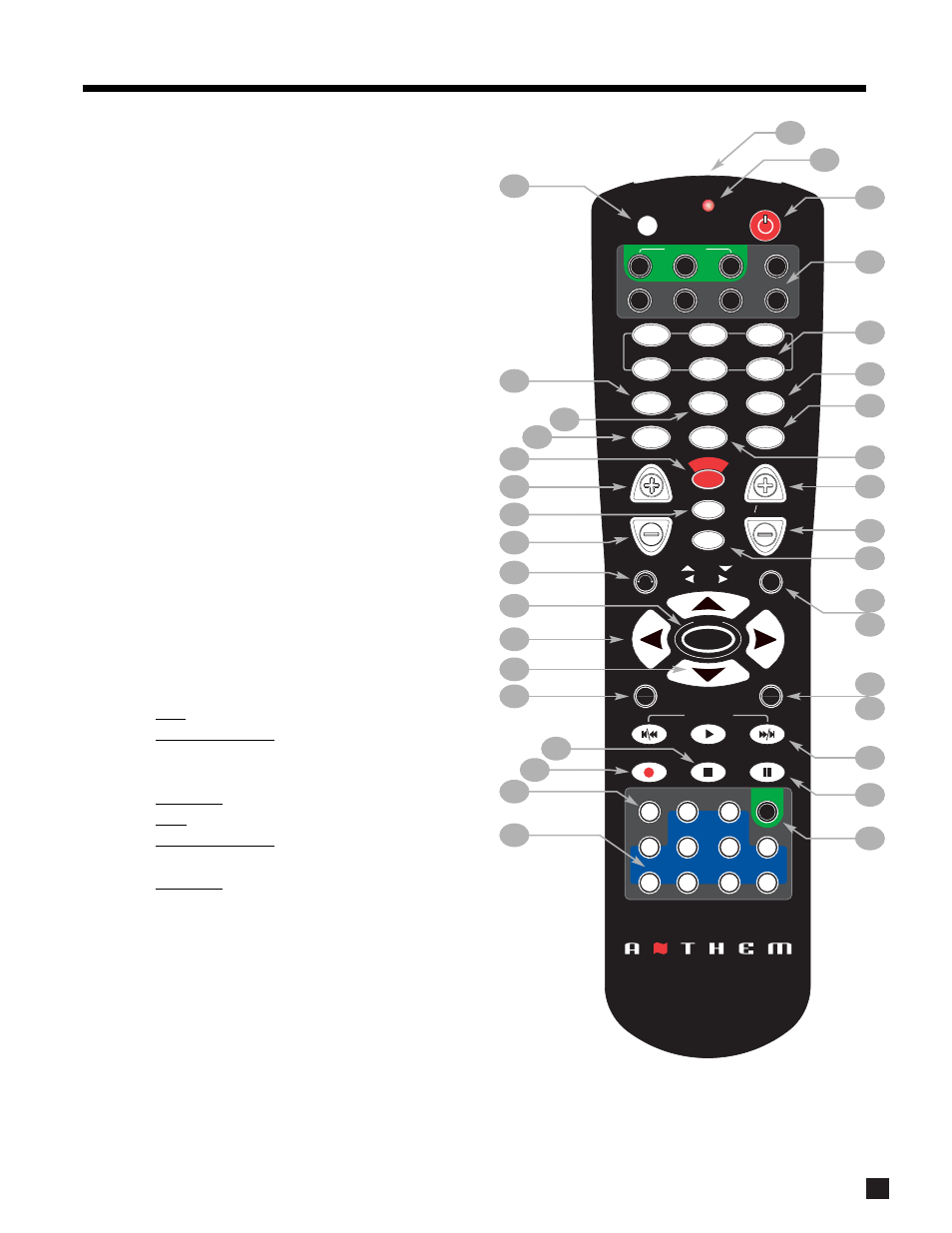

REMOTE CONTROL LAYOUT
1 – IR Transmitter (front face)
2 – Transmission Indicator LED (red)
3 – Power ON when in MAIN, ZONE2, or ZONE3 personality
Power ON/OFF for other components (see #4)
Note: This does not turn the AVM 20 off (see #31)
4 – Path / Component ‘Personality’ selection
5 – FM • AM Preset selection (6)
6 – Selects Tone Bypass
7 – Mode setting
8 – Dynamics setting
9 – FM • AM Preset Station Up
10 – FM • AM Preset Station Down
11 – THX Options settings
12 – Center Channel setting for Level / Bass / Treble
13 – Back (for Setup)
14 – Subwoofer / LFE Level settings
15 – Setup (Press & Hold for 3 seconds)
16 – Source Seek
17 – Balance setting
18 – RECORD Path selection (Must be in MAIN – see #4)
19 – Source selection (10 inputs)
20 – Copy MAIN when ZONE2, ZONE3, or RECORD is selected
21 – Bass setting
22 – Treble setting
23 – Surrounds / Rears setting for Level / Bass / Treble /
Balance
24 –
• Tune for FM • AM
• Setting Adjustment for Mode; DD Dynamics; THX
Options; Surround Mode Level / Bass / Treble; Path
Bass / Treble; Timers; Display Brightness
• Navigation for Setup
25 –
• Seek for FM • AM
• Setting Adjustment for Surround Mode Balance;
Path Balance
• Navigation for Setup (North / South / East / West)
26 – Status / FM • AM Direct Entry / Setup selection
27 – Fronts / Headphones setting for Level / Bass / Treble / Balance
28 – Volume Down
29 – Sleep Timer selection / Timers setting
30 – Volume Up
31 – Power OFF when in MAIN, ZONE2, or ZONE3 personality
32 – Mute
33 – Front Panel LED / Display Brightness setting / Audio Group Delay
34 – On-Screen Display
35 – Learn (for customization of remote)
See section 6 for complete information on operation of the Remote Control.
3. PANELS / DISPLAY/ REMOTE LAYOUT
continued …
SLEEP
INPUT
FRT
CTR
THX
TIMERS
STATUS
PIP
SWAP
MOVE
SSP SOURCE
COPY
AUX
TAPE
DVD
TV
SAT
VCR
CD
DVD
TV
SAT
VCR
BASS
TREBLE
BALANCE
2-Ch
CD
REC
MAIN
Z2
Z3
SSP PATH
DYN
AMICS
VOLUME
CH PRE-SET
FM/AM PRE-SETS
TUNE
SEEK
SOURCE SEEK
LEARN
ENTER
MUTE
7
8
0
9
SELECT
SUB
LFE
FM
AM
SUR
RR
SSP OFF
DISPLAY
TO
NE BYPASS
MODE
ON
SCREEN
INFO
GUIDE
BACK
SETUP
1
2
3
4
5
6
POWER
6-Ch
SSP
PATH
SSP OFF
LAST
2
1
3
4
6
7
8
11
16
17
18
19
35
20
34
26
31
23
21
27
28
33
29
22
12
13
14
15
9
5
10
25
24
30
32
