Ridetech 11050199 - Manual (Page 11)

Part # 11050709
58-64 Chevy Impala Rear RQ Series Shock Kit
Shock:
2 22589999 RQ Smooth Body Shock Cartridge
2 70011139
5/8” ID Shock Bushing
2 70011138
3/4” ID Shock Bushing
2 90002103 5/8” ID Shock Sleeve
2 90002068 Wide Trunnion
Hardware:
4 99311001 5/16” x 1” USS bolt Shock to frame
4 99312003 5/16” USS Nylok nut Shock to frame
8 99313002
5/16” SAE flat washer
Shocks to frame
2 99502002
½” SAE Nylok Nut
Shock to lower stud
2 99503001 ½” SAE flat washer Shock to lower stud

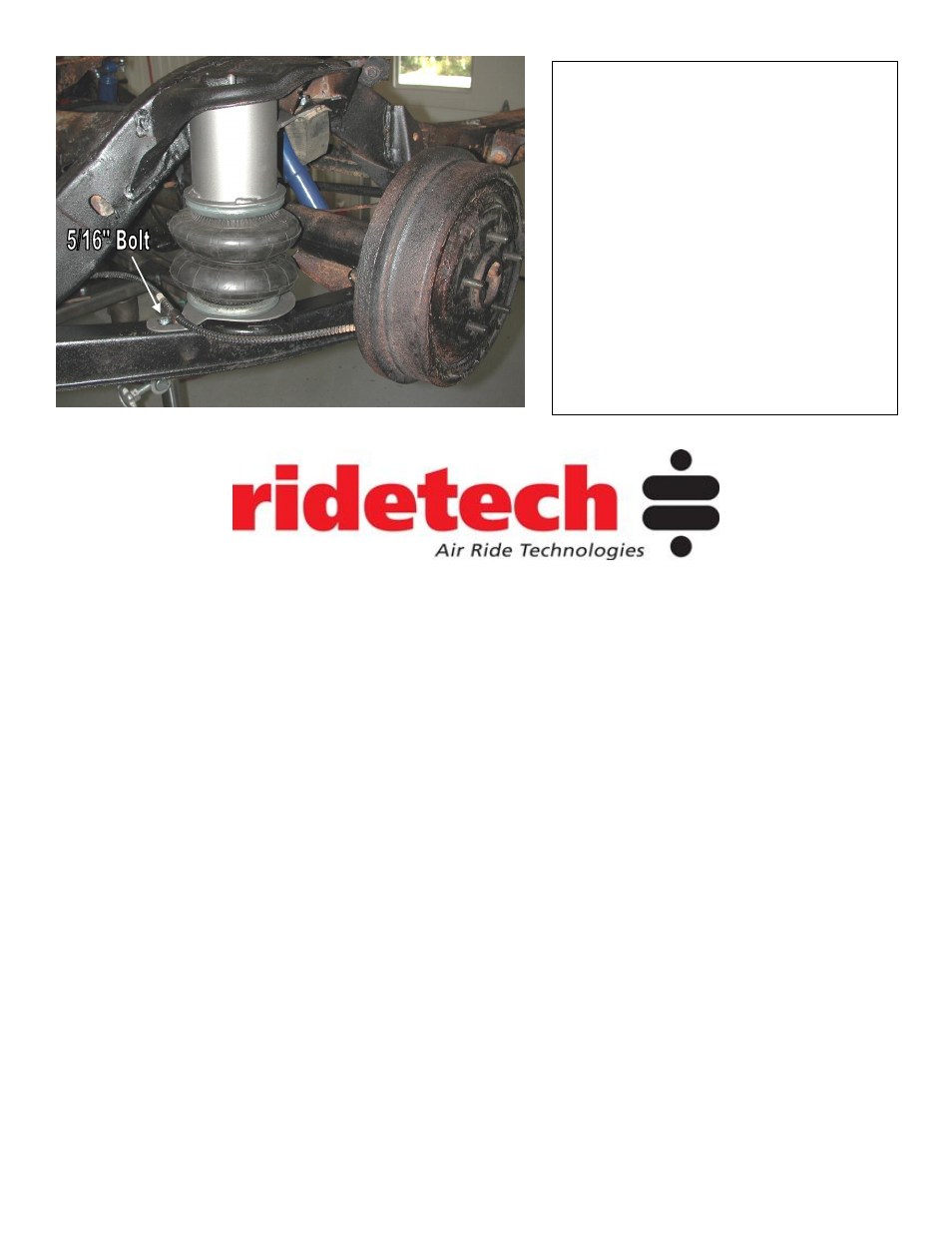

11. The hole in the tab on the lower
mount will align with the parking brake
cable clamp. It will be held tight with
a 5/16” x 1” bolt, lock washer, and flat
washer.
12. Make sure that the air spring
cannot rub on anything at anytime.
This will result in air spring failure and
is a not a warrantable situation.
13. Ride height on this air spring is
approximately 5” tall, but may vary to
driver preference.
