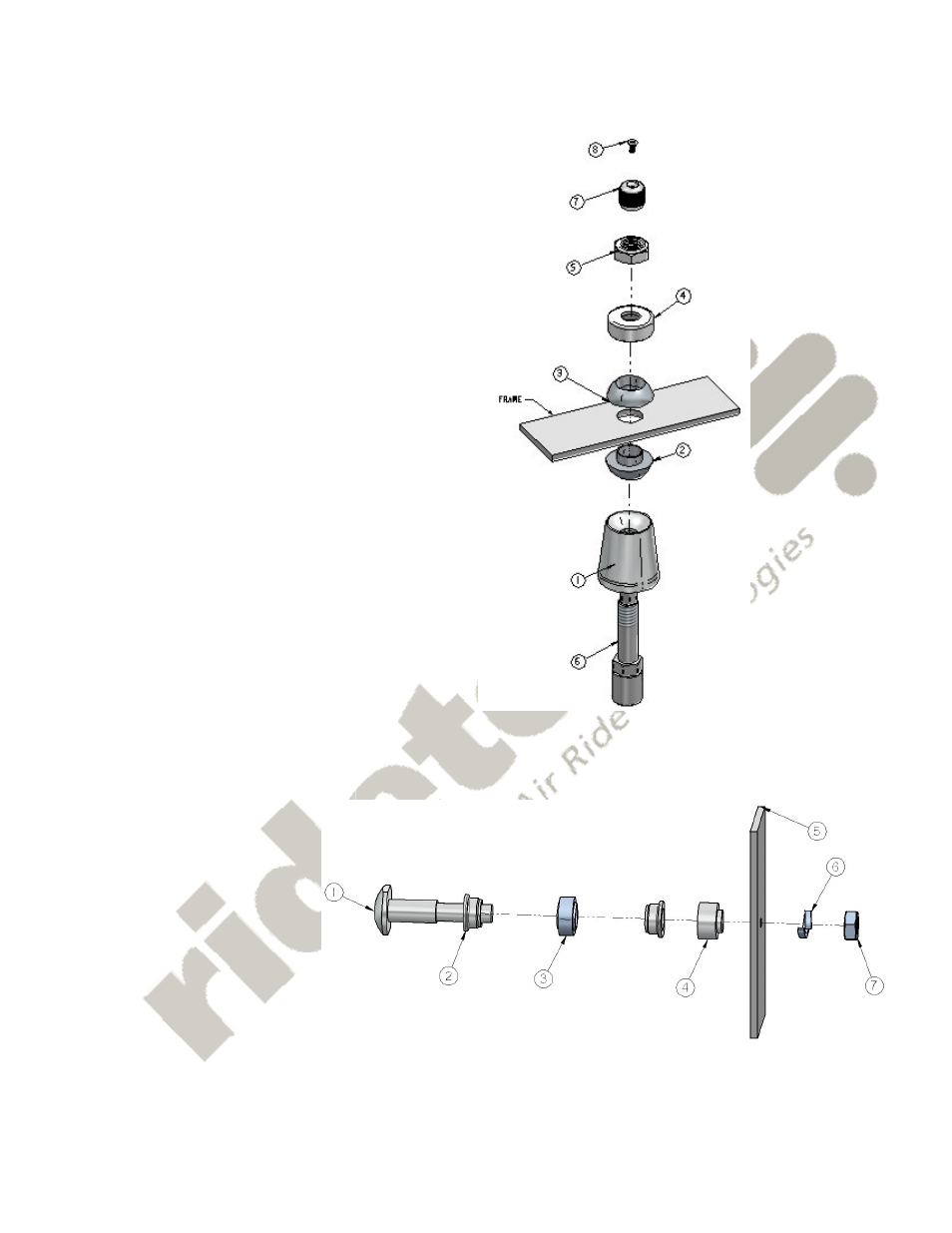

Upper Shock Stud Assembly

1. Stud top base

2. Delrin ball lower half

3. Delrin ball upper half

4. Aluminum cap for Delrin ball

5. 9/16” SAE Nylok nut

6. Stud top

7. Black adjustment knob

8. Screw


Cantilever Pin Assembly

1. Cantilever Pin

2. Aluminum Bearing Spacer

3. .625” Bearing

4. Control Arm Spacer

5. Control arm tab

6. ½” Lock Washer

7. ½” SAE Nut
