MuscleBar Installation

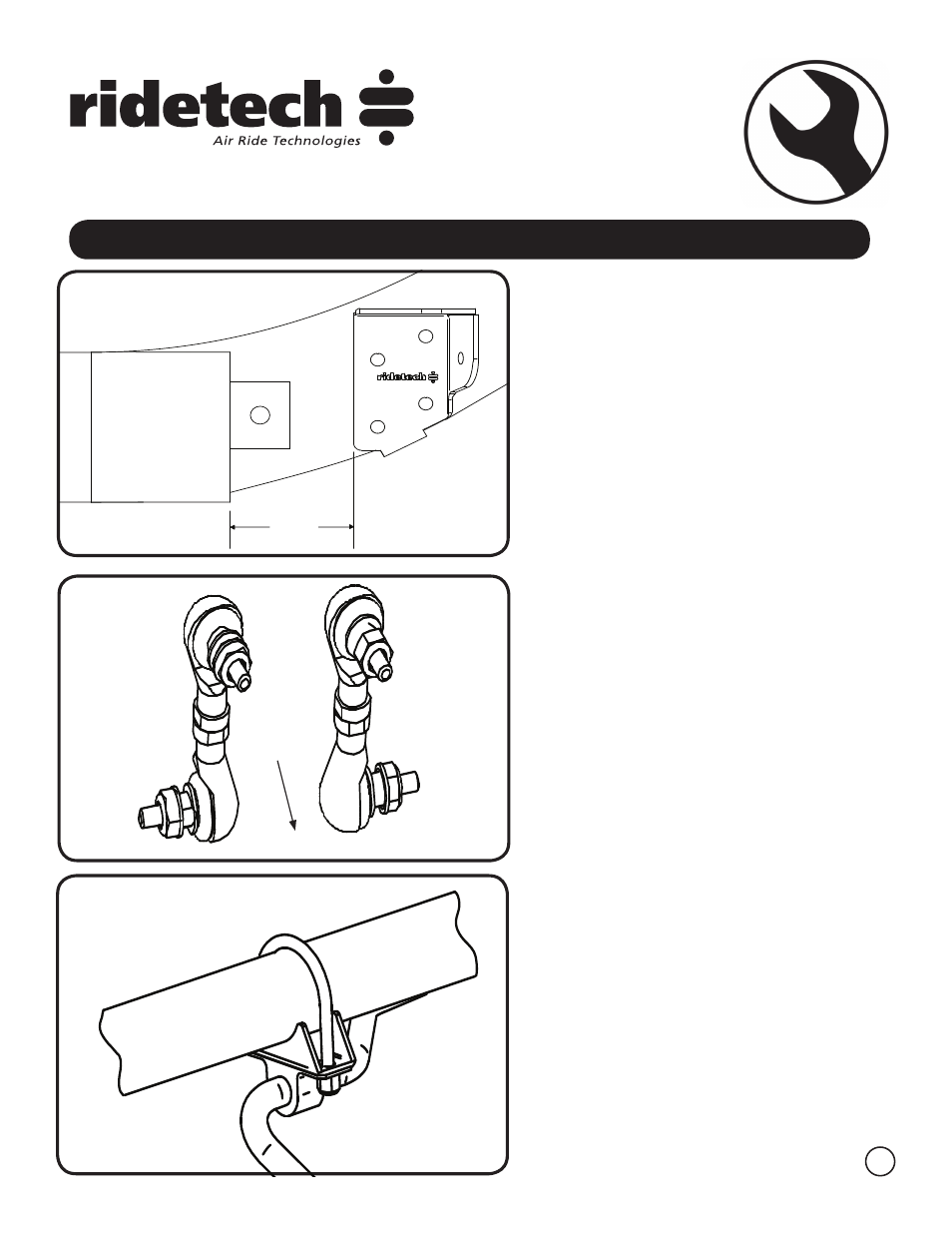

4b. This illustration shows the frame brack-
et as looking from the side. With the frame
bracket held in place mark the (5) mounting
holes. Drill these holes with a 5/16” drill bit.
Attach each bracket with (5) 3/8-16” thread
forming bolts.
5. Install the PosiLinks in the frame brackets
and in the CENTER hole in the MuscleBar us-
ing a 3/8” SAE Flatwasher on each side of the
bracket and on each side of the mount on the
MuscleBar. The Posilinks are installed with the
stud on the upper Posilink pointing forward
and the stud on the lower Posilink pointing to
the outside of the car. Install the 10mm Nylok
on Posilink and tighten nut.
6. Tighen the 7/16” Nylok nuts on the U-
bolts making sure the Musclebar is centered
on the rearend.
5.
5 5/16”
4b.
DRIVERS SIDE VIEW
5
DRIVER PASSENGER
FRONT
6.
