MuscleBar Installation

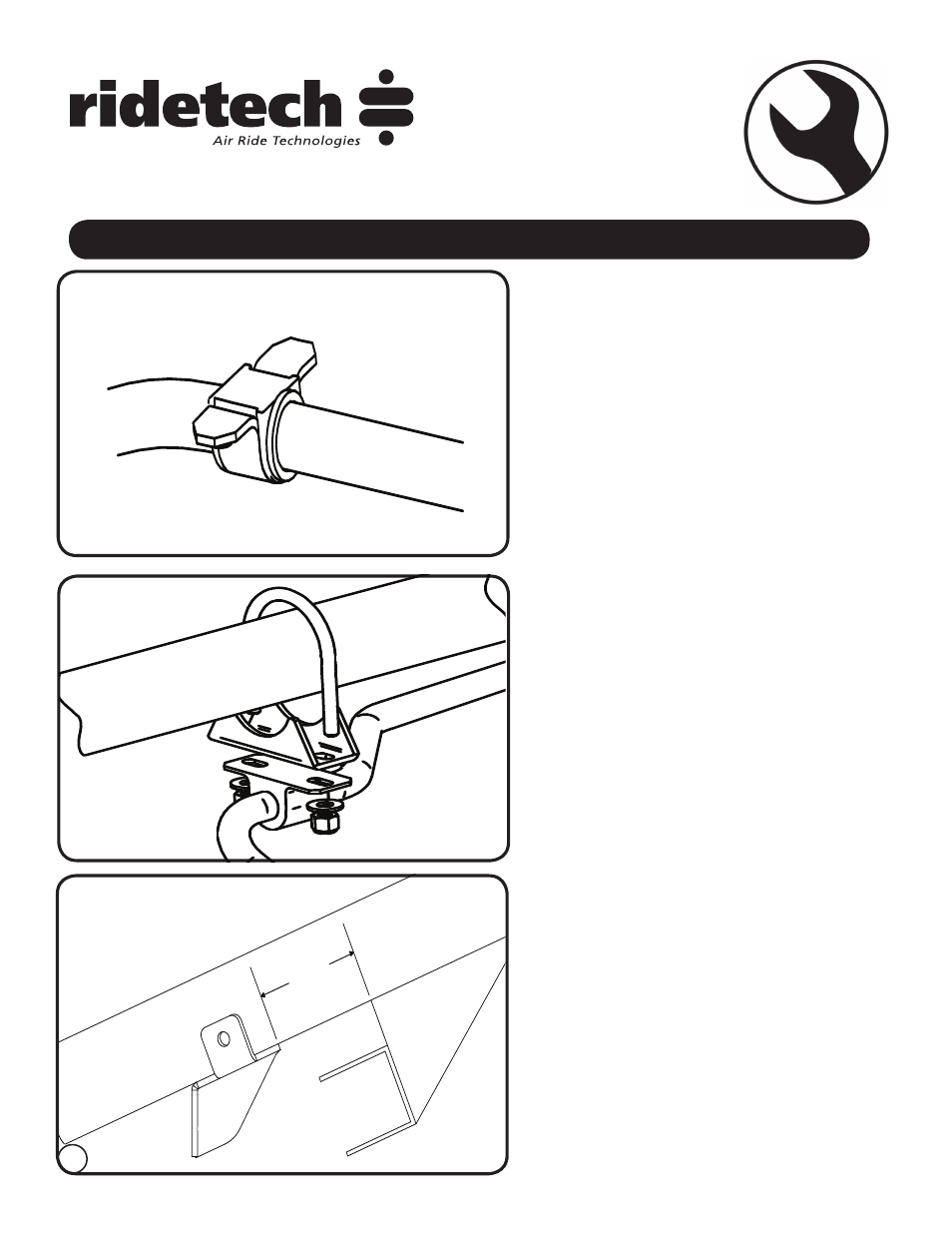

2. Install the swaybar bushings and straps
onto the MuscleBar. The bushings and straps
get installed on the outer ends of the Muscle-
Bar against the stop rings.
3. Install the U-bolts over the axle, slide the
saddles onto the ubolts along with the Mus-
cleBar. The MuscleBar should be centered on
the rearend. Install the 7/16” washer and Ny-
lok nut loosely for now. DO NOT TIGHTEN
NUTS YET.
Note: It may be necessary to trim the panhard
mount to get the saddle to sit in place prop-
erly on the axle tube. The saddle should be
level with the ground.
Note: With the arms parallel with the ground
the rear of the Muscle bar should be angle
down towards the ground.
4a . There is a Driver and Passenger frame
bracket. In illustrations 4a & 4b, the drivers
side is shown. The bracket gets located by
measuring from the lower control arm frame
bracket. The frame bracket is located 5 5/16”
(measuring towards the rear of the car) from
the factory control arm bracket. This measur-
ment is taken right where the factory bracket
attaches to the frame.
3.
4a.
2.
5 5/16”
DRIVERS BOTTOM VIEW
4
