12. Bolt the upper bar mount to the
factory upper shock mount using
four 7/16” x 1 ¼” bolts, Nylok jam
nuts and flat washers.
13. Bolt the large end of the lower
bar (longer one) to the factory leaf
spring hanger using the factory
hardware. Bolt the other end to the
lower bridge using a 5/8” x 2 ¾”
bolt and Nylok jam nut.
14. The upper bar will bolt in using
5/8” x 2 ¾” bolt and Nylok nuts.

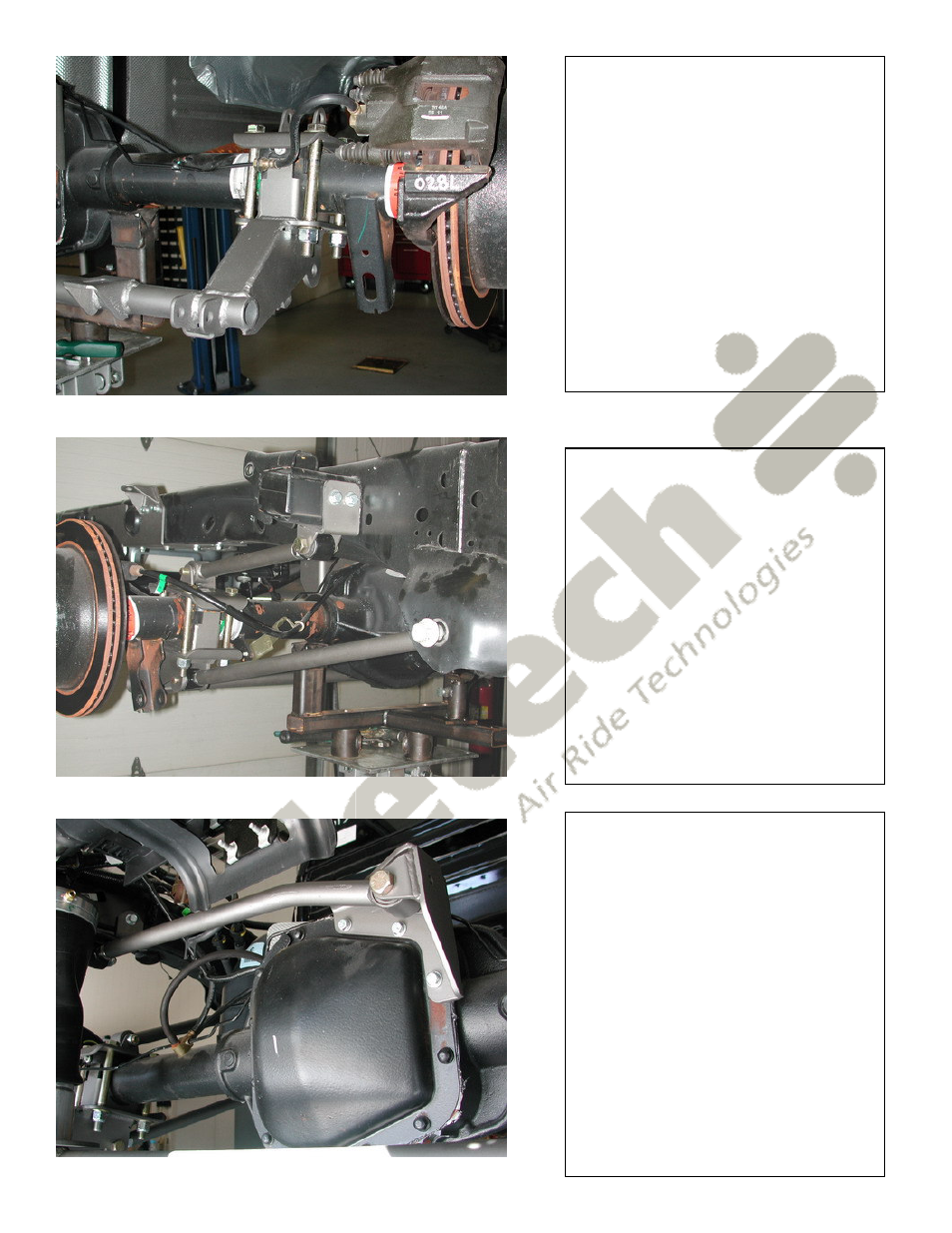

10. Bolt the lower bridge to the
factory leaf spring hanger using
5/8” x 8” bolts, Nylok nuts and flat
washers. The upper bar mount will
be on top of the axle.
11. The brake line on the driver
side must be bent in to clear the
panhard bar. The brake line frame
mount must be relocated to the bed
brace.
15. Bolt the panhard bar axle
bracket to the axle using three
5/16” x 1” bolts, lock washers and
flat washers.
16. Bolt the panhard bar to the
axle and frame brackets using 5/8”
x 2 ¾” bolts and Nylok jam nuts.
The bend in the bar will go toward
the axle mount and point up.
Note: Tighten all 4 link and
panhard bar bolts with the
suspension at ride height. Ride
height will be with the air spring at
about 10.5” tall.
