Present allows you to permanently turn off a stage. A check mark tells the controller to activate the
stage as per the configuration. No check mark means this stage is always OFF.
Enable First-Gear Lockout disables the stage until the RPM has exceeded the RPM Cutoff at least
once since it was armed.
Input #2 will determines what effect this input will have
on the applicable stage. Enable allows the stage to
function normally while Disable turns the stage off. If you
are not using this input set it to be ignored by.

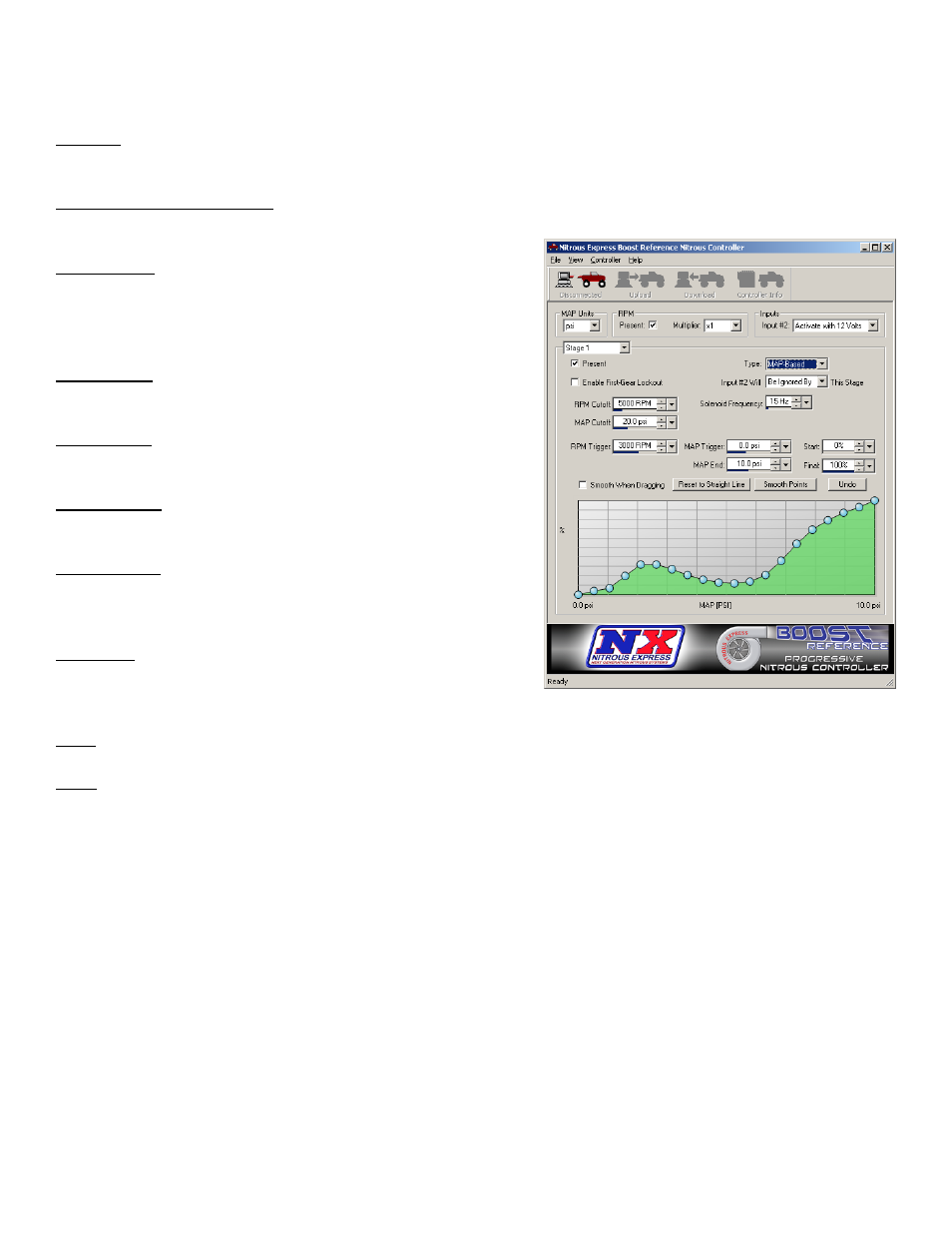

RPM Cutoff allows you to set the upper RPM threshold
above which the nitrous will be turned off.
MAP Cutoff allows you to set the upper boost threshold
above which the nitrous will be turned off.
RPM Trigger allows you to set the minimum RPM
required before the Nitrous can be triggered.
MAP Trigger sets the boost pressure threshold that the
controller must see before starting the ramp. It also
defines the starting point of the ramp.
MAP End sets the build range for the ramp. Between
MAP End and MAP Cutoff, the nitrous % remains at the
Final setting.
Start sets the start percentage of the stage.
Final sets the final percentage of the stage. The ramp will maintain this level until the RPM cut-off is
reached or the stage is deactivated by the TPS or RPM window.
3
3
.
.
5
5
U
U
p
p
l
l
o
o
a
a
d
d
/
/
D
D
o
o
w
w
n
n
l
l
o
o
a
a
d
d
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
a
a
t
t
i
i
o
o
n
n
DO NOT connect the controller to your PC until you have installed the software.
To connect the controller to your PC, use the USB cable supplied with the kit. The controller is
powered by the USB port on your computer and as such does not require any additional power
sources. Plug the USB cable into an available port on your PC. Once the software has identified the
NX MINI-CONTROLLER, the buttons will become fully visible and the connected ICON will be green.
Note: If you are using a USB hub, it must be capable of providing 100mA of current to power the
controller.
NX - rev A
