Nitrous Express Mini Digi-Set User Manual

Nitrous Express For the car

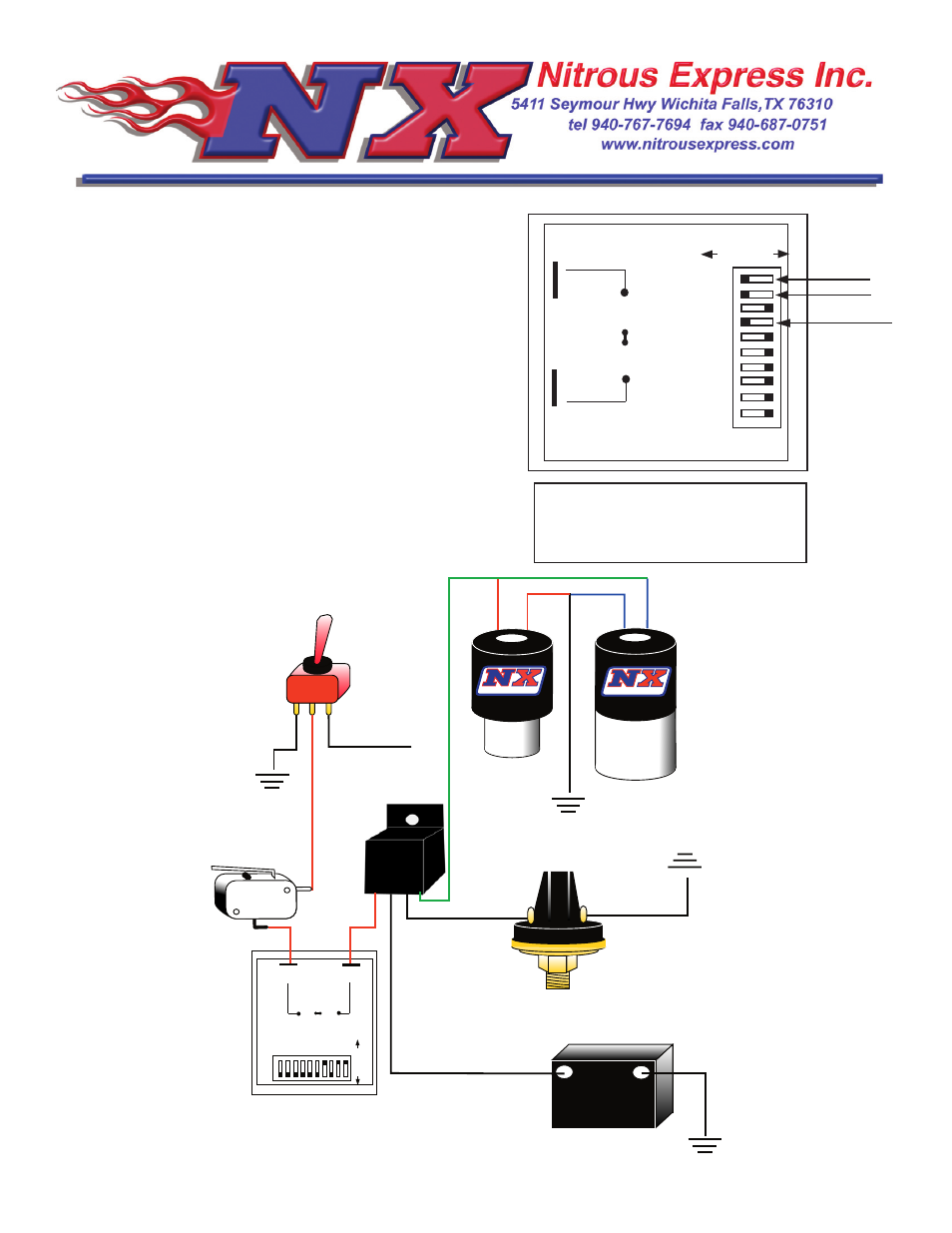

This time delay switch will allow you to activate a second

stage of nitrous as a function of time.

Use the rocker switches on the top of the timer to set the

amount of delay (0.1 to 102.3 seconds).

If using an RPM switch, connect the yellow wire from the

RPM switch to the white wire of the relays.

If using a push button, connect it in place of the throttle

switch shown.

CAUTION: The time delay switch is only rated for 10

amps. Using the relay is a must.

�

��

�

��

�

��

�

NITROUS EXPRESS

NEXT GENERATION NITROUS SYSTEMS

��

NITROUS EXPRESS

NEXT GENERATION NITROUS SYSTEMS

��

�

��

��
��

��

��
��
��
��

��
��
��

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

�

This time delay switch is set to

activate a second stage of nitrous

after a delay of 1.10 seconds
