Nitrous Express Billet Bottle Bracket (11108B) User Manual
Page 2
Mounting the Bottle
The bottle should be mounted in the trunk area or outside of the passenger
compartment. If this is not possible or practical a NHRA approved blow down tube
and vent fitting (PN 11708 and 11709) must be installed. The best positioning of

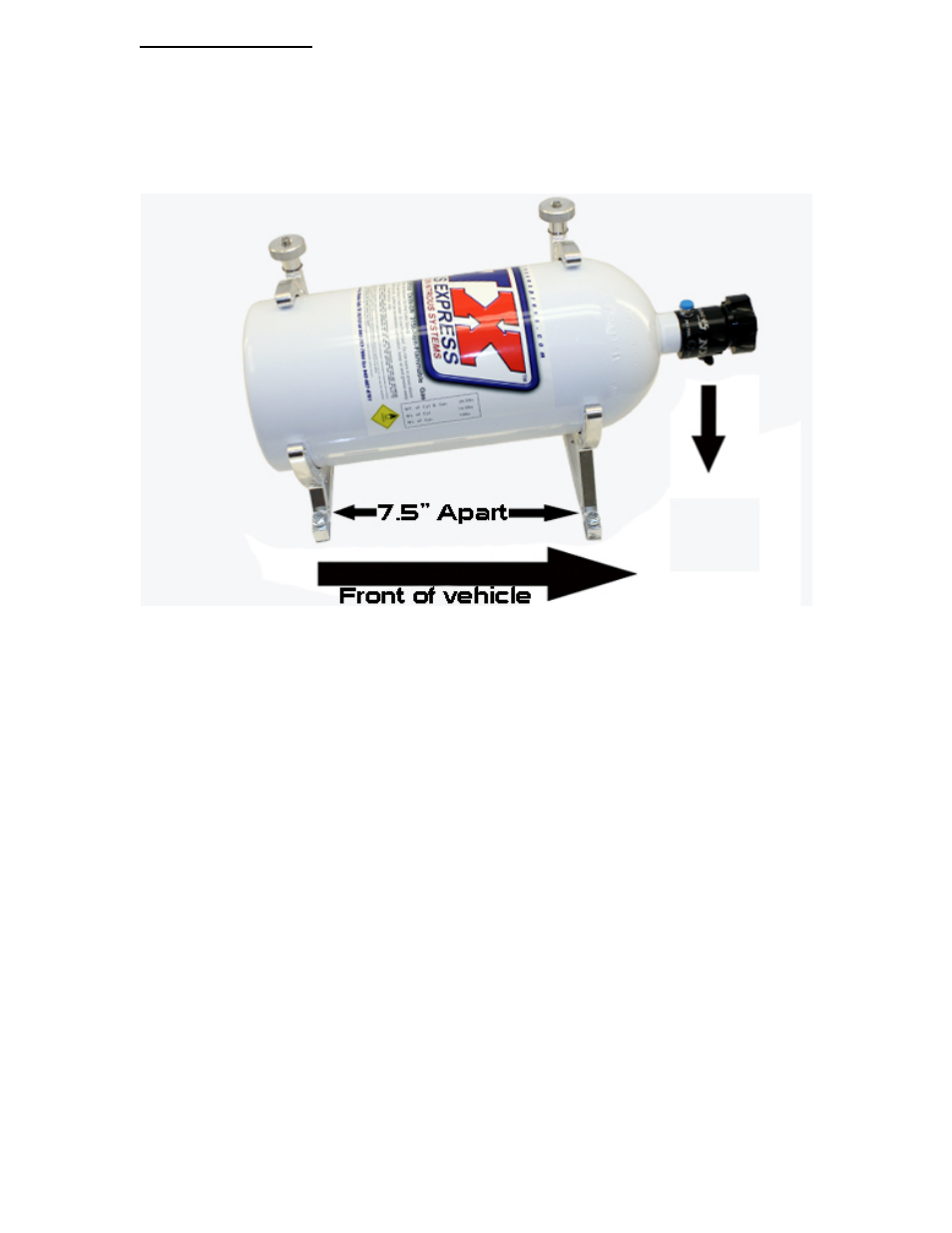

the bottle is shown in DIAGRAM A.
DIAGRAM A
Mounting the bottle in this manner will allow the internal siphon tube to be covered
with liquid nitrous at all times and properly supports the bottle.
